Description
Product Details

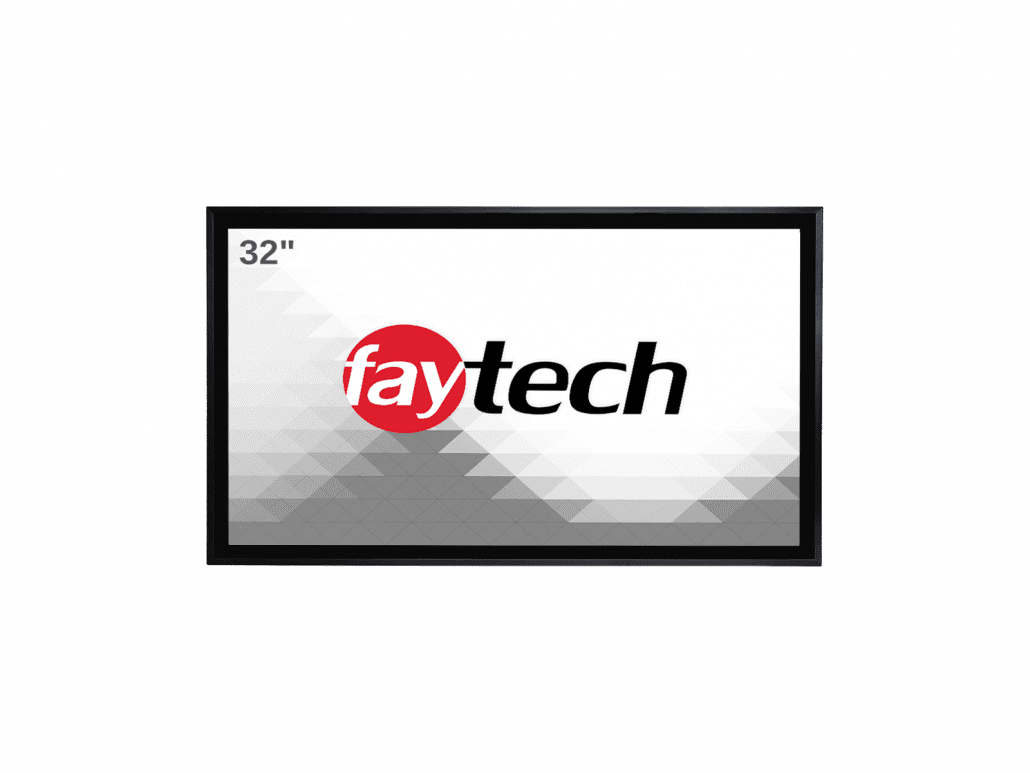

Model number | FT32N4200CAPOB |
Global article code | 3030510405 |
European article code | 1010502388 |
EAN number | 6920734003204 |
IP Rating
IP 65 front / IP40 back |
PC System
CPU | Intel® Pentium® QuadCore N4200 |
GPU Graphics | Intel® HD Graphics |
Audio | Realtek ALC3251 Audio CODEC |
Memory | 4GB DDR3L non-ECC (max. 8GB) |
Switchable Storage | faytech Industrial 128GB SSD |
Network | 2x Realtek PCIe GB LAN 8111G (1x optional with POE); W-LAN 2x Realtek PCIe GB LAN 8111G (1000Mbps); M.2 E-key Wi-Fi module |
Driver Support | Windows 10 + Linux Ubuntu |
Preinstalled OS | Linux Ubuntu |
LCD Panel
Screen diagonal | 31.5″ / 80.0 cm |
Display active screen size | 69.84 cm x 39.29 cm (27.49 in x 15.46 in) |
Aspect ratio | 4:3 |
Physical resolution | 1920×1080 px |
Maximum showable resolution | 1920×1200 px |
Brightness | 350 (cd/m²) |
Contrast | 3000:1 |
Typical reaction time Tr/ Tf | 6/1 (ms) |
Visual angle horizontal/vertical | 178/178 (°) |
Backlight | LED |
Backlight lifetime | 30,000 (hours) |
Touch Panel
Touch technology | Projected Capacitive 10-Point Multitouch |
Touch lifetime | Unlimited |
Surface hardness | 7H |
Surface treatment | Anti-glare (chemical etching) |
Glass strengthening | Chemically Strengthened |
Operation/Mechanical
Operating temperature | -10 °C ~ +60 °C (14 °F ~ 140 °F) |
Humidity range | 10% – 90% RH |
Net weight | 14.50 kg / 31.966 lb |
Gross weight (incl. cartonage) | 20.50 kg / 45.194 lb |
Housing material | Aluminum |
Housing sizes | 768.0 mm x 475.0 mm x 80.0 mm (30.23 in x 18.70 in x 3.149 in) |
Clamp support | Yes |
cut-out for clamp supports (L X H) | 733.0 mm x 440.0 mm (28.85 in x 17.32 in) |
Amount of clamps required | 10 |
Mounting | VESA 400×300 |
Power
Power indicator | Green LED |
Power supply | 100-240V ACDC active switching; 24V DC-Out |
Working power | 24 V |
Power consumption | 94 W |
Standby power | 1 W |
Internal Connectors
1x SO-DIMM, max. 16 GB, DDR4 1866/2133 non-ECC, Single channel memory 3x RS232/RS485 COM connectors switchable in BIOS 2x LCD Backlight control/LCD panel voltage box 1x 5V/12V SATA power connector 1x 12V DC power connector (2-pin) 1x 4-pin SATA power connector 1x S/PDIF output pin header 1x 8-bit Digital I/O interface 1x Line-out / Mic-in header 1x Front Panel box header 1x Serial ATA 6Gb/s 1x MIPI CSI connector 1x LVDS box header 2x USB 3.0 box header |
External Connectors
1x 24V DC-In (4-pin) 1x W-LAN antenna connector (RP-SMA male) 4x USB 3.0 1x HDMI 1x DP 1x 10-PIN DIO as RJ50 1x COM port Full-PIN – RS232/485; 5V/12V 2x 10/100/1000Mbit RJ45 Ports 1x 2.5″ module slot, changeable SSD included |
Expansion Slots
1x mSATA full size (occupied by SSD) 1x M.2 E-Key Slot (occupied by Wifi card) 1x SATA connector 1x External PCIe x1 Straddle connector |
Included in the delivery
Power Supply (see Power section) Short Installation Manual W-LAN antenna (RP-SMA female) |
