Products Overview
The Safety technology is a component of all SIGMATEK’s complete automation systems. All Safety modules, such as S-DIAS Safety controllers and I/Os, as well as drives with Safety functions are seamlessly integrated into the entire system.
Drives
MDD 111-1 –
1-axis module for DIAS Drive 100 At 230 V AC: 6 A rated or 15 A peak output current At 400/480 V AC: 4 A rated or 9 A peak output current Control of servo, linear, torque and asynchronous motors Resolver, EnDat, Hiperface, Sanyo Denki and Sin/Cos encoders possible
MDD 121-1 –
2-axis module for DIAS Drive 100 At 230 V AC: 6 A max. total current or 18 A max. total peak current At 400/480 V AC: 4 A max. total current or 12 A max. total peak current Control of servo, linear, torque and asynchronous motors Resolver, EnDat, Hiperface, Sanyo Denki and Sin/Cos encoders possible

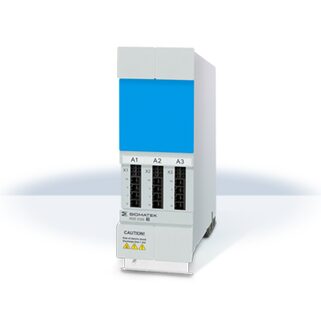

MDD 2100-DDD-00 –
3-axis unit, supply via DC bus Rated current: 3x 5 A Peak current: 3x 15 A Control of servo motors Single-cable solution: Hiperface DSL Safety integrated: STO, SOS, SS1, SS2, SLS, SSM, SMS, SBC, SBT, SLP, SP, SLI, SCA, SMA, SLA, SDI

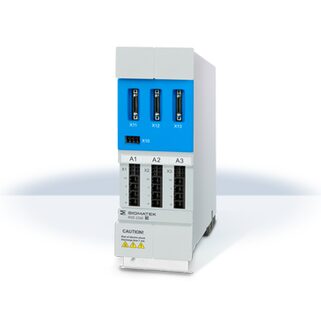

MDD 2100-DDD-03 –
3-axis unit, supply via DC bus Rated current: 3x 5 A Peak current: 3x 15 A Control of servo motors Single-cable solution: Hiperface DSL with universal interfaces for encoder variations: EnDat 2.1, Hiperface, Resolver, Sin/Cos, TTL, BiSS-C and Tamagawa Safety integrated: STO, SOS, SS1, SS2, SLS, SSM, SMS, SBC, SBT, SLP, SP, SLI, SCA, SMA, SLA, SDI
MDD 2200-HHH-00 –
3-axis unit, supply via DC bus Rated current: 3x 10 A Peak current: 3x 30 A Control of servo motors Single-cable solution: Hiperface DSL Safety integrated: STO, SOS, SS1, SS2, SLS, SSM, SMS, SBC, SBT, SLP, SP, SLI, SCA, SMA, SLA, SDI
MDD 2200-HHH-03 –
3-axis unit, supply via DC bus Rated current: 3x 10 A Peak current: 3x 30 A Control of servo motors Single-cable solution: Hiperface DSL with universal interfaces for encoder variations: EnDat 2.1, Hiperface, Resolver, Sin/Cos, TTL, BiSS-C and Tamagawa Safety integrated: STO, SOS, SS1, SS2, SLS, SSM, SMS, SBC, SBT, SLP, SP, SLI, SCA, SMA, SLA, SDI
MDP 101-1 –
Head station of the DIAS Drive 100 system (1-8 axes) Operated with 3-phase 230-480 V AC with 3 kVA rated power STO "Safe Torque Off" and SS1 "Safe Stop 1" (TÜV-certified) Excellent servo performance via the smallest controller cycle times (62.5 µs) 8 digital capture inputs for recording the actual position The MDP 101-1 power module is used for communication with the control and communication with connected axis modules over the bus. A real-time Ethernet VARAN interface is provided, Safety input, regen resistor and power filter are integrated. A DC link connection allows the coupling of additional servo drive systems.

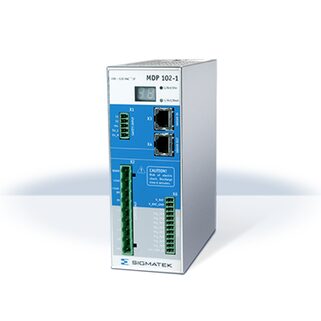

MDP 102-1 –
Head station of the DIAS Drive 100 system (1-8 axes) Operated with 1-phase 230 V AC or 3-phase 115 V AC with 2 kVA rated power STO "Safe Torque Off" and SS1 "Safe Stop 1" (TÜV-certified) Excellent servo performance via the smallest controller cycle times (62.5 µs) 8 digital capture inputs for recording the actual position The MDP 102-1 power module is used for communication with the control and communication with connected axis modules over the bus. A real-time Ethernet VARAN interface is provided, Safety input, regen resistor and power filter are integrated. A DC link connection allows the coupling of additional servo drive systems.

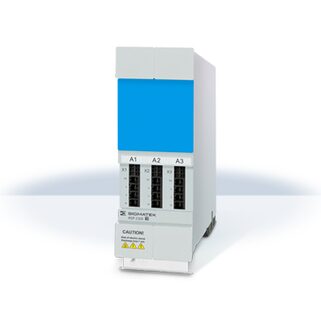

MDP 2100-DDD-00 –
3-axis unit, 4 kW, 3-phase with 480 V AC Rated current: 3x 5 A Peak current: 3x 15 A Control of servo motors Single-cable solution: Hiperface DSL Safety integrated: STO, SOS, SS1, SS2, SLS, SSM, SMS, SBC, SBT, SLP, SP, SLI, SCA, SMA, SLA, SDI

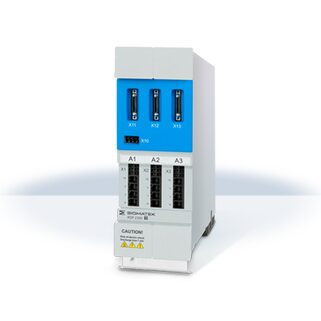

MDP 2100-DDD-03 –
3-axis unit, 4 kW, 3-phase with 480 V AC Rated current: 3x 5 A Peak current: 3x 15 A Control of servo motors Single-cable solution: Hiperface DSL with universal interfaces for encoder variations: EnDat 2.1, Hiperface, Resolver, Sin/Cos, TTL, BiSS-C and Tamagawa Safety integrated: STO, SOS, SS1, SS2, SLS, SSM, SMS, SBC, SBT, SLP, SP, SLI, SCA, SMA, SLA, SDI

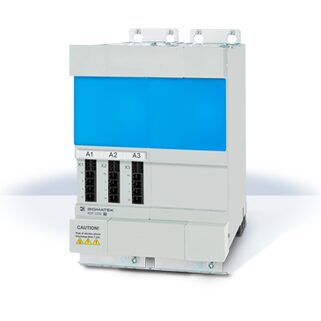

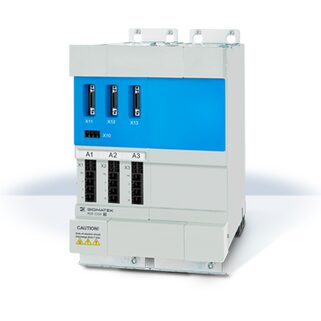

MDP 2200-HHH-00 –
3-axis unit, 9 kW, 3-phase with 400-480 V AC Rated current: 3x 10 A Peak current: 3x 30 A Control of servo motors Single-cable solution: Hiperface DSL Safety integrated: STO, SOS, SS1, SS2, SLS, SSM, SMS, SBC, SBT, SLP, SP, SLI, SCA, SMA, SLA, SDI
MDP 2200-HHH-03 –
3-axis unit, 9 kW, 3-phase with 400-480 V AC Rated current: 3x 10 A Peak current: 3x 30 A Control of servo motors Single-cable solution: Hiperface DSL with universal interfaces for encoder variations: EnDat 2.1, Hiperface, Resolver, Sin/Cos, TTL, BiSS-C and Tamagawa Safety integrated: STO, SOS, SS1, SS2, SLS, SSM, SMS, SBC, SBT, SLP, SP, SLI, SCA, SMA, SLA, SDI
S-DIAS Motor Output Stages

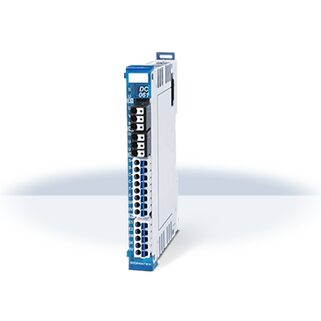

DC 061-1 –
+48 V DC, 6 A continuous current and 15 A peak current Resolver input for positioning feedback (12 bits) 2-channel enable input for STO Safe Torque Off (SIL 3/PL e, Cat. 4) Holding brake External regen resistor optional For controlling a synchronous servo motor For the DC 061-1, AKM low-voltage servo motors are available. For simple control cabinet integration of the S-DIAS system, EPLAN Macros are provided.

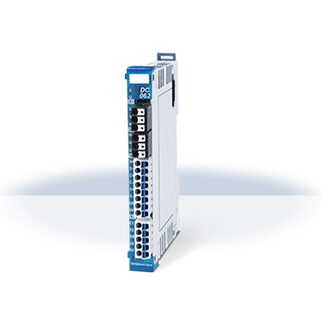

DC 062 –
+48 V DC, 6 A continuous current and 15 A peak current Incremental encoder input for position feedback (16 bits) 2-channel enable input for STO Safe Torque Off (SIL 3/PL e, Cat. 4) Holding brake External regen resistor optional For controlling a synchronous servo motor DC 062-X: Circuit board with protective lacquer For the DC 062, AKM low-voltage servo motors are available. For simple control cabinet integration of the S-DIAS system, EPLAN Macros are provided.
DC 101 –
+48 V DC, 10 A continuous current and 20 A peak current Resolver input for positioning feedback (12 bits) 2-channel enable input for STO Safe Torque Off (SIL 3/PL e, Cat. 4) Holding brake External regen resistor optional For controlling a synchronous servo motor For the DC 101, AKM low-voltage servo motors are available. For simple control cabinet integration of the S-DIAS system, EPLAN Macros are provided.

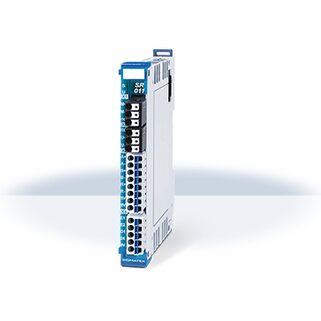

SR 011 –
DC motor output stage (+50 V DC/5 A) 1 incremental encoder input switchable RS422/TTL 2 enable inputs +24 V/3 mA/0.5 ms with STO function (not EG type tested) 1 digital output +24 V/0.5 A/short-circuit protected For controlling a DC brush motor For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
SR 012 –
1 DC motor output stage (+50 V DC/0-5 A) 2 enable inputs +24 V/3 mA/0.5 ms with STO function (not EG type tested) 4 digital inputs +24 V/3.7 mA/5 ms 1 digital output +24 V/0.2 A/short-circuit protected For controlling a DC brush motor

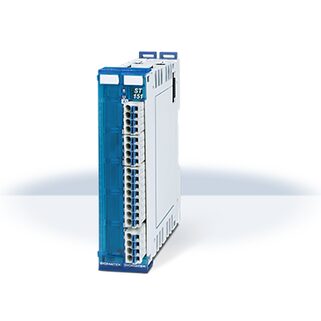

ST 151 –
+50 V DC/5 A continuous current Full step, half step and micro step (up to 64x) 1 brake chopper 1 incremental encoder input RS485/TTL switchable 2 enable inputs with STO function 2 latch / digital input for the reference profile and for monitoring the end positions For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
S-DIAS Safety System

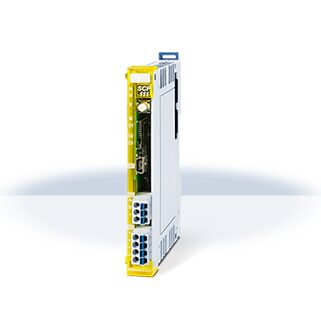

SCP 111 –
Safety controller 1x USB device MicroSD slot Supports up to 16 safety-related I/O modules (total current 1600 mA) SIL 3/PL e, Cat. 4 The Safety controller is used to control the safety-related I/O modules and monitor the Safety logic. For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
SCP 211 –
Safety controller 1x USB device MicroSD slot Supports up to 16 safety-related I/O modules (total current 1600 mA) SIL 3/PL e, Cat. 4 The Safety controller is used to control the safety-related I/O modules and monitor the Safety logic. For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

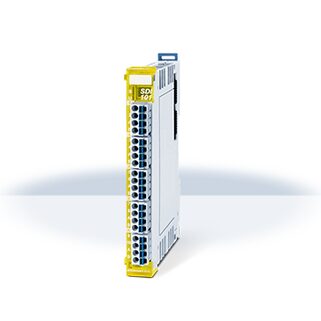

SDI 101 –
10 safe digital inputs (+24 V DC/3.7 mA/0.5 ms) Doubled clock output signal (short circuit proof) SIL 3/PL e, Cat. 4 So that inputs can be tested and crossed circuits can be detected, 2 non-safe signal outputs, TA and TB, are provided. To use the SDI 101 in an application, a Safety CPU module is required. For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

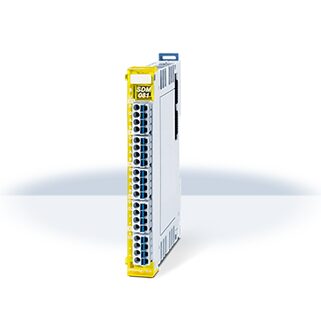

SDM 081 –
6 safe digital inputs (+24 V DC/3 mA/0.5 ms) 2 safe digital outputs (+24 V DC/2 A) Doubled clock output signal (short circuit proof) SIL 3/PL e, Cat. 4 So that inputs can be tested and crossed circuits can be detected, 2 non-safe signal outputs, TA and TB, are provided. To use the SDM 081 in an application, a Safety CPU module is required. For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

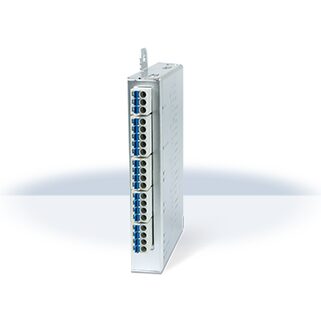

SIB 061 –
6 safe digital inputs (+24 V DC/3 mA/0.5 ms) Double signal output (short-circuit proof) Cross-circuit detection SIL 3/PL e, Cat. 4 Decentralized reading of Safety signals directly on the machine, an operating console or on the back of the ETT multi-touch operating panels.

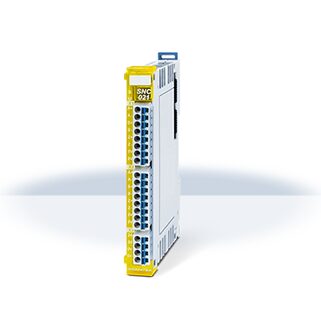

SNC 021 –
Provides values from 2 incremental encoders (up to 12 bits), Safety and standard CPU SIL 3/PL e, Cat. 4 Detection of various error types, such as cable break, cross circuit ... To use the SNC 021 in an application, a Safety CPU module is required. For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

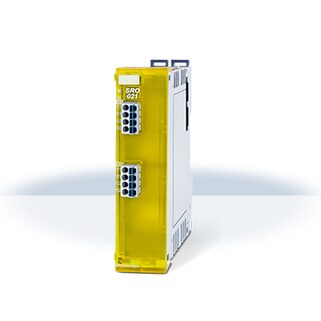

SRO 021 –
2 safe relay outputs (max. +30 V DC/6 A) Closing (NO) SIL 3/PL e, Cat. 4 To use the SRO 021 in an application, a Safety CPU module is required. For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

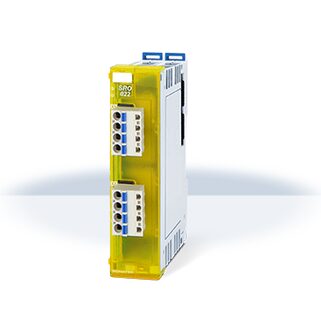

SRO 022 –
2 safe relay outputs (max. +230 V AC/6 A) Closing (NO) SIL 3/PL e, Cat. 4 To use the SRO 022 in an application, a Safety CPU module is required. For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
SSI 021 –
Provides values from 2 SSI absolute value encoders (up to 32 bits), Safety and standard CPU Safe monitoring of the speed, position and absolute value violation SIL 3/PL e, Cat. 4 The 2-channel Safety function is implemented by processing the position values in the Safety core (2 micro controllers with cross communication). To use the SSI 021 in an application, a Safety CPU module is required. For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
STO 081 –
8 safe digital outputs (+24 V DC/2 A) SIL 3/PL e, Cat. 4 To use the STO 081 in an application, a Safety CPU module is required. For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
