Real-time Ethernet VARAN
Products Overview
When selecting the right bus system for machine automation, reliability plays a central role in addition to the speed.
SIGMATEK relies on the hard real-time capable Ethernet bus system VARAN, which meets all the demands of a modern industrial network. VARAN is based on standard Ethernet physics and the protocol is implemented in the hardware. Using the manager-client principle, collisions on the bus are avoided.
Implementation
VEB 011 –
1x VARAN In (Client) 1x periphery interface (bus, I/O, DPRAM) 4 Mbit Flash internal memory Periphery connection via 50-pin board-to-board connector plugs 0 … +70 °C operating temperature
VEB 011-SPI –
1x VARAN In (Client) 1x SPI interface, data exchange via exchange buffer or DPRAM 4-Mbit Flash internal memory Periphery connection via 50-pin board-to-board connector plugs 0 … +70 °C operating temperature
VEB 011C –
1x VARAN In (Client) 1x periphery interface (CANopen, DPRAM) 4 Mbit Flash internal memory Periphery connection via 50-pin board-to-board connector plugs 0 … +85 °C operating temperature
VEB 012 –
1x VARAN In (Client) 1x periphery interface (bus, I/O, DPRAM) 4 Mbit Flash internal memory Periphery connection via 50-pin board-to-board connector plugs 0 … +85 °C operating temperature
VEB 013 –
1x VARAN In (Client), 1x VARAN Out (enables configuration in linear topology) 1x periphery interface (bus, I/O, DPRAM) 4 Mbit Flash internal memory Periphery connection via 12-pin and 50-pin board-to-board connector plugs 0 … +70 °C operating temperature

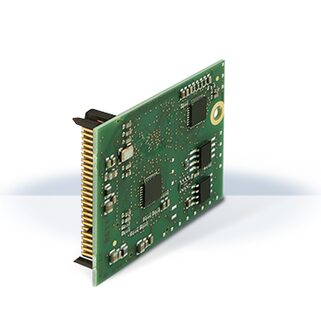

VEB 013-SPI –
1x VARAN In (Client), 1x VARAN Out (enables configuration in linear topology) 1x SPI interface, data exchange via exchange buffer or DPRAM 4 Mbit Flash internal memory Periphery connection via 50-pin board-to-board connector plugs 0 … +70 °C operating temperature

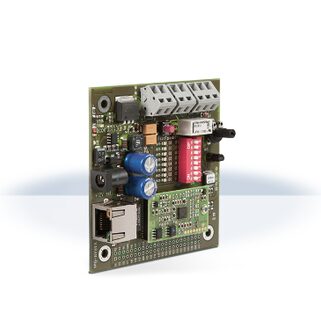

VEB 021 –
Allows a simple introduction to VARAN bus technology 8 digital in and outputs each 1x RJ45, 1x external +12 V DC supply 1 relay output, 3 analog inputs (12 bits) and 1 analog output (8 bits) VARAN bus connection over VEB 011 or VEB 012

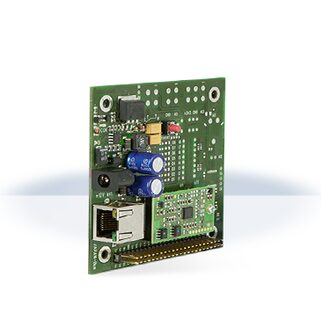

VEB 022 –
Allows a simple introduction to VARAN bus technology 1x RJ45, 1x external +12 V DC supply VARAN bus connection over VEB 011 or VEB 012 Multi-pin connector of a micro controller More freedom through low assembly variants

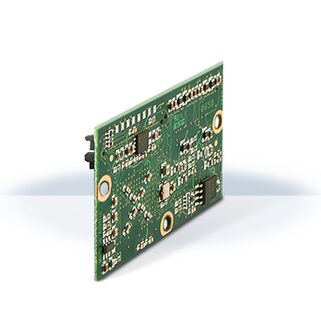

VEB 031 –
2x VARAN Out (Manager) 1x 32 bits PCI interface for connecting a host CPU 16 Mbit Flash internal memory Periphery connection via 2x 50-pin board-to-board connector plugs 0 … +70 °C operating temperature

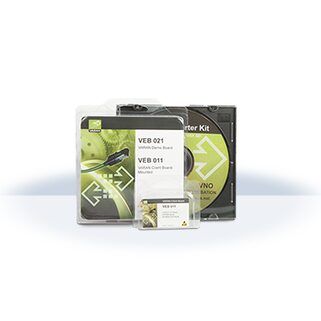

VSK 001 –
Allows a simple introduction to VARAN bus technology Evaluation Board VEB 021, Client Board VEB 011 RJ45 to RJ45 VARAN 2-meter cable Software for the Starter Kit +12 V DC supply

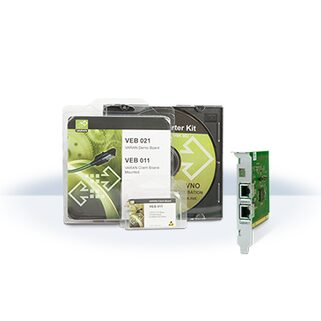

VSK 002 –
Allows a simple introduction to VARAN bus technology Evaluation Board VEB 021, Client Board VEB 011 PC network card PCV 521 RJ45 to RJ45 VARAN 2-meter cable Software for the Starter Kit +12 V DC supply
Interfaces & Splitters
ICA 011 Interface
1x CAN Termination of the CAN bus via soft or hardware For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

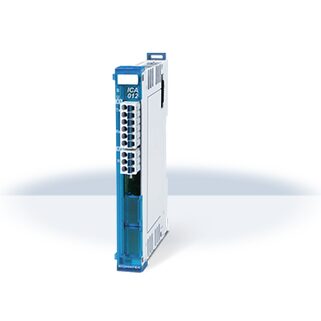

ICA 012 –
1x CAN Termination of the CAN bus via soft or hardware For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
IIO 041 –
4x SDCI ports (Single-Drop Digital Communication Interface) according to IEC 61131-9 (IO-Link) Enables the connection of up to 4 intelligent SDCI sensors or SDCI actuators All SDCI ports can also be configured as +24 V digital inputs or +24 V digital outputs Additionally 4 digital inputs (+24 V DC/3.7 mA) Input delay: 0.5 ms For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
IPN 021-1 –
1x Profinet Slave I/O In* 1x Profinet Slave I/O Out* According to Profinet I/O specification V2.3 Profinet identification parameters configurable * Industrial Mini I/O

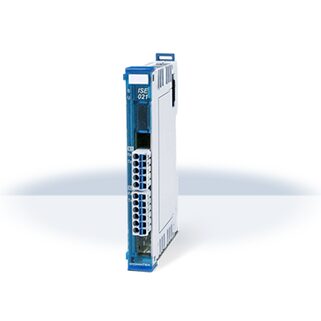

ISE 021 –
1x RS232 (2x RS232, switchable via software) 1x RS485 No external +24 V DC supply required For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
ISE 031 –
1x RS232 (2x RS232, switchable via software) 1x RS485 1x TTY For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

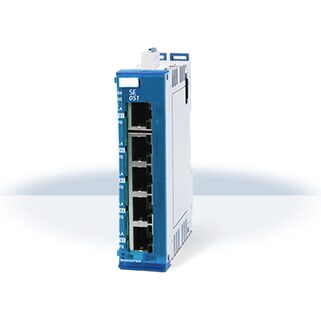

SE 051 –
Ethernet switch with 5 ports (RJ45) For connection of network segments For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet
SE 052 –
Ethernet switch with 5 ports (Tyco Mini I/O) For connection of network segments For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
SV 141 –
1x VARAN In (RJ45) 4x VARAN Out (RJ45) +24 V DC supply connectible to VARAN Out ports For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

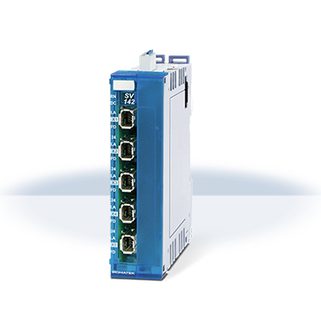

SV 142 –
1x VARAN In (Tyco Mini I/O) 4x VARAN Out (Tyco Mini I/O) +24 V DC supply connectible to VARAN Out ports For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

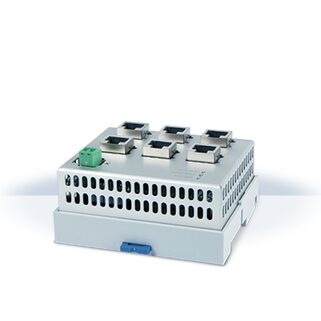

VBC 021 –
Connection from two independent VARAN bus systems to the field level VARAN system 1: 1x VARAN In (RJ45), 2x VARAN Out (RJ45) VARAN system 2: 1x VARAN In (RJ45), 1x VARAN Out (RJ45) Connection to the company network via the IP port (RJ45) Connected bus systems are synchronized
VBC 121 –
For connecting VARAN and EtherCAT bus systems VARAN: 1x VARAN In (RJ45), 3x VARAN Out (RJ45), of which optionally 1x Ethernet VtE (RJ45) VARAN Out ports have automatic Ethernet recognition EtherCAT: 1x EtherCAT In (RJ45), 1x EtherCAT Out (RJ45) For synchronous data exchange, a triple buffer is provided. For asynchronous data exchange, CoE (CanOpen over EtherCat) and VoE (Vendor over EtherCat) is available.
VSP 042 –
Profinet gateway (RJ45) allows integration of Profinet IRT drives Interface to primary VARAN participants or to the VARAN Manager over VARAN In (RJ45) For star, tree and linear topology: up to 4 stings (VARAN Out, RJ45) Tunneling IP packets over VtE VARAN transmits Ethernet (RJ45)
VSP 044 –
Profinet gateway allows integration of Profinet IRT drives Interface to primary VARAN participants or to the VARAN Manager over VARAN In (RJ45) Voltage supply of downstream VARAN participants +24 V DC via Power over VARAN (PoV) For star, tree and linear topology: up to 4 stings (VARAN Out, RJ45) Tunneling IP packets over VtE VARAN transmits Ethernet (RJ45)
VSP 045 –
Profinet gateway allows integration of Profinet IRT drives Interface to primary VARAN participants or to the VARAN Manager over VARAN In (RJ45) Voltage supply of downstream VARAN participants +24 V DC Power over VARAN (PoV), Norm UL248 For star, tree and linear topology: up to 4 stings (VARAN Out, RJ45) Tunneling IP packets over VtE VARAN transmits Ethernet (RJ45)

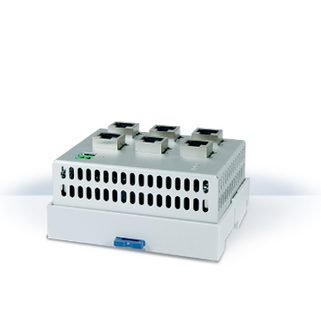

VSV 041 –
Interface to primary VARAN participants or to the VARAN Manager over VARAN In (RJ45) For star, tree and linear topology: up to 4 stings (VARAN Out, RJ45) Tunneling IP packets over VtE VARAN transmits Ethernet (RJ45)
VSV 043 –
Interface to primary VARAN participants or to the VARAN Manager over VARAN In (RJ45) Voltage supply of downstream VARAN participants +24 V DC via Power over VARAN (PoV) For star, tree and linear topology: up to 4 stings (VARAN Out, RJ45) Tunneling IP packets over VtE VARAN transmits Ethernet (RJ45)
VSV 046 –
Interface to primary VARAN participants or to the VARAN Manager over VARAN In (RJ45) Voltage supply of downstream VARAN participants +24 V DC via Power over VARAN (PoV) For star, tree and linear topology: up to 4 stings (VARAN Out, RJ45) Optional tunneling of IP packets over VtE VARAN transmits Ethernet (RJ45) or real-time Ethernet (RJ45) possible
Valve Terminal Interface

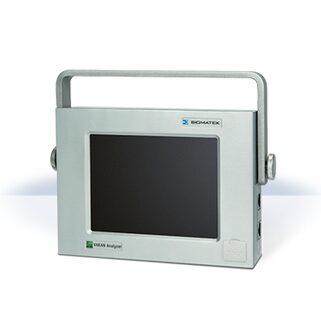

ETVA 0501 –
VARAN real-time analysis of the transmission behavior without PC or Laptop 5.7“ TFT color display, touch (resistive), 640 x 480 pixels 1x VARAN In (RJ45), 1x VARAN Out (RJ45) or Ethernet 10/100 Mbit (RJ45) 1x USB 1.1 for exporting recorded data Comprehensive trigger and filter functions The VARAN Analyzer can be connected to a free VARAN port during active operation. If no port is available, an existing VARAN bus can be simply disconnected and the analyzer inserted.
VA 011 –
VARAN real-time analysis of the transmission response 1x VARAN In (RJ45), 1x VARAN Out (RJ45) and 1x Gigabit Ethernet 10/100/1000 VARAN service tool for data evaluation The VA 011 can be connected to a free VARAN port during operation. If a port is no longer available, an existing VARAN bus connection can be simply disconnected and the analyzer inserted. For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet. *Wireshark and the "fin" logo are registered trademarks of the Wireshark Foundation

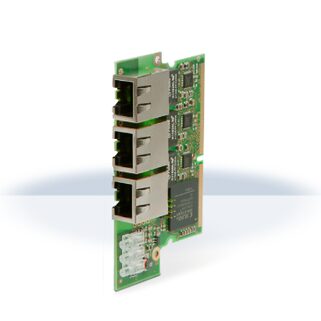

VA 062 –
Real-time analysis of VARAN communication with C-IPC Display in the VARAN service tool 1x VARAN In (RJ45), 2x VARAN Out (RJ45, optional 1x transparent) Comprehensive trigger and filter functions

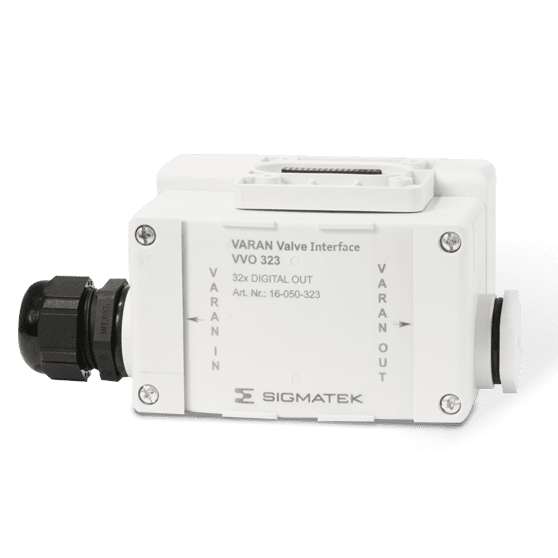

VVO 323 Valve
For controlling valves or magnetic coils 32 digital, short-circuit proof outputs (+24 V DC/50 mA) Valve terminal series: SY3000/5000/7000, SV1000/2000/3000, VQC1000/2000/4000, S0700 1x VARAN In, 1x VARAN Out Protection type: IP67
VARAN Cables

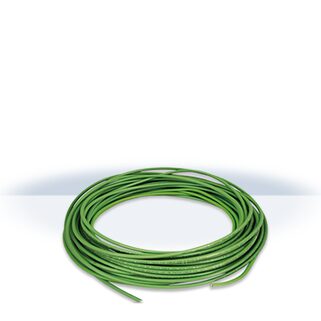

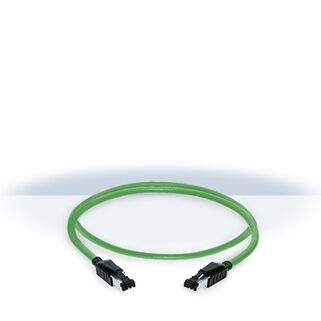

CAT-5 Cables –
Industrial Ethernet cable for flexible drag chain wiring 4-pin CAT5, 2x2xAWG26/7, double shielding Cover: PUR green RoHS compliant according to EU guideline 2011/65/EU
CAT-5 Cables –
Industrial Ethernet cable for flexible wiring 4-pin CAT5, 2x2xAWG26/7, double shielding Cover: PVC green RoHS compliant according to EU guideline 2011/65/EU
CAT-5 Cables –
Industrial Ethernet cable for flexible wiring 4-pin CAT5, 2x2xAWG26/7, double shielding Cover: PVC green RoHS compliant according to EU guideline 2011/65/EU

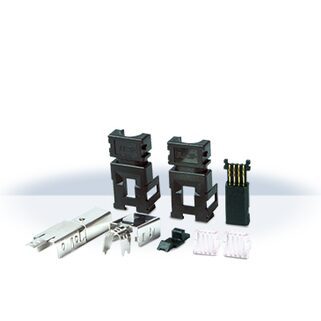

Mini I/O Piercing
Reliable connections in industrial, as well as vibration-prone environments Compact solution (space-saving)

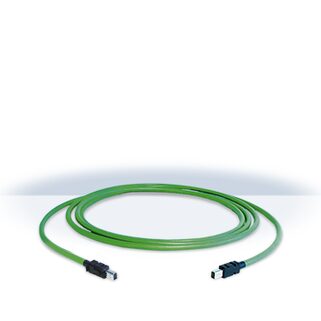

Mini I/O to
Connectors: 2x Industrial Mini I/O Type 1 from TE Connectivity IP20 data plug Cable type: drag chain suitable system cable, 4-pin, 2x2xAWG22/7, double shielding Protection type: IP20 (plugged in) Cover: PUR green Connector geometry: 2x Mini I/O Type 1 RoHS compliant according to EU guideline 2011/65/EU
Mini I/O to
Connectors: 2x Industrial Mini I/O Type 1 from TE Connectivity IP20 data plug Cable type: flexible system cable, 4-pin, 2x2xAWG26/7, double shielding Protection type: IP20 (plugged in) Cover: PVC green Connector geometry: 2x Mini I/O Type 1 RoHS compliant according to EU guideline 2011/65/EU

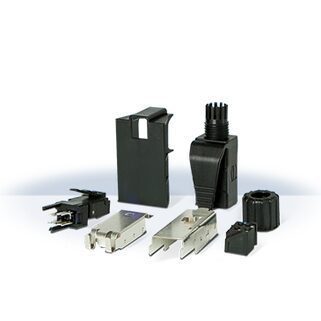

RJ45 CAT5 –
Housing material: Plastic version Protection type: IP20 Connector geometry: RJ45 in accordance with IEC 60603-7 RJ45 industrial connector 4-pin for toolless cable assembly CAT5
RJ45 to 1x
Connectors: 1x HARTING RJ Industrial IP20-Data, 1x Industrial Mini I/O Type 1 from TE Connectivity IP20 data plug Cable type: flexible system cable, 4-pin, 2x2xAWG26/7, double shielding Protection type: IP20 (plugged in) Cover: PVC green Connector geometry: 1x RJ45 in accordance with IEC 60603-7, 1x Mini I/O Type 1 RoHS compliant according to EU guideline 2011/65/EU
RJ45 to Mini
Connectors: 1x HARTING RJ Industrial IP20-Data, 1x Industrial Mini I/O Type 1 from TE Connectivity IP20 data plug Cable type: drag chain suitable system cable, 4-pin, 2x2xAWG22/7, double shielding Protection type: IP20 (plugged in) Cover: PUR green Connector geometry: 1x RJ45 in accordance with IEC 60603-7, 1x Mini I/O Type 1 RoHS compliant according to EU guideline 2011/65/EU
RJ45 to RJ45
Connectors: 2x HARTING RJ Industrial IP20 Data with over molded connector housing Cable type: drag chain suitable system cable, 4-pin, 2x2xAWG22/7, double shielding Protection type: IP20 (plugged in) Cover: PUR green Connector geometry: 2x RJ45 in accordance with IEC 60603-7 RoHS compliant according to EU guideline 2011/65/EU
RJ45 to RJ45
Connectors: 2x HARTING RJ Industrial IP20 Data with over molded connector housing Cable type: flexible system cable, 4-pin, 2x2xAWG26/7, double shielding Protection type: IP20 (plugged in) Cover: PVC green Connector geometry: 2x RJ45 in accordance with IEC 60603-7 RoHS compliant according to EU guideline 2011/65/EU
