I/O CONNECTORS
Series Overview
I/O connectors attach to most 2500 Series® I/O modules and allow termination of field wiring at the PLC.
2500 Series - Classic, CTI
2500-40F 40-Position Standard
The 2500-40F is a 40-position standard screw-terminal connector for terminating field I/O wiring at the 2500 Series® programmable controller.

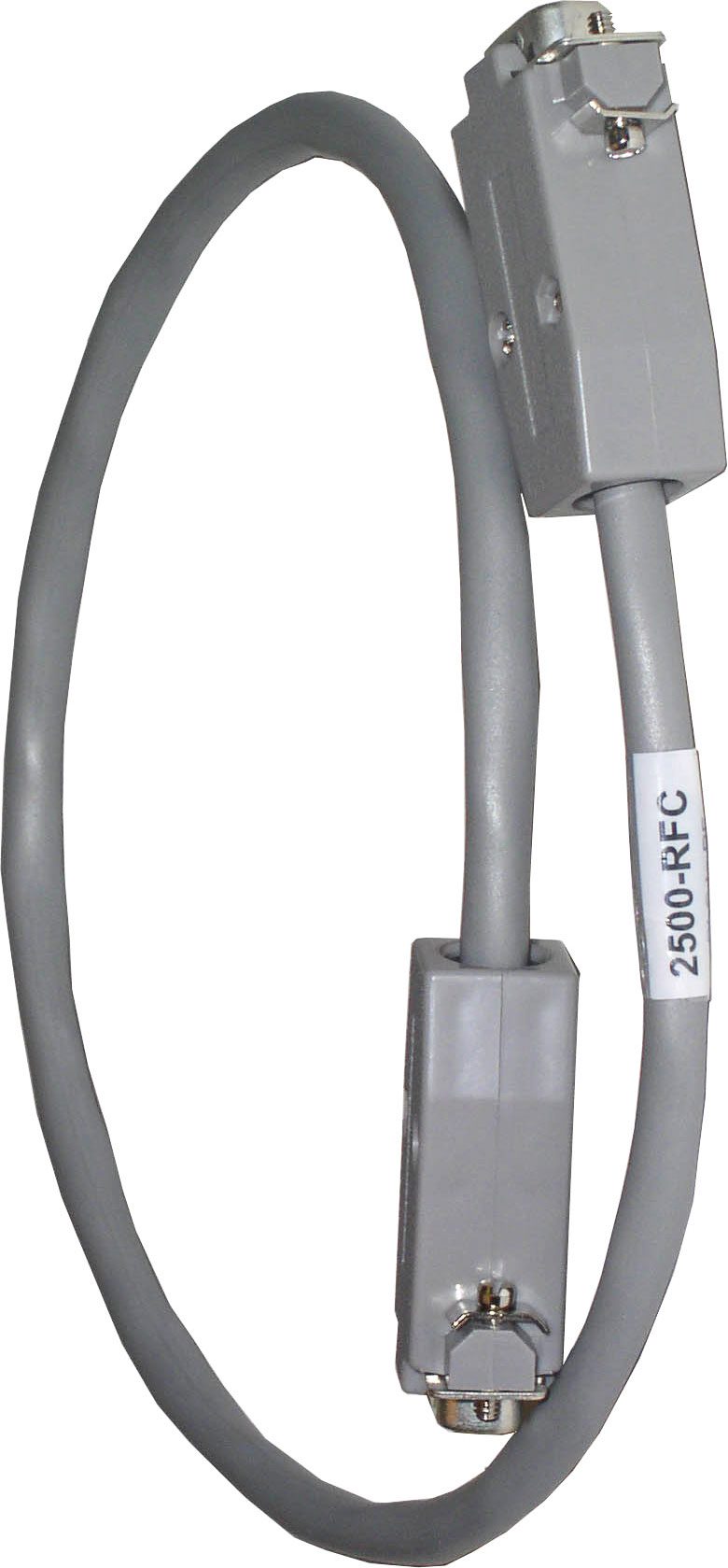

2500-RFC PLC to
The 2500-RFC is a specially constructed cable used to connect the Simatic® 505-6860 RS-485/ RF I/O Channel Converter to CTI 2500 Series® Processors. The cable uses special shielding and terminations to provide the best possible communications performance with RF networks.
2559-FCAL Precision Calibration
The 2559-RTD is calibrated at the factory and needs no calibration when installed. The module should be calibrated yearly for best accuracy. If the module operates in an environment where the ambient temperature cycles outside the range of 20C to 30C, more frequent calibration may be required. Also, if the ambient temperature is constantly outside the range of 20C to 30C, calibration at the normal operating temperature may improve accuracy.

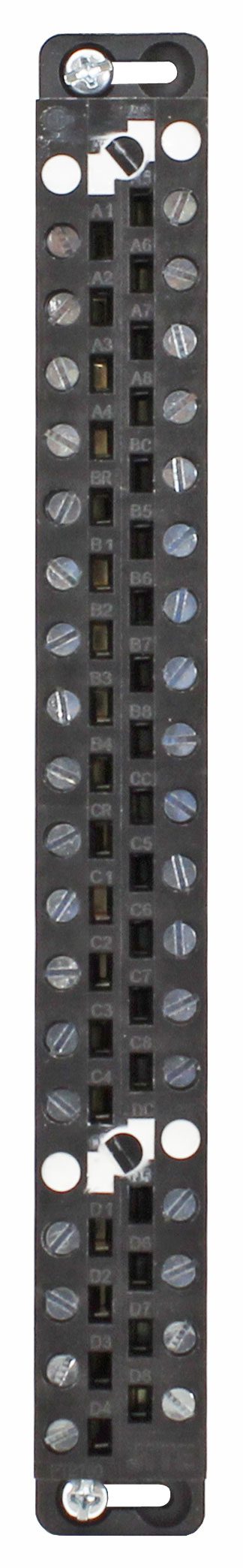

2559-FPC 40-Position Screw-Terminal
The 2559-FPC is a 40-position screw-terminal connector with built-in cold junction compensation for the 2559-TC Thermocouple Input Module.
2500 Series - Compact, CTI

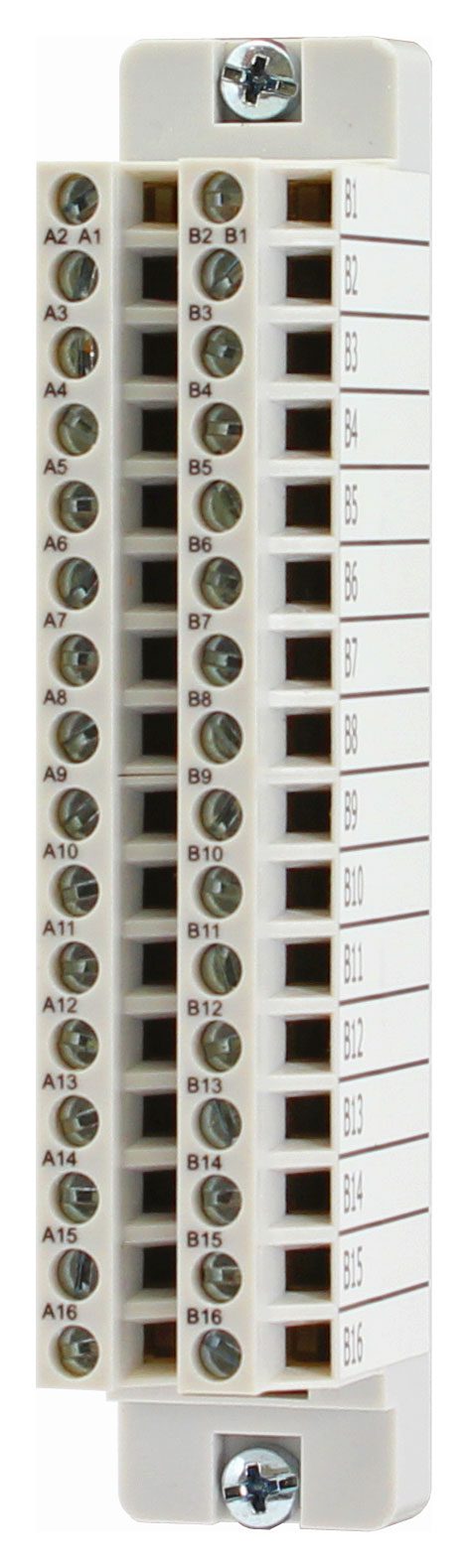

2500C-32F 32-Pin Field
The 2500C-32F 32-pin Field Wiring Connector provides a termination point for field wiring at the 2500C I/O module. The connector is removable and 2500C I/O modules can be hot-swapped, allowing modules to be changed under power.

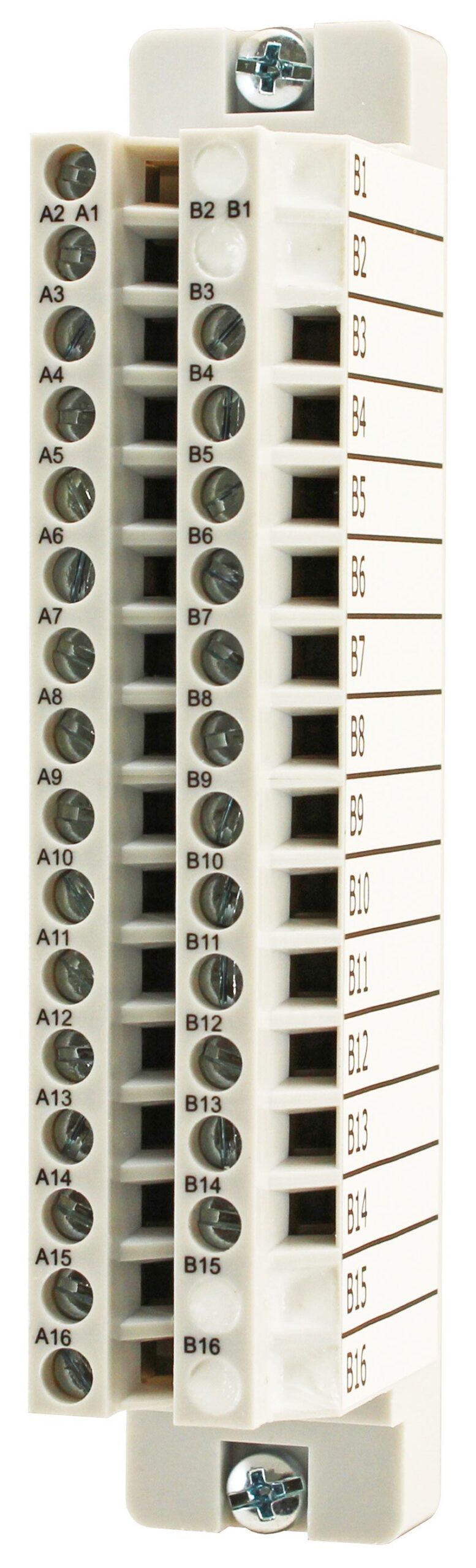

2500C-32F-CJC 32-Pin Field
The 2500C-32F-CJC 32-pin Field Wiring Connector provides a termination point for field wiring at the 2500C-8-TC I/O module. The connector is removable and includes built-n cold junction compensation to allowing wiring thermcouple wire directly to the connector.
