Analog modules
Precise, variable and
The configuration of the mess- and address ranges of our S7-analog modules is very easy. It is done by the configuration software ConfigStage. But this is only one advantage of the S7-analog modules of INSEVIS. Each module has its special functionality like the automatic regulation from 12 to 16bit resolution (incl. +-sign) or the selection of 2-, 3- or 4-wire connection technology including a range of sensors. Always ready to label with your logo and article-number. And of course you can use your PID blocks from Siemens for the analog value processing in the INSEVIS-PLCs as well.
Digital modules
Variable down to
The range of our S7-digital module contains a lot. Single digital inputs for 24V, relay outputs for 230V as single potential free contacts or configurable digital in-/output modules for 24V. Each of the <20mm smart S7- digital modules contains state-LEDs, a 45° angled and space-saving connect area and can be labeled with customized logos. INSEVIS stands for permanent innovation, even at the signals layer too. As example the MIO84 contains backreadable digital outputs can be configured by a free configuration software, if the output or input shall be used. Analog channels can be configured each as in- or output for voltage or current signals …

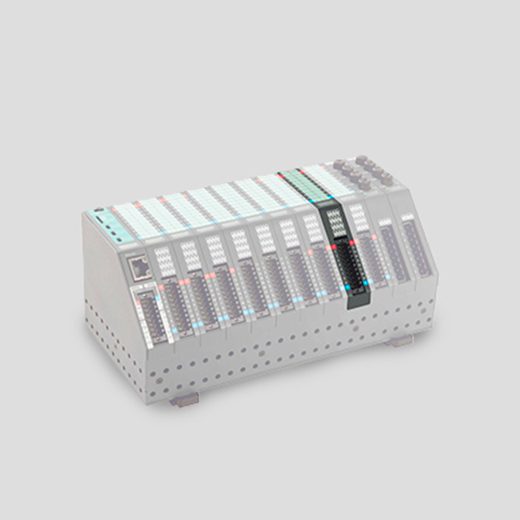

Function modules
High speed counters
Finally our S7-function modules with high speed counters (125kHz) and digital in-/outputs for 2A, where the desired configuration will be selected and downloaded by the cosat free configuration tool ConfigStage. To be really flexible and to prevent too many different modules on stock. If this functionality is counting up/down, frequency- or period time measurement, or whatever will come – all will be assigned by software. the hardware is only different for different signal types; 5V or 24V or RS422.

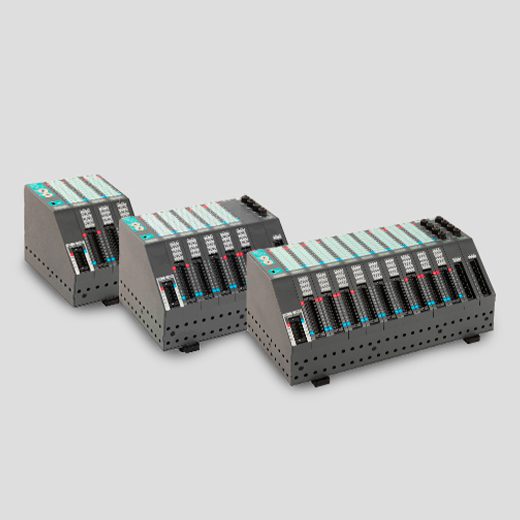

Head stations
S7-periphery blocks as
Our S7-periphery blocks for 3, 7 er 11 periphery slots are so easy to config. Connected to our CPUs by CAN but no CAN-knowledge is neccessary and configuration is done just in a minute only. Just assign the node ID on the hexadecimal turn switches in the head stations. Insert this value into the cost free configuration tool ConfigStage – ready. I/O start addresses will be assigned automatically and controlled by an internal plausibility test. Up to 127pcs. of these stations can be connected to an INSEVIS S7-CPU. A solid metal cover protects the inserted periphery modules against electomechanical fields.
