INSEVIS
S7-Compact-PLC
Products Overview
Our S7-PLCs are programmable with S7-tools SimaticManager and TIA-Portal from Siemens. They are equipped with enough memory (512kB…1MB work- and 2…8MB load memory). And with multiple communication interfaces as Ethernet (S7-communication, TCP, UDP), Modbus (TCP, RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optional Profibus DP Master/Slave or Profinet IO Controller. This S7-PLCs for DIN-rail mounting combines powerful S7-CPUs with onboard interfaces and modular periphery in a metal cover to be save against rough environment in a temperature range from -20…+60°C. It is possible to create a large visualization by VisuStage and RemoteStage for free up to PC-monitor-format like Full-HD and dto isplay it remote on you PC – free of cost.
S7-Compact-PLC
Large S7-PLCs with
Already 240mm wide, but equipped with 11 periphery for INSEVIS-periphery slots: the large S7-PLCs CC311V/T with all the interfaces of CPU-V or CPU-T. Despite of the number of onboard I/Os there are still all interfaces availabe for external periphery or communication: Ethernet (S7-communication put/get, TCP, UDP), Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII). Optionally Profibus DP V0 (Master/Slave at CPU-V) resp. Profinet IO Controller (at CPU-T, what provides 2 separated Ethernet-ports too). Every slot can be labeled with customer logo free of charge.

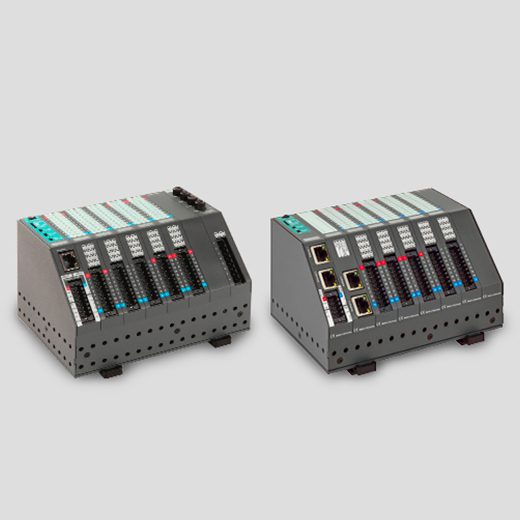

Medium S7-PLCs with
These medium S7-PLCs provide already 7 periphery slots for INSEVIS-periphery below the 161mm wide metal rear cover. Of course they contain a large working- (512kB/1MB) and load memory (2MB/8MB). A lot of interfaces like Ethernet (S7-communication put/get, TCP, UDP), Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) are available. Optionally Profibus DP V0 (Master/Slave at CPU-V) resp. Profinet IO Controller (at CPU-T, what provides 2 separated Ethernet-ports too). Every slot can be labeled with customer logo and article number.

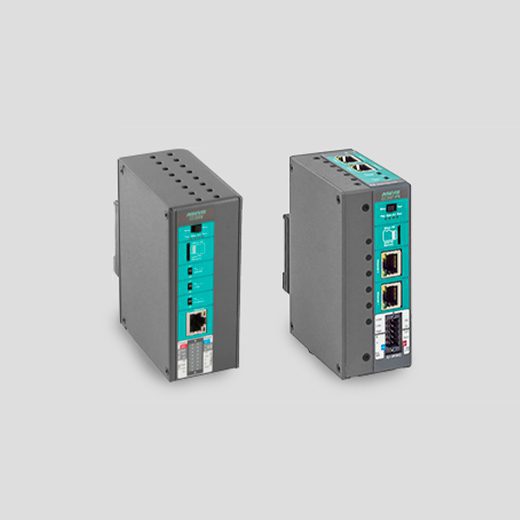

Pure S7-PLCs for
By a width of only 27…50mm these compact pure S7-PLCs CC300V/T are wqithout peripher slots. They provide a large working- (512kB/1MB) and load memory (2MB/8MB) and a lot of interfaces. This is Ethernet (S7-communication, TCP, UDP), Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII). Profibus DP V0 (Master/Slave at CPU-V) resp. Profinet IO Controller (at CPU-T, what proviedes 2 separated Ethernet-ports too) are available optionally. Decentral peripheries can be integrated easily by the cost free configuration tool ConfigStage. This prefers these devises for gateway applications. Your logo and article number? No problem – can be included with the 1st piece.

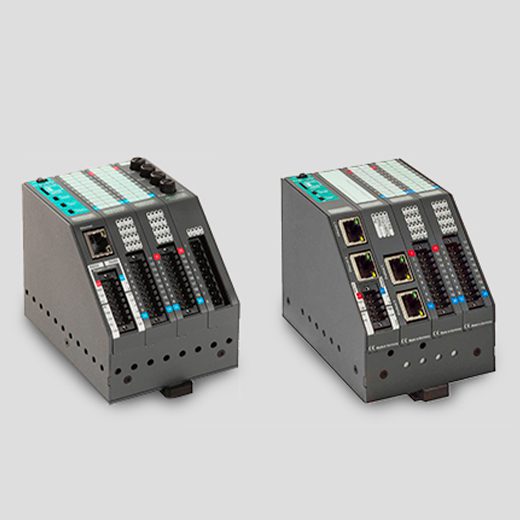

Small S7-PLCs with
These small S7-PLCs provide additional 3 periphery slots for INSEVIS- periphery below the 82mm wide metal rear cover. Of course they contain a large working- (512kB/1MB) and load memory (2MB/8MB). Also a lot of interfaces like Ethernet (S7-communication put/get, TCP, UDP), Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII). Profibus DP V0 (Master/Slave at CPU-V) resp. Profinet IO Controller (at CPU-T, what provides 2 separated Ethernet-ports too) are available optionalls. Every slot can be labeled with customer logo and article number.
