Products Overview
For any application: With an optimized and fully integrated drive concept, the efficiency of the machine – and the energy efficiency in particular – can be increased.

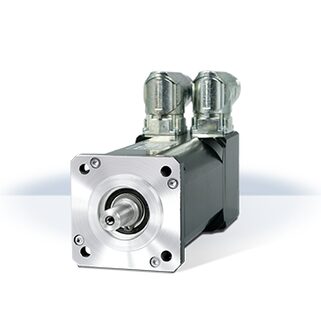

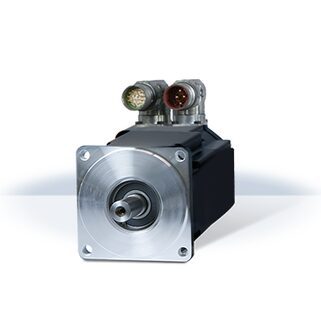

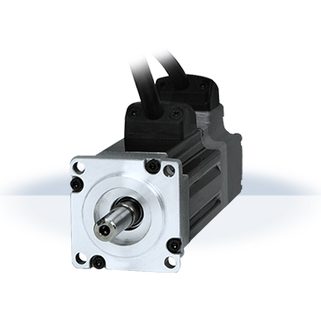

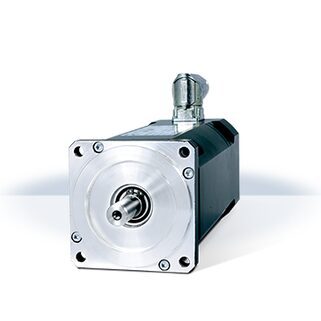

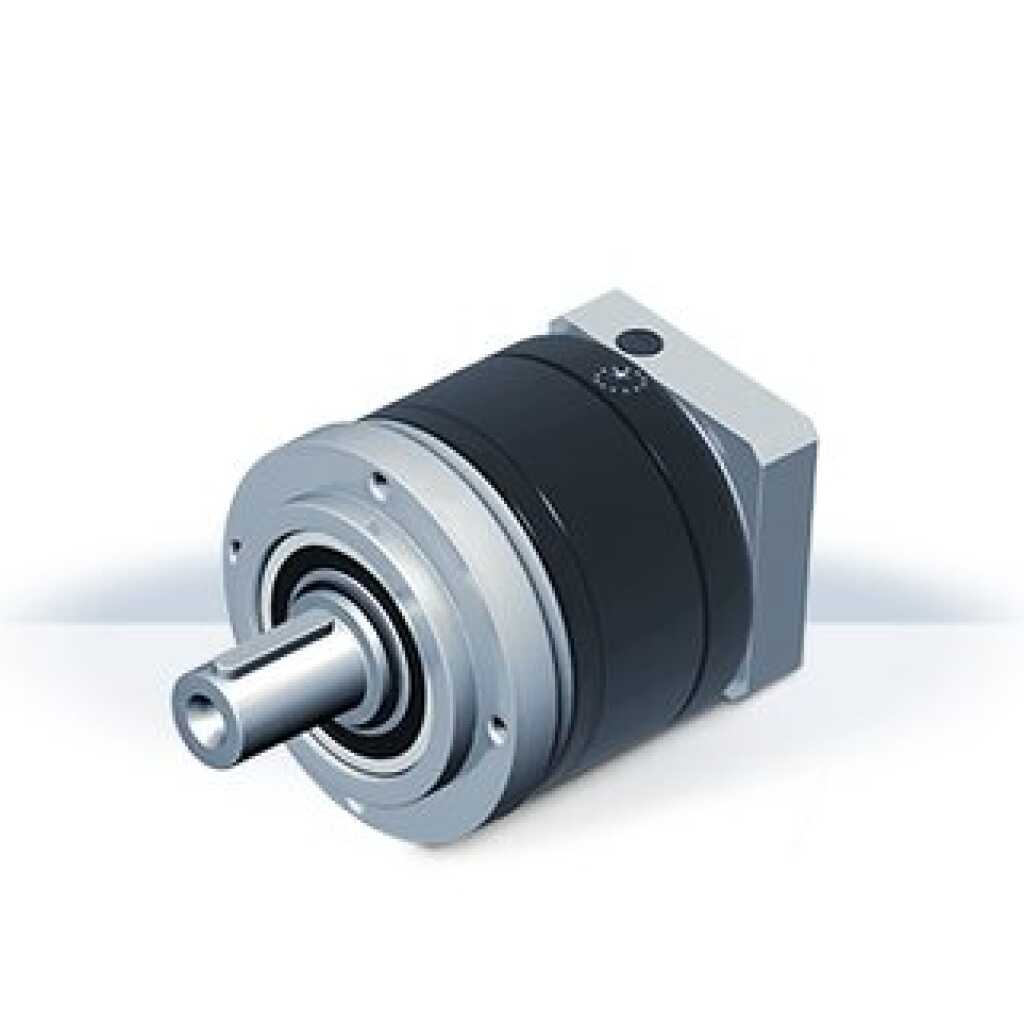

SIGMATEK provides you with a coordinated motion control system, in which drives, AC drives, motors, gears, motor output stages and software interact perfectly. They achieve highly dynamic, precise motion sequences – in real time and from one source. At the same time, our modular motion system provides you with complete freedom in designing your drive solution.

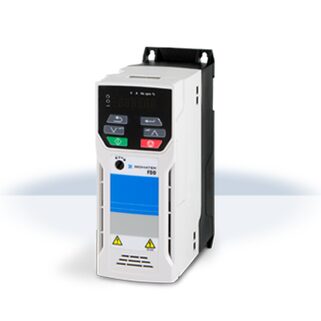

AC Drives
FDD 3022.00024 –
For motor power 0.37 kW heavy/normal duty Size 2: 75 x 205 x 150 mm (B x H x T) 1- or 3-phase, 200/240 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3022.00033 –
For motor power 0.55 kW heavy/normal duty Size 2: 75 x 205 x 150 mm (B x H x T) 1- or 3-phase, 200/240 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3022.00042 –
For motor power 0.75 kW heavy/normal duty Size 2: 75 x 205 x 150 mm (B x H x T) 1- or 3-phase, 200/240 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3022.00056 –
For motor power 1.1 kW heavy/normal duty Size 2: 75 x 205 x 155 mm (B x H x T) 1- or 3-phase, 200/240 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3022.00075 –
For motor power 1.5 kW heavy/normal duty Size 2: 75 x 205 x 150 mm (B x H x T) 1- or 3-phase, 200/240 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3024.00013 –
For motor power 0.37 kW heavy/normal duty Size 2: 75 x 205 x 150 mm (B x H x T) 3-phase, 380/480 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3024.00018 –
For motor power 0.55 kW heavy/normal duty Size 2: 75 x 205 x 150 mm (B x H x T) 3-phase, 380/480 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3024.00023 –
For motor power 0.75 kW heavy/normal duty Size 2: 75 x 205 x 150 mm (B x H x T) 3-phase, 380/480 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3024.00032 –
For motor power 1.1 kW heavy/normal duty Size 2: 75 x 205 x 150 mm (B x H x T) 3-phase, 380/480 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3024.00041 –
For motor power 1.5 kW heavy/normal duty Size 2: 75 x 205 x 150 mm (B x H x T) 3-phase, 380/480 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3032.00100 –
For motor power 2.2 kW heavy/normal duty Size 3: 90 x 226 x 160 mm (B x H x T) 1- or 3-phase, 200/240 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3034.00056 –
For motor power 2.2 kW heavy/normal duty Size 3: 90 x 226 x 160 mm (B x H x T) 3-phase, 380/480 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3034.00073 –
For motor power 3 kW heavy/normal duty Size 3: 90 x 226 x 160 mm (B x H x T) 3-phase, 380/480 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3034.00094 –
For motor power 4 kW heavy/normal duty Size 3: 90 x 226 x 160 mm (B x H x T) 3-phase, 380/480 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3042.00133 –
For motor power 3 kW heavy/normal duty Size 4: 115 x 277 x 175 mm (B x H x T) 1- or 3-phase, 200/240 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3042.00176 –
For motor power 4 kW heavy/normal duty Size 4: 115 x 277 x 175 mm (B x H x T) 3-phase, 200/240 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3044.00135 –
For motor power 5.5 kW heavy/normal duty Size 4: 115 x 277 x 175 mm (B x H x T) 3-phase, 380/480 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3044.00170 –
For motor power 7.5 kW heavy/normal duty Size 4: 115 x 277 x 175 mm (B x H x T) 3-phase, 380/480 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3054.00270 –
For motor power 11 kW heavy / 15 kW normal duty Size 5: 143 x 391 x 200 mm (B x H x T) 3-phase, 380/480 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
FDD 3054.00300 –
For motor power 15 kW heavy/normal duty Size 5: 143 x 391 x 200 mm (B x H x T) 3-phase, 380/480 V AC Communication with the control via CANopen, EtherCAT or VARAN interfaces Dynamic V/f control and standby mode Integrated power filter for industry class A (optional power filter for class B) Two Safety STO inputs (SIL 3/PL e) for safe shutdown 3 digital inputs, 1 digital in/output, 1 relay output (brake control)
SI-CANopen – Interface
Interface module for FDD 3000 AC Drives for integration into a CAN network 1x CAN
SI-EtherCAT – Interface
Interface module for FDD 3000 AC Drives for integration into a EtherCAT network 1x EtherCAT In, 1x EtherCAT Out

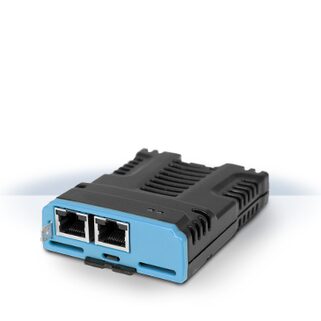

SI-VARAN – Interface
Interface module for FDD 3000 AC Drives for integration into a VARAN network 1x VARAN In, 1x VARAN Out
Cable
CAT-5 Cables –
Industrial Ethernet cable for flexible drag chain wiring 4-pin CAT5, 2x2xAWG26/7, double shielding Cover: PUR green RoHS compliant according to EU guideline 2011/65/EU
CAT-5 Cables –
Industrial Ethernet cable for flexible wiring 4-pin CAT5, 2x2xAWG26/7, double shielding Cover: PVC green RoHS compliant according to EU guideline 2011/65/EU
CAT-5 Cables –
Industrial Ethernet cable for flexible wiring 4-pin CAT5, 2x2xAWG26/7, double shielding Cover: PVC green RoHS compliant according to EU guideline 2011/65/EU

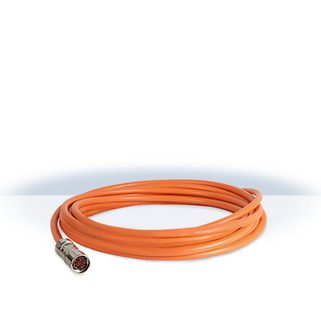

DIAS Drives 100_S-DIAS
For motors with or without holding brake Preassembled and shielded on both ends Round connectors on the motor and module connectors Drag chain suitable, highly flexible (5 mil. bending cycles) Available lengths: 1 m, 1.5 m, 2 m, 3 m, 4 m, 5 m, 10 m, 15 m, 20 m, 25 m
DIAS Drives 2000
For motors with or without holding brake Preassembled and shielded on both ends Round connectors on the motor and module connectors Drag chain suitable, highly flexible (5 mil. bending cycles) Available lengths: 1-5 m, 10 m, 15 m, 20 m, 30 m
DIAS Drives 300
For motors with or without holding brake Preassembled and shielded on both ends Round connectors on the motor and module connectors Drag chain suitable, highly flexible (5 mil. bending cycles) Available lengths: 5 m, 10 m, 15 m, 20 m

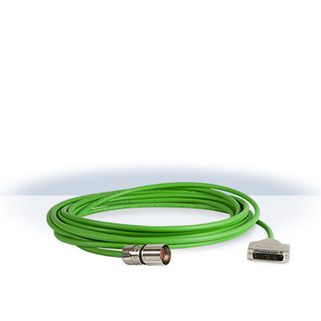

Encoder Cables –
Preassembled and shielded on both ends Round connectors on the motor and DIAS Drive device connectors Drag chain suitable and highly flexible (5 mil. bending cycles) Feedback: Resolver, EnDat or Hiperface encoders Available lengths: 1 m, 1.5 m, 2 m, 3 m, 4 m, 5 m, 10 m, 15 m, 20 m, 30 m
Mini I/O Piercing
Reliable connections in industrial, as well as vibration-prone environments Compact solution (space-saving)
Mini I/O to
Connectors: 2x Industrial Mini I/O Type 1 from TE Connectivity IP20 data plug Cable type: drag chain suitable system cable, 4-pin, 2x2xAWG22/7, double shielding Protection type: IP20 (plugged in) Cover: PUR green Connector geometry: 2x Mini I/O Type 1 RoHS compliant according to EU guideline 2011/65/EU
Mini I/O to
Connectors: 2x Industrial Mini I/O Type 1 from TE Connectivity IP20 data plug Cable type: flexible system cable, 4-pin, 2x2xAWG26/7, double shielding Protection type: IP20 (plugged in) Cover: PVC green Connector geometry: 2x Mini I/O Type 1 RoHS compliant according to EU guideline 2011/65/EU
RJ45 CAT5 –
Housing material: Plastic version Protection type: IP20 Connector geometry: RJ45 in accordance with IEC 60603-7 RJ45 industrial connector 4-pin for toolless cable assembly CAT5
RJ45 to 1x
Connectors: 1x HARTING RJ Industrial IP20-Data, 1x Industrial Mini I/O Type 1 from TE Connectivity IP20 data plug Cable type: flexible system cable, 4-pin, 2x2xAWG26/7, double shielding Protection type: IP20 (plugged in) Cover: PVC green Connector geometry: 1x RJ45 in accordance with IEC 60603-7, 1x Mini I/O Type 1 RoHS compliant according to EU guideline 2011/65/EU
RJ45 to Mini
Connectors: 1x HARTING RJ Industrial IP20-Data, 1x Industrial Mini I/O Type 1 from TE Connectivity IP20 data plug Cable type: drag chain suitable system cable, 4-pin, 2x2xAWG22/7, double shielding Protection type: IP20 (plugged in) Cover: PUR green Connector geometry: 1x RJ45 in accordance with IEC 60603-7, 1x Mini I/O Type 1 RoHS compliant according to EU guideline 2011/65/EU
RJ45 to RJ45
Connectors: 2x HARTING RJ Industrial IP20 Data with over molded connector housing Cable type: drag chain suitable system cable, 4-pin, 2x2xAWG22/7, double shielding Protection type: IP20 (plugged in) Cover: PUR green Connector geometry: 2x RJ45 in accordance with IEC 60603-7 RoHS compliant according to EU guideline 2011/65/EU
RJ45 to RJ45
Connectors: 2x HARTING RJ Industrial IP20 Data with over molded connector housing Cable type: flexible system cable, 4-pin, 2x2xAWG26/7, double shielding Protection type: IP20 (plugged in) Cover: PVC green Connector geometry: 2x RJ45 in accordance with IEC 60603-7 RoHS compliant according to EU guideline 2011/65/EU

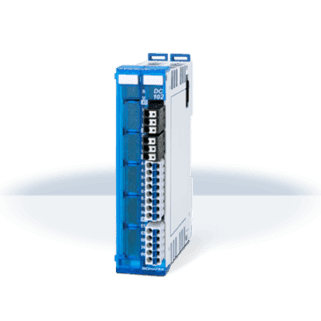

Drives
MDD 111-1 –
1-axis module for DIAS Drive 100 At 230 V AC: 6 A rated or 15 A peak output current At 400/480 V AC: 4 A rated or 9 A peak output current Control of servo, linear, torque and asynchronous motors Resolver, EnDat, Hiperface, Sanyo Denki and Sin/Cos encoders possible
MDD 121-1 –
2-axis module for DIAS Drive 100 At 230 V AC: 6 A max. total current or 18 A max. total peak current At 400/480 V AC: 4 A max. total current or 12 A max. total peak current Control of servo, linear, torque and asynchronous motors Resolver, EnDat, Hiperface, Sanyo Denki and Sin/Cos encoders possible
MDD 2100-DDD-00 –
3-axis unit, supply via DC bus Rated current: 3x 5 A Peak current: 3x 15 A Control of servo motors Single-cable solution: Hiperface DSL Safety integrated: STO, SOS, SS1, SS2, SLS, SSM, SMS, SBC, SBT, SLP, SP, SLI, SCA, SMA, SLA, SDI
MDD 2100-DDD-03 –
3-axis unit, supply via DC bus Rated current: 3x 5 A Peak current: 3x 15 A Control of servo motors Single-cable solution: Hiperface DSL with universal interfaces for encoder variations: EnDat 2.1, Hiperface, Resolver, Sin/Cos, TTL, BiSS-C and Tamagawa Safety integrated: STO, SOS, SS1, SS2, SLS, SSM, SMS, SBC, SBT, SLP, SP, SLI, SCA, SMA, SLA, SDI
