Series Overview
2500 Series® System includes processor solutions in two form factors and two families. Our “Classic” system is completely compatible and interchangeable with the Simatic®/TI 505, while our “Compact” system maintains compatibility but in a much smaller and more modern form factor. Our “C” family of processors are completely compatible with Simatic®/TI 545 and 555 processors – running the same programs and using the same programming software. Our new “Janus” family of processors programs with an entirely new and modern IEC-standard based development system and includes extensive communications capabilities to operate in today’s data-centric applications. Janus Processors are compatible with all your existing 2500 Series® Classic and Compact I/O, as well as Simatic 505 I/O. Janus also includes a feature to emulate CAMP, the HMI/SCADA communications protocol used by the “C” Series processors. These features make it possible to upgrade the processor in an existing application to add new and more modern functionality, while still preserving the existing I/O and HMI/SCADA systems.
Models differ primarily in user memory size, speed of execution, and numbers of analog loops/alarms. All models include built-in Ethernet, USB, and serial communications, as well as support for a removeable SD flash card. Most models also include built-in Profibus-DP and RS485 Remote I/O. Classic and Compact CTI processors are programmed using PLC WorkShop Suite by FasTrak SoftWorks and Janus processors are programmed using Janus Workbench Software or “JSoft.”
2500 Series - Classic, CTI
2500-C100 CPU with
The 2500-C100 CPU provides discrete, analog, loop, advanced mathematical and high-speed sequential control capability for your CTI 2500 Series® or Simatic® 505 control system.

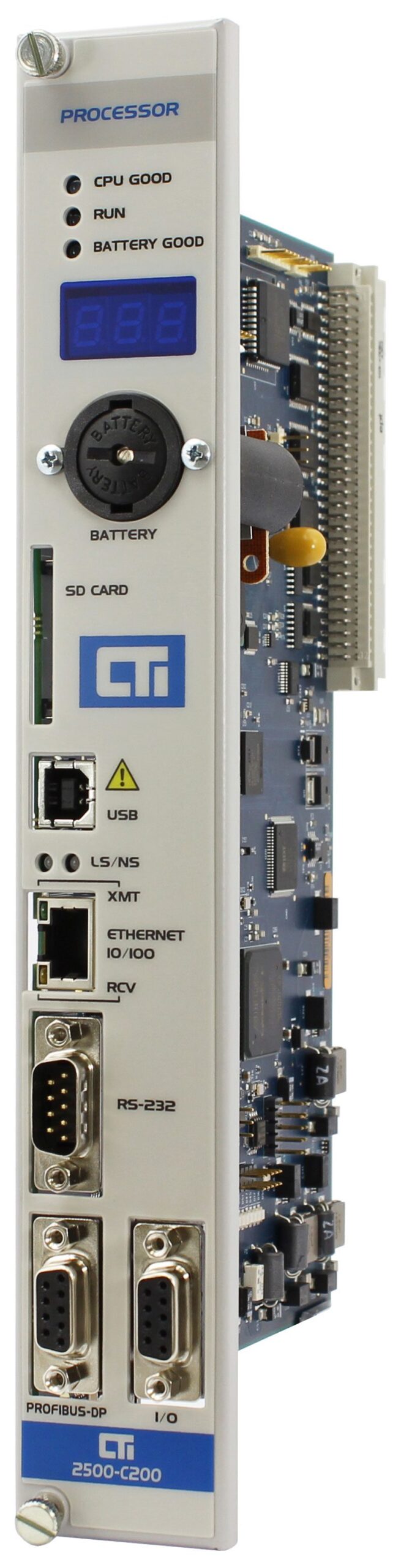

2500-C200 CPU with
The 2500-C200 CPU provides discrete, analog, loop, advanced mathematical, and high-speed sequential control capability for your CTI 2500 Series® or Simatic® 505 control system

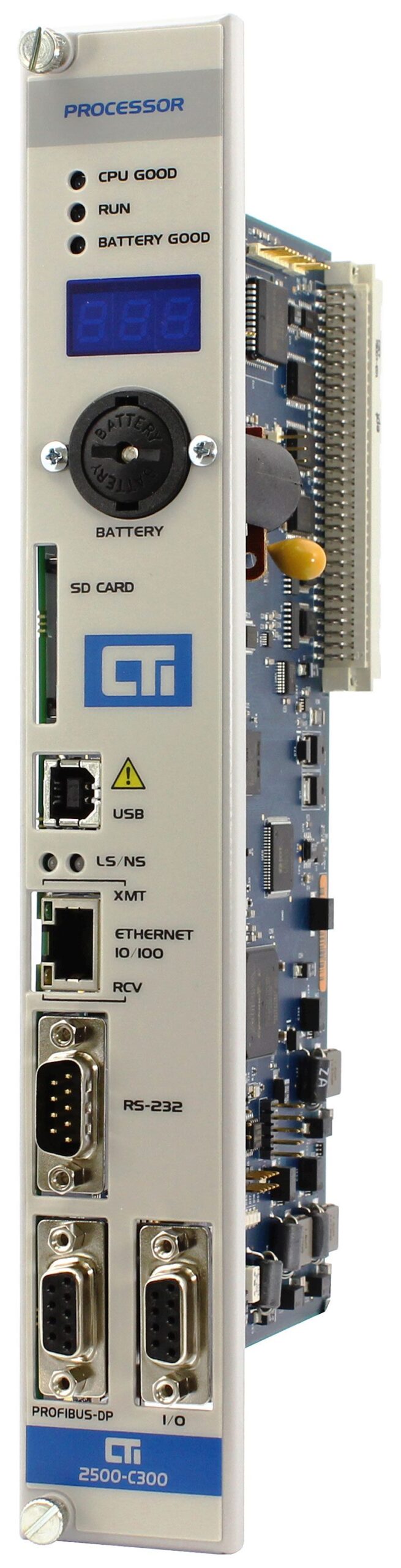

2500-C300 CPU with
The 2500-C300 CPU provides discrete, analog, loop, advanced mathematical, and high-speed sequential control capability for your CTI 2500 Series® or Simatic® 505 control system
2500-C400 CPU with
The 2500-C400 CPU provides discrete, analog, loop, advanced mathematical, and high-speed sequential control capability for your CTI 2500 Series® or Simatic® 505 control system

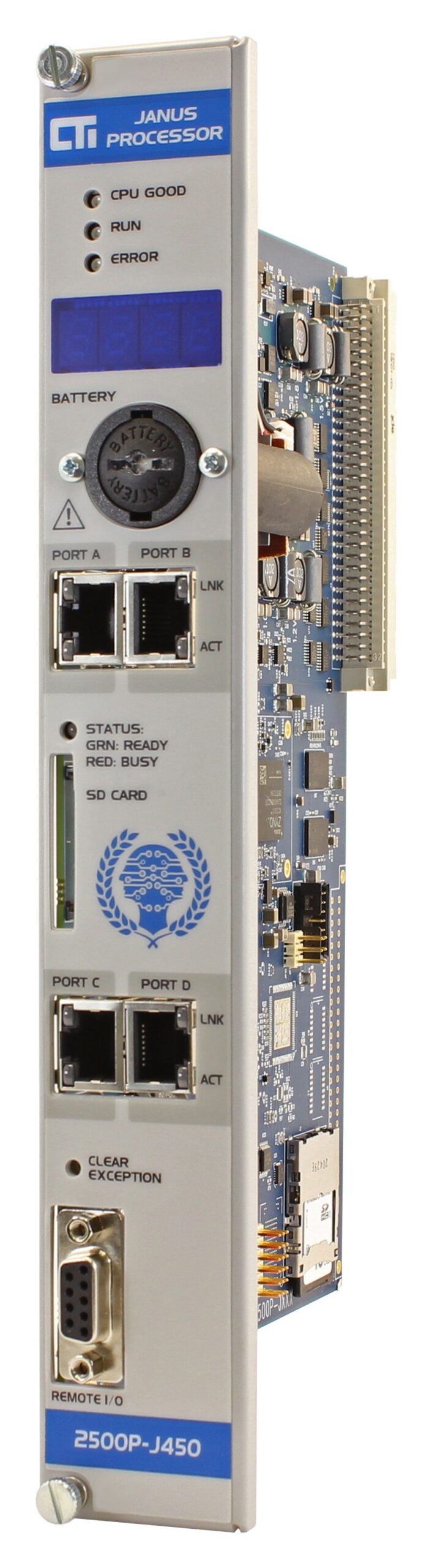

2500P-J450 Janus PAC
Our new family of Janus PACs will bring completely new capabilities to the CTI 2500 Series® System. Designed to work seamlessly with existing Siemens/TI 505® and CTI 2500 Series® Systems as well as to look to the future with state-of-the-art programming, protocols, and capabilities, including direct access to the Industrial Internet of Things (IIoT) using MQTT, these PACs are very fast, agile and optimized for quick, easy and cost-effective communications. Our new Janus PAC includes integrated drivers to a wide variety of protocols, allowing communications with best-in-class I/O, drives, and HMI/SCADA no matter the manufacturer. It also utilizes CTI's budget- and user-friendly new Janus Workbench Software programming package that includes all IEC programming languages. Initially available in our Classic size, this family now includes fully featured Compact versions as well
2500P-J750 Janus PAC
Our new family of Janus PACs will bring completely new capabilities to the CTI 2500 Series® System. Designed to work seamlessly with existing Siemens/TI 505® and CTI 2500 Series® Systems as well as to look to the future with state-of-the-art programming, protocols, and capabilities, including direct access to the Industrial Internet of Things (IIoT) using MQTT, these PACs are very fast, agile and optimized for quick, easy and cost-effective communications. Our new Janus PAC includes integrated drivers to a wide variety of protocols, allowing communications with best-in-class I/O, drives, and HMI/SCADA no matter the manufacturer. It also utilizes CTI's budget- and user-friendly new Janus Workbench Software programming package that includes all IEC programming languages. Initially available in our Classic size, this family now includes fully featured Compact versions as well.
2500 Series - Compact, CTI

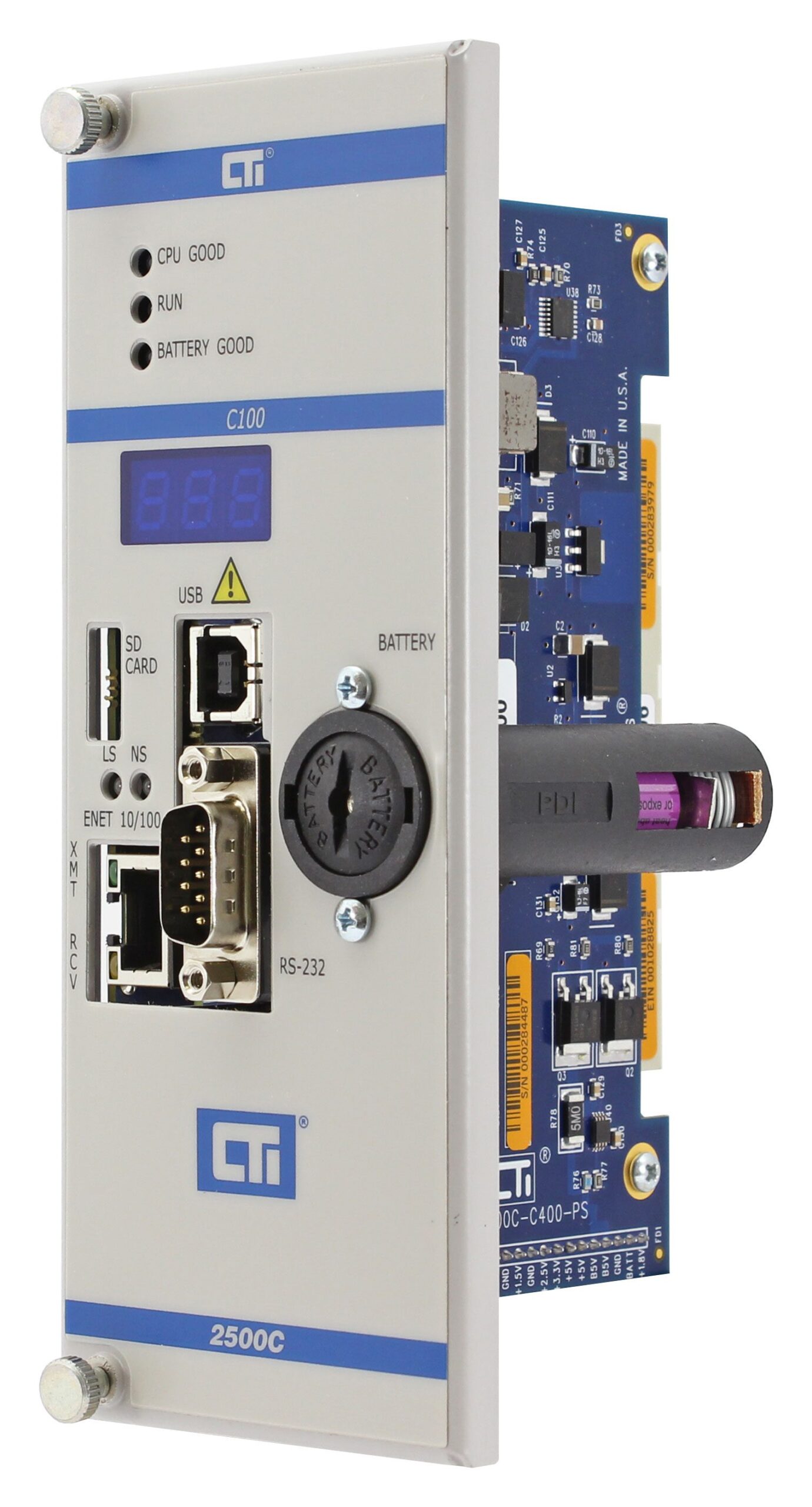

2500C-C100 CPU with
The 2500C-C100 CPU provides discrete, analog, loop, advanced mathematical and high-speed sequential control capability for your CTI 2500 Series® Compact control system.
2500C-C200 CPU with
The 2500C-C200 CPU provides discrete, analog, loop, advanced mathematical, and high-speed sequential control capability for your CTI 2500 Series® Compact control system.

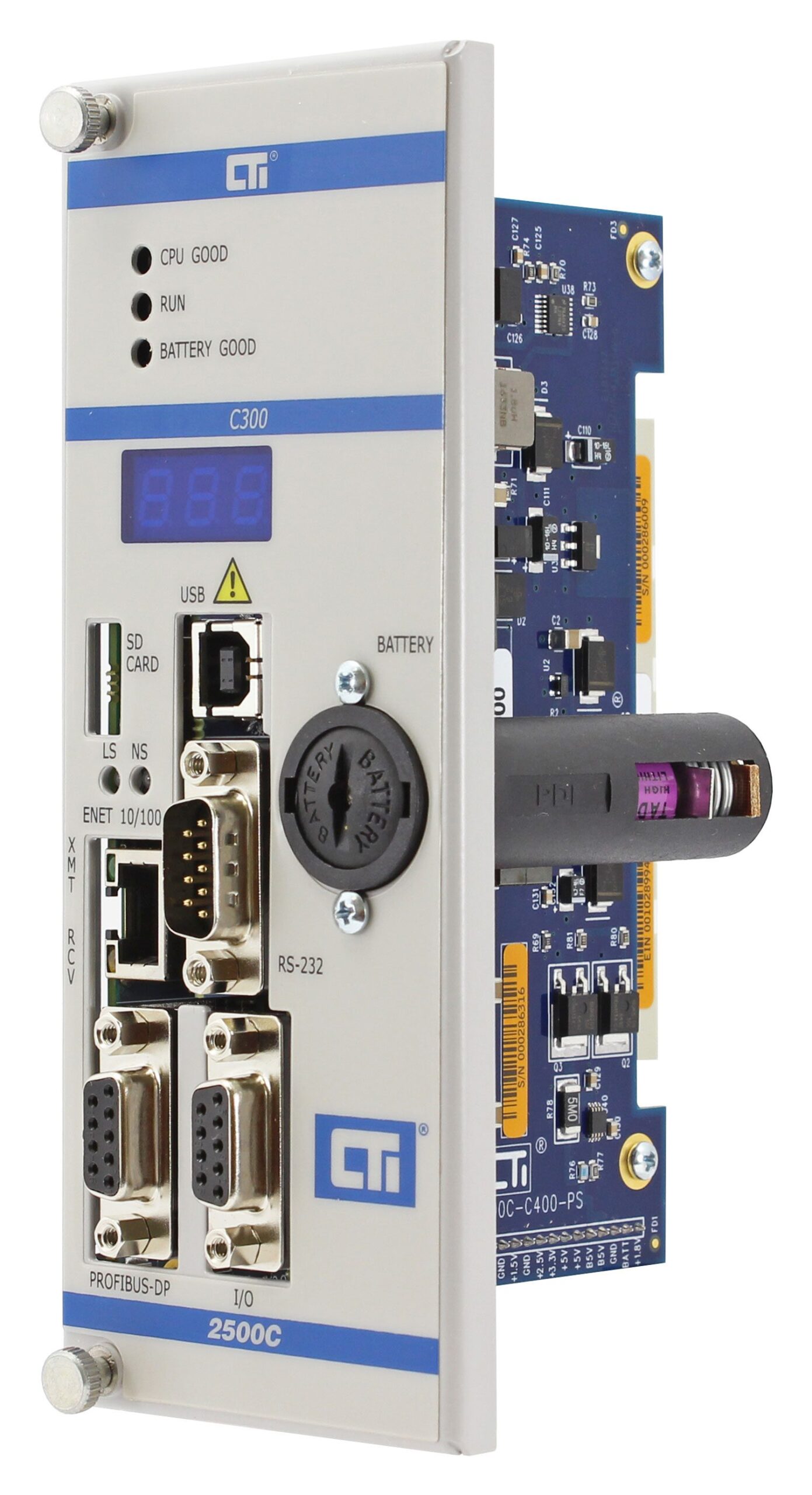

2500C-C300 CPU with
The 2500C-C300 CPU provides discrete, analog, loop, advanced mathematical, and high-speed sequential control capability for your CTI 2500 Series® Compact control system.

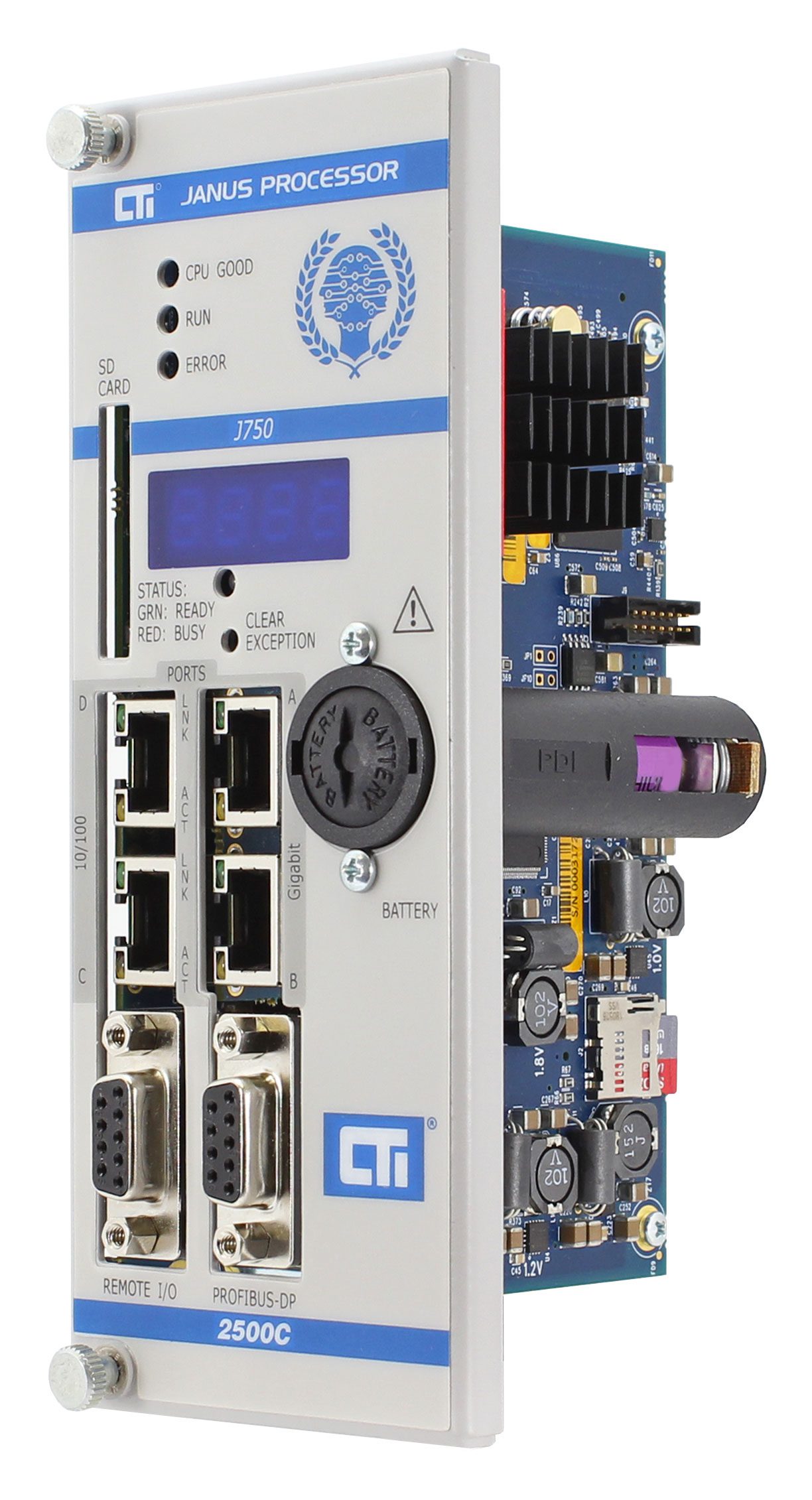

2500C-J750 Compact Janus
Our new family of Compact Janus PACs brings completely new capabilities to the CTI 2500 Series® Compact System. Designed to work seamlessly with existing Siemens/TI 505® and CTI 2500 Series® Systems as well as to look to the future with state-of-the-art programming, protocols, and capabilities, including direct access to the Industrial Internet of Things (IIoT) using MQTT, these PACs are very fast, agile and optimized for quick, easy and cost-effective communications. Our new Janus PAC includes integrated drivers to a wide variety of protocols, allowing communications with best-in-class I/O, drives, and HMI/SCADA no matter the manufacturer. It also utilizes CTI's budget- and user-friendly new Janus Workbench Software programming package that includes all IEC programming languages. Initially available in our Classic size, this family now includes fully featured Compact versions as well.
