I/O Systems
Products Overview
The SIGMATEK I/O Systems open all possibilities – whether in the control cabinet or directly in the field. DIAS stands for “Distributed Automation System”. All series, S-DIAS (IP20), P-DIAS (IP67) and X-DIAS (IP20) have a very high package density, are simple to use and can be flexibly combined.
P-DIAS
PVAI 011 –
For evaluating measuring bridges (e.g. strain gauge load cells) 1 DMS input (M12, 4-wire connection, 12 bits) 1x VARAN In (M12) Protection type: IP65
PVDM 086 –
8 digital short-circuit proof outputs (back-readable/+24 V DC/2 A) Can also be used as digital inputs (+24 V DC/5 mA/5 ms) 1x VARAN In (M12), 1x VARAN Out (M12) Protection type: IP67 Technical Data
S-DIAS
AI 022-1 –
2 analog strain gauge inputs (24 bits) For evaluating measuring bridges (e.g. strain gauge load cells) For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
AI 022 –
2 analog strain gauge inputs (24 bits) For evaluating measuring bridges (e.g. strain gauge load cells) For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

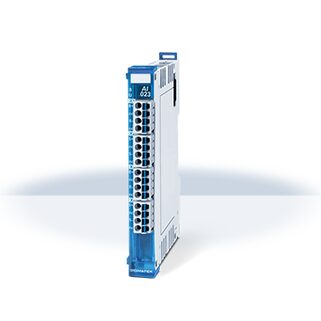

AI 023 –
2 analog resistance or temperature inputs (16 bits) 5 resistance measuring ranges from 0-5000 Ω Supported temperature sensors: PT100/PT1000/NI100/NI1000/diverse KTY Sensor connection with 2 or 4-wire measuring technology possible For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

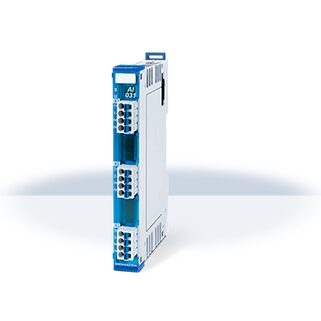

AI 031 –
3 analog current inputs 0-5 A AC current measurement in a low voltage network For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

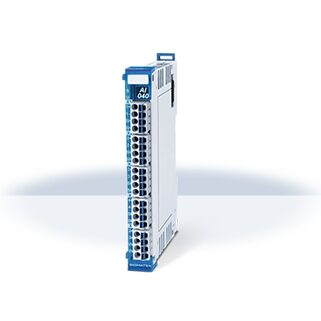

AI 040 –
4 analog inputs with IEPE interface Signal conversion in frequency range of 31 mHz to 20 kHz (16 bits) Max. sampling rate 50 kSPS 5 µs offset between channels Condition Monitoring For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
AI 043 –
4 analog resistance or temperature inputs (16 bits) 5 resistance measuring ranges from 0-5000 Ω Supported temperature sensors: PT100/PT1000/NI100/NI1000/diverse KTY Sensor connection with 2 or 3-wire measuring technology possible For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
AI 046 –
4 analog inputs (18 bits) Measurement range -11 … +11 V or -1.1 … +1.1 V For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
AI 047 –
4 analog current inputs (17 bits) Measurement range of 0-22 mA or 4-22 mA For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

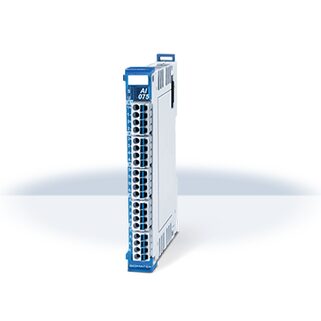

AI 075 –
6 analog inputs (±10 V DC/16 bits) or potentiometer inputs (0-100 %/16 bits) 1 KTY/PT1000 temperature input for potentiometer inputs 1 reference output (+10 V DC/15 mA) For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

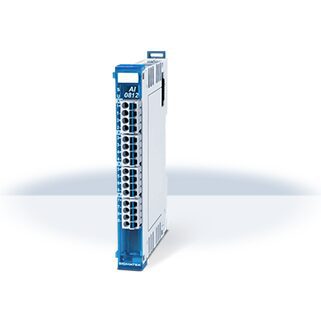

AI 0812 –
8 analog PT1000/KTY resistance temperature sensors (16 bits) For the S-DIAS-System, EPLAN-Makros for simple control cabinet integration are provided.
AI 084 –
8 analog current inputs (16 bits) Measurement range of 0-20 mA or 4-20 mA For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
AI 088-1 –
8 analog thermal element inputs (16 bits) 2 analog inputs for KTY temperature sensors for thermal couple compensation Measurement range -80 ... +1820 °C 0-50 mV For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
AI 088 –
8 analog thermal element inputs (16 bits) 2 analog inputs for KTY temperature sensors for thermal couple compensation Measurement range -80 ... +1820 °C 0-40 mV For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

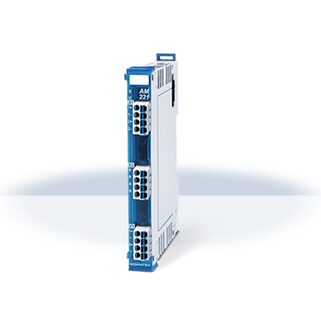

AM 221 –
2 analog inputs (±10 V DC/16 bits) or potentiometer inputs (0-100 %/16 bits) 2 analog outputs (±10 V DC/12 bits) 1 reference output (+10 V DC/5 or 8.3 mA) For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
AM 222 –
2 analog current inputs (16 bits) 2 analog current outputs (12 bits) Measurement or output range of 0-20 mA and 4-20 mA For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

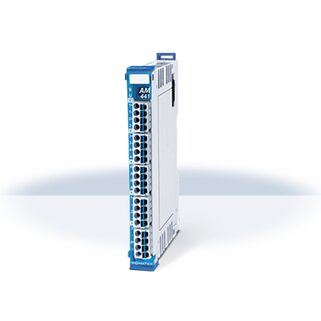

AM 441 –
4 analog inputs (±10 V DC/16 bits) or potentiometer inputs (0-100 %/16 bits) 4 analog outputs (±10 V DC/12 bits) 1 reference output (+10 V DC/10 or 16.7 mA) For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

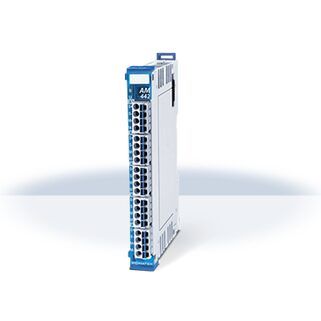

AM 442 –
4 analog current inputs (16 bits) 4 analog current outputs (12 bits) Measurement or output range of 0-20 mA and 4-20 mA For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

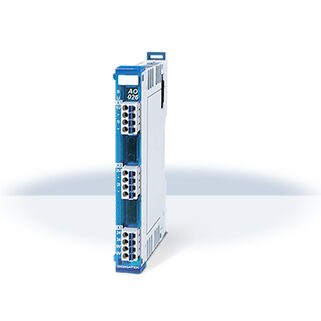

AO 026 –
2 analog outputs Voltage (±10 V DC/16 bits) and current (0-20 mA or 4-20 mA/16 bits) switchable For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

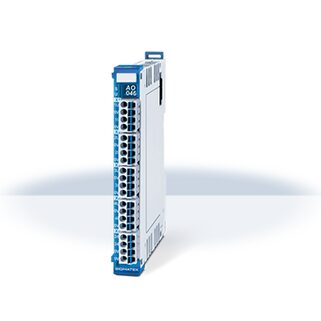

AO 046 –
4 analog outputs Voltage (±10.8 V DC/16 bits) and current (0-21.6 mA/16 bits) switchable For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

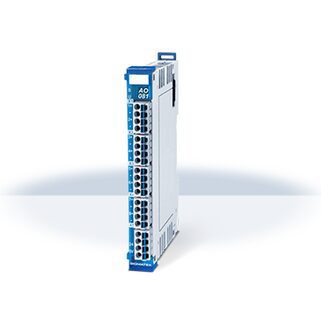

AO 081 –
8 analog outputs (±10 V DC/12 bits) For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

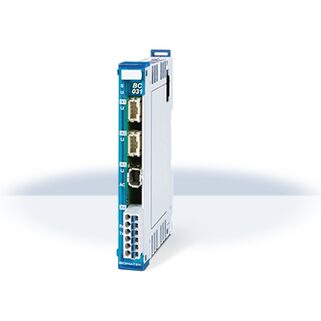

BC 031 –
provides rotation speeds and linear acceleration information in 3 axes data exchange between 2 S2 bus systems 1x Ethernet 1x RS485 For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.

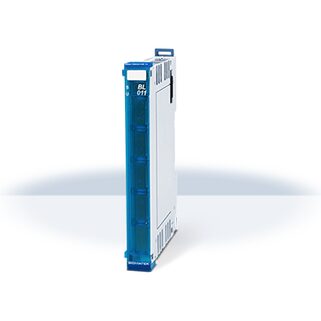

BL 011 –
Place holder for later system extension Works as an active module on the S-DIAS bus
CO 041 –
4 current-controlled outputs / pulse outputs 4 digital inputs +5 V For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
CP 102 CPU
Compact CPU module for small application up to a max. of 12 I/O modules EDGE2 Technology processor OPC UA communication 1x Ethernet*, 1x CAN 1x USB-OTG (On-the-Go) Voltage supply integrated
