Helmholz
Distributed
Fieldbus
I/O System
Products Overview
A Distributed Fieldbus I/O System is a networked setup in industrial automation that distributes input and output (I/O) modules across a facility. Unlike traditional centralized systems, this architecture uses fieldbus communication to connect remote I/O modules to a central control system. It offers scalability, flexibility, and reduced wiring, leading to cost savings and simplified installation. This system enhances reliability by minimizing single points of failure and can be tailored to diverse industrial environments and applications.
Bus couplers

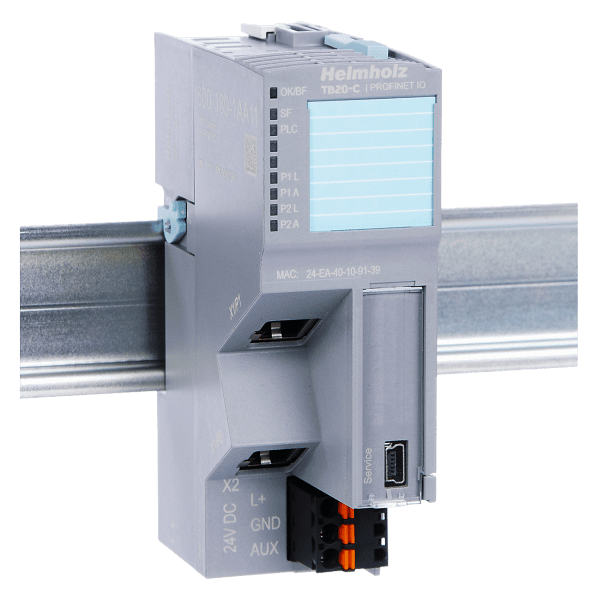

TB20 bus coupler
|
PROFINET PROFIBUS-DP EtherNet/IP EtherCAT DeviceNet Slave Modbus/TCP CANopen |
A functioning TB20 configuration will always require a bus coupler and at least one peripheral module. Note: Individual modules cannot be combined with the IO systems of other manufacturers.
- Select options This product has multiple variants. The options may be chosen on the product page
Input/Output Modules

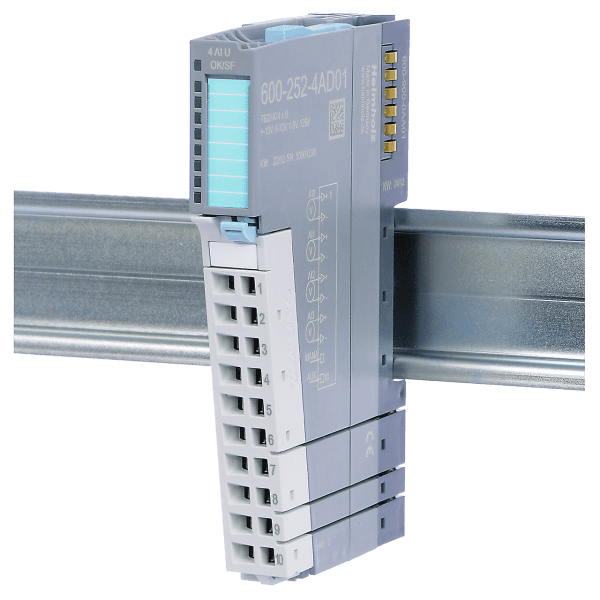

Analog-input-module, I, 12
|
2x 4x |
Analog input modules for the modular fieldbus IO system TB20. Note: Individual modules cannot be combined with IO systems from other manufacturers.
- Select options This product has multiple variants. The options may be chosen on the product page

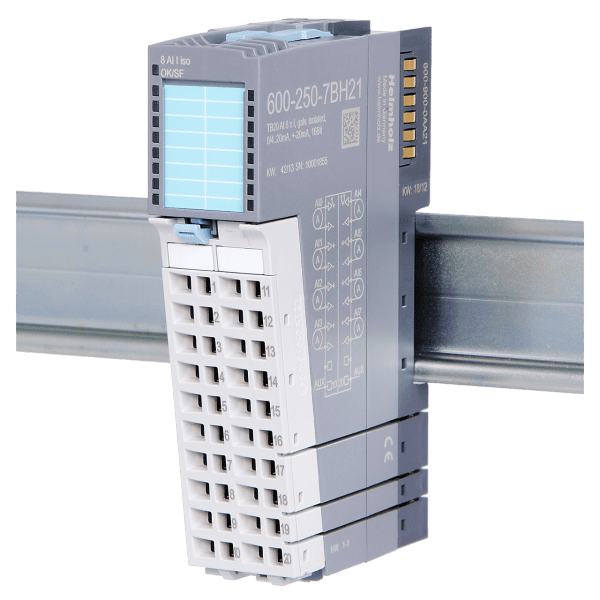

Analog-input-module, I, 16
|
2x 4x 8x |
Analog input modules for the modular fieldbus IO system TB20. Note: Individual modules cannot be combined with IO systems from other manufacturers.
- Select options This product has multiple variants. The options may be chosen on the product page
Analog-input-module, RTD, 16
|
8x 1 / 2x 2 / 4x |
Analog input modules for the modular fieldbus IO system TB20. Note: Individual modules cannot be combined with IO systems from other manufacturers.
- Select options This product has multiple variants. The options may be chosen on the product page
