Our customers come from the most varying industries. In addition to classic machine and equipment manufacturing, manufacturers of energy technology systems have also been counted among our customer base for almost 30 years. Several customers are also active in measuring, control and regulation technology. For these industry sectors, we have developed branch-specific products and solutions.
Energy Automation
HZS 351 –
Visualize, operate and monitor 3.5" TFT color display, single-touch (analog resistive), 320 x 240 pixels, data exchange via CAN +230 V AC supply voltage Internal temperature sensor (0 … +50 °C/12 bits) Display deactivated in idle mode

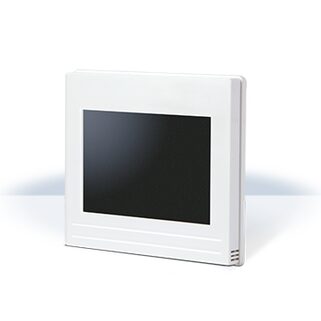

HZS 352 –
Visualize, operate and monitor 3.5" TFT color display, single-touch (analog resistive), 320 x 240 pixels, data exchange via CAN +24 V DC supply voltage Internal temperature sensor (0 … +50 °C/12 bits) Display deactivated in idle mode

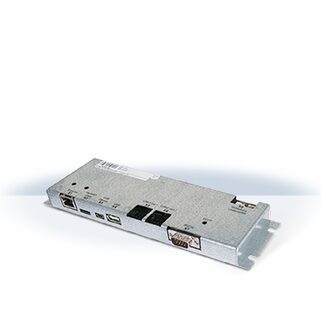

HZS 512 –
For control of automation processes in the heating system High-performance EDGE Technology processor 1x Ethernet, 2x CAN, 2x USB, RS232 MicroSD card as storage medium for the operating system, applications and application data Program can be updated via USB
HZS 521-1 –

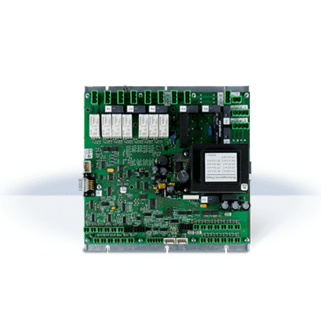

Runs automated processes in the heating system Communication with CPU via CAN bus For worm gear motors, pumps, mixers, lambda sensors etc. 6 analog relay and 2 triac outputs 7 analog and 15 digital inputs, 10 temperature inputs, 1 analog output

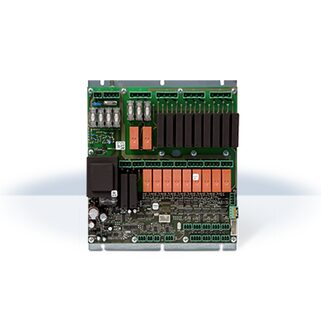

HZS 525 –
For controlling a wood chip system Communication with CPU via CAN bus For worm gear motors, temperature sensors, pumps, mixers etc. 6 relay and 3 triac outputs 400 V AC, 2 triac outputs 230 V AC 5 analog and 11 digital inputs
HZS 532-2 –

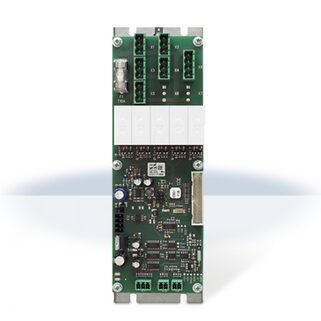

Controller for up to 5 internal expansion modules Communication with CPU via CAN bus For pumps and mixers 5 relay outputs 2 analog and 1 room control device input
HZS 533-3 –
For controlling a heating circuit Communication with expansion controller via internal bus For pumps and mixers 3 relay outputs 2 analog and 1 room control device input

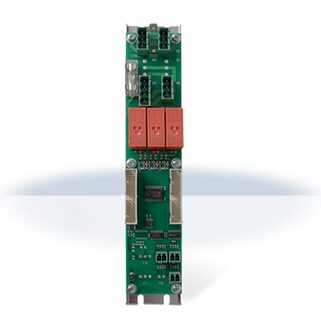

HZS 534 –
For controlling a buffer or boiler Communication with expansion controller via internal bus For pumps and mixers 3 relay outputs 3 analog inputs

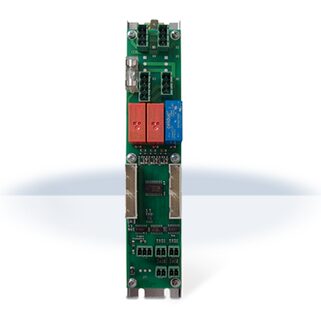

HZS 535 –
For controlling a photovoltaic system Communication with expansion controller via internal bus For pumps and mixers 2 relay and 1 triac output 4 analog an 1 digital input

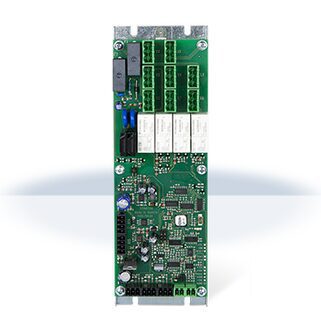

HZS 536-1 –
Runs automated processes in the heating system Communication with CPU via CAN bus For worm gear motors, pumps, mixers etc. 4 relay and 2 triac outputs 2 analog outputs and 3 digital inputs
HZS 537-1 –

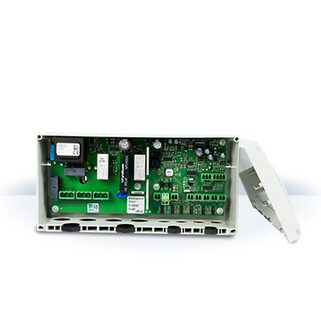

For external control of a photovoltaic system Communication with CPU via CAN bus For pumps and mixers 1 relay and 1 triac output 6 analog and 1 digital input

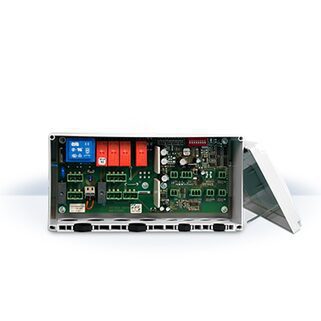

HZS 541-1S –
For external control of a heating circuit, buffers, boilers or a photovoltaic system Communication with CPU via CAN bus For pumps and mixers 4 relay outputs 3 analog and 1 room device input, 1 digital input

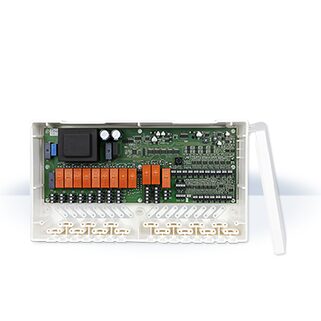

HZS 5420 –
For control of automation processes in the heating system High-performance EDGE Technology processor 1x Ethernet, 2x CAN, 2x USB, RS232 MicroSD card as storage medium for the operating system, applications and application data Program can be updated via USB

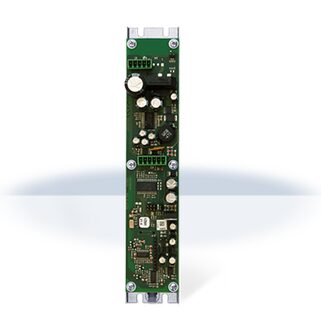

HZS 561 –
Lambda sensor interface control Coverts LSU4.9 input signal to LSM11 output signal
HZS 562 –

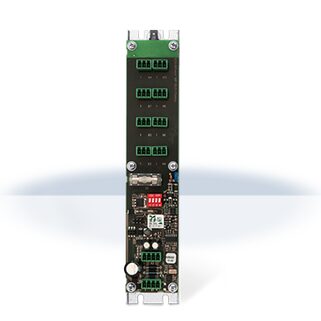

Interface between CAN and MP bus system For up to 8 MP bus participants Communication with CPU via CAN

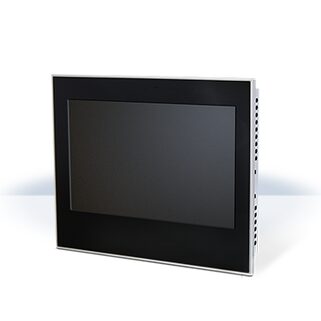

HZS 732 –
Visualize, operate and monitor 7" TFT color display, multi-touch (projected capacitive), widescreen 800 x 480 pixels High-performance EDGE2 Technology processor Several standard integrated interfaces With multi-touch technology, the handling of machines and equipment is simpler and more intuitive. Familiar gestures from the consumer world such as zooming, scrolling or other multi-finger movements provide a better operating feeling and comfort.

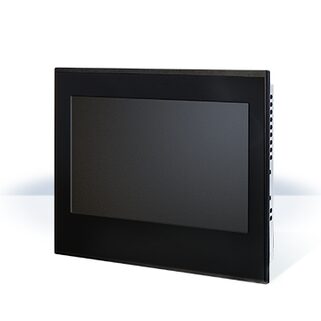

HZS 7321 –
Visualize, operate and monitor 7" TFT color display, multi-touch (projected capacitive), widescreen 800 x 480 pixels High-performance EDGE2 Technology processor M-Bus Several standard integrated interfaces With multi-touch technology, the handling of machines and equipment is simpler and more intuitive. Familiar gestures from the consumer world such as zooming, scrolling or other multi-finger movements provide a better operating feeling and comfort.
HZS 771 –
Visualize, operate and monitor 7" TFT color display, single-touch (analog resistive), widescreen 800 x 480 pixels High-performance EDGE2 Technology processor, 256 kB SRAM Several standard integrated interfaces e.g.: 1x CAN, 1x RS485 and 1x RS232

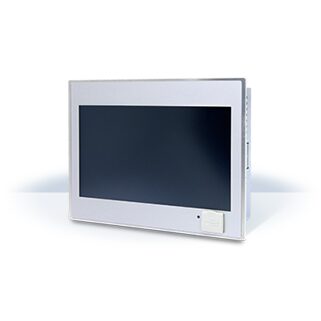

HZS 772 –
Visualize, operate and monitor 7" TFT color display, single-touch (analog resistive), widescreen 800 x 480 pixels High-performance EDGE2 Technology processor Several standard interfaces (including M-bus) integrated
HZS 774 –
Visualize, operate and monitor 7" TFT color display, single-touch (analog resistive), widescreen 800 x 480 pixels High-performance EDGE2 Technology processor, 512 kB SRAM Several standard interfaces integrated e.g.: 2x CAN and 1x RS232
LRS-150-24 – Switching
The switching power supply is a 150 W supply with 30 mm of low profile design. Adopting the input of 115 V AC or 230 V AC (selectable by switch), it provides an output voltage line of 24 V.
FTS / AMR Automation
S-DIAS – Control,
The control and automation technology used in mobile system components must meet high demands. In addition to process control, mathematical tasks must often be performed to implement the motion commands of the primary control. Freely navigating systems must also constantly check the traveled route using magnetic points, laser reflectors or optical features in the environment. S-DIAS, the modular automation system in pocket format, provides a variety of modules for automated guided vehicle systems – whether control electronics, safety or drive technology – and that combined on one software platform. In the standard version, an S-DIAS module measures 12.5 x 104 x 72 mm. The clever mechanical interlocking ensures high mechanical stability, which is especially important for AGVs.
SlamLoc – SLAM-Navigation
The real-time localization software SlamLoc revolutionizes the way automated guided vehicle systems (AGV) and autonomous mobile robots (AMR) handle changes in their environment using contour-based navigation. SlamLoc creates the map of the environment as a basis for route planning during the initial teaching cycle. If a “foreign object” is detected during further travel, is taken into account and is used for position determining. The position, i.e. the X/Y coordinates, as well as the direction in which the vehicle is oriented, can be determined much more accurately as would be possible by simply extrapolating using the drive data.

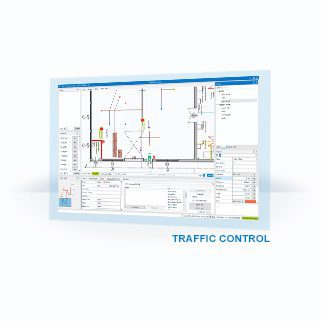

Traffic Control System
The SIGMATEK TCS (Traffic Control System) is a vehicle manufacturer-independent, open fleet management system for Automated Guided Vehicle systems (AGV) and Autonomous Mobile Robots (AMR), which uses standardized interfaces for communication between the vehicle and guidance control.
Measuring Technology

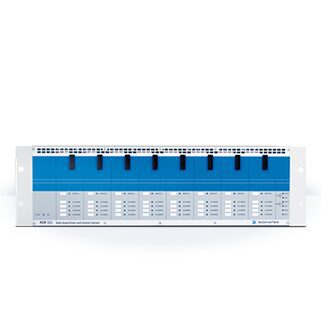

MSR 111 –
Connects up to 8 I/O modules with the LVDS bus 1 slot for interface module 1 slot for fan module Diagnostic connector on every module slot

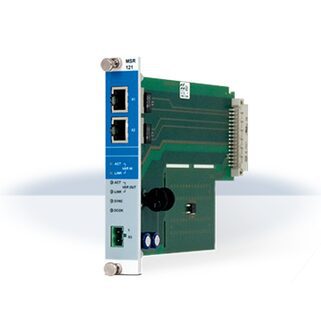

MSR 121 –
1x VARAN In (RJ45) 1x VARAN Out (RJ45) for connecting to other VARAN participants Inrush current limit
MSR 131 –

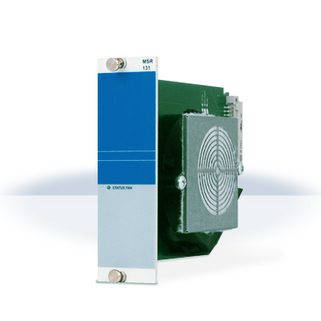

Exchangeable fan unit Side intake DC radial fan Controls the fan via MSR 111 module carrier
MSR 211 –
Analog base module for max. 4 signal conditioning modules Provides short-circuit proof, galvanically separated +24 V DC supply voltage Supply voltage can be shut off and has a 100 mA load capacity per channel.
MSR 221 –

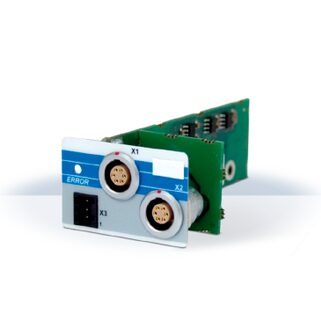

2 analog inputs (±10 V DC/16-bit) for voltage measuring Reference voltage (+10 V DC/10 mA) Processed signals on the diagnostic connector measurable (not calibratable)

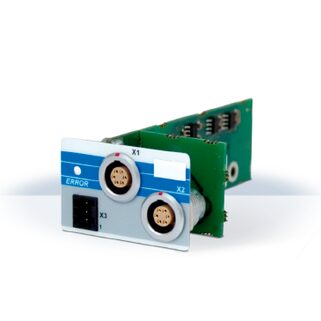

MSR 222 –
2 analog inputs (0-20 mA/16 bits) for measuring current Reference voltage (+10 V DC/10 mA) Processed signals on the diagnostic connector measurable (not calibratable)
MSR 223 –
2 analog inputs (16 bits) for measuring temperature Measurement range -200 ... +250 °C Processed signals on the diagnostic connector measurable (not calibratable)

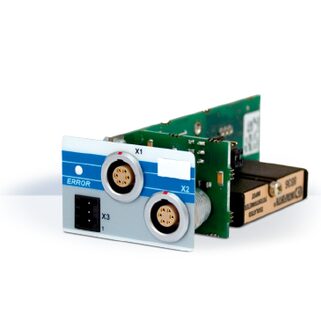

MSR 231 –
Carrier module for Dataforth 8B signal conditioning 2 analog inputs (16 bits) various measurement values Processed signals on the diagnostic connector measurable (not calibratable)
MSR 241 –
8 analog outputs (±10 V DC/16 bits) Processed signals on the diagnostic connector measurable (not calibratable)
MSR 251 –
2 counter or SSI absolute value encoder with RS422 signal (max. 32 bits) Channel configurable as counter or SSI interface (via software) Supports non-coded and Gray coded SSI encoders

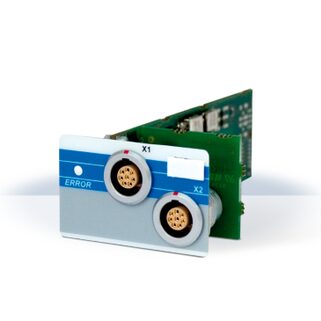

MSR 261 –
2 ABR counters with RS422 signal (16 bits) Encoder power supply +5 V DC

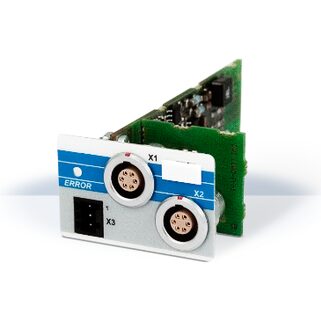

MSR 281 –
For evaluating measuring bridges (e.g. strain gauge load cells) 2 strain gauge inputs (16 bits) Measurement range 3 mV/V
MSR 282 –
For evaluating measuring bridges (e.g. strain gauge load cells) 2 strain gauge inputs (16 bits) Measurement range 10 mV/V
MSR 311 –
24 digital short-circuit proof outputs (back-readable/+24 V DC/2 A) Can be used in groups of 4 as digital inputs (+24 V DC/5 ms/5 mA)
Remote Access
RAE 100 –
Secure remote maintenance over VPN Integration into Remote Access Platform (RAP) without additional hardware Operating system extension for Salamander platforms (currently not supported by CP 102, CP 731 and CP 733) Including SIGMATEK Remote Access Platform usage

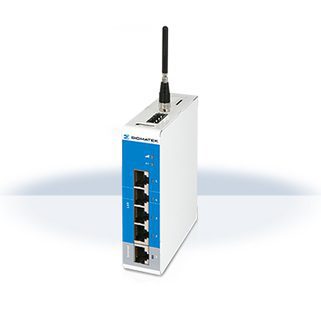

RAR 2400 –

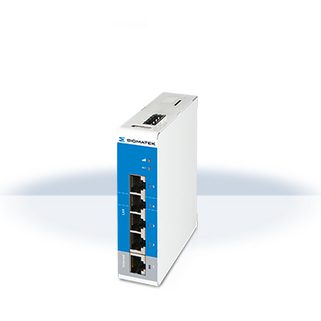

Secure remote maintenance over VPN Machine or system visualization can be operated through VNC: software updates, debugging and maintenance Ethernet - global 5x GbE (4x LAN, 1x WAN) 1x USB 2.0 USB stick for configuration and connection to RAP included 8 GB Flash DIN rail mountable
RAR 2405 –
Secure remote maintenance over VPN Machine or system visualization can be operated through VNC: software updates, debugging and maintenance 4G Global 5x GbE (4x LAN, 1x WAN) 1x USB 2.0 USB stick for configuration and connection to RAP included DIN rail mountable Antennas: not included in delivery available antennas: RAR 2201/2202/2203/2205/2206 - see accessories
RAR 2410 –
Secure remote maintenance over VPN Machine or system visualization can be operated through VNC: software updates, debugging and maintenance Wi-Fi - global 5x GbE (4x LAN, 1x WAN) 1x USB 2.0 USB stick for configuration and connection to RAP included DIN rail mountable Antennas: not included in delivery available antennas: RAR 2210/2211 - see accessories

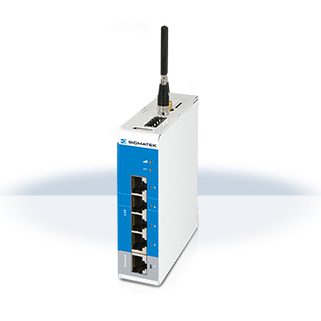

RAR 2415 –
Secure remote maintenance over VPN Machine or system visualization can be operated through VNC: software updates, debugging and maintenance Wi-Fi + 4G Global 5x GbE (4x LAN, 1x WAN) 1x USB 2.0 USB stick for configuration and connection to RAP included DIN rail mountable Antennas: not included in delivery available antennas: RAR 2201/2202/2203/2205/2206/2210/2211 - see accessories
