Products Overview
Whether for classic operating or modern visualization concepts – with the HMIs from SIGMATEK, your machines cut a good figure in any situation. Our human-machine interfaces are compactly designed and fanless. You have the choice between panels with a processor and remote operating units without a processor (HMI-Link up to 100 m).
15″ – 23.8″ Panels
ETT 1533 –
Built-in panel for visualization, operation and monitoring 15" TFT color display, multi-touch PCT (projective capacitive), 1024 x 768 pixels High-performance EDGE2 Technology processor OPC UA communication 8 digital in and outputs each, as well as several integrated standard interfaces IP65 protection (front) With the Safety Input Box SIB 061, signals from up to 3 Safety-oriented command and signaling devices can be read. The SIB 061 can be easily mounted on the back of the ETT multi-touch operating panels. For this operating panel it is optionally possible to laser your company logo and backlight it monochromatically.
ETT 1534 –
Built-in panel for visualization, operation and monitoring 15.6" TN color display, multi-touch PCT (projective capacitive), 1366 x 768 pixels High-performance EDGE2 Technology processor OPC UA communication IP65 protection (front)
ETT 1544 –
Built-in panel for visualization, operation and monitoring 15.6" TN color display, multi-touch PCT (projective capacitive), 1366 x 768 pixels High-performance Intel Celeron processor OPC UA communication IP65 protection (front)

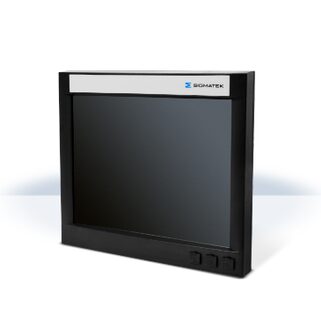

ETT 1561 –
Mountable panel for visualization, operation and monitoring 15" TFT color display, single-touch (analog resistive), 1024 x 768 pixels High-performance EDGE2 Technology processor OPC UA communication IP54 protection (front)
ETT 1834 –
Built-in panel for visualization, operation and monitoring 18.5" TFT color display, multi-touch PCT (projective capacitive), 1366 x 768 pixels High-performance EDGE2 Technology processor OPC UA communication IP65 protection (front)
ETT 1844 –
Built-in panel for visualization, operation and monitoring 18.5" TFT color display, multi-touch PCT (projective capacitive), 1366 x 768 pixels High-performance Intel Celeron processor OPC UA communication IP65 protection (front)

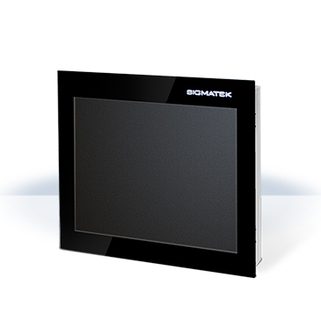

ETT 1933 –
Built-in panel for visualization, operation and monitoring 19" TFT color display, multi-touch PCT (projective capacitive), 1280 x 1024 pixels High-performance EDGE2 Technology processor OPC UA communication 8 digital in and outputs each, as well as several integrated standard interfaces IP65 protection (front) With the Safety Input Box SIB 061, signals from up to 3 Safety-oriented command and signaling devices can be read. The SIB 061 can be easily mounted on the back of the ETT multi-touch operating panels. For this operating panel it is optionally possible to laser your company logo and backlight it monochromatically.

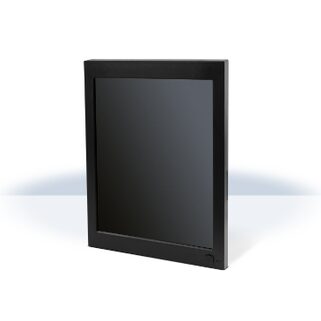

ETT 1962 –
Mountable panel for visualization, operation and monitoring in vertical format 19" TFT color display, single-touch (analog resistive), 1024 x 1280 pixels High-performance EDGE2 Technology processor OPC UA communication Several standard integrated interfaces IP54 protection (front)

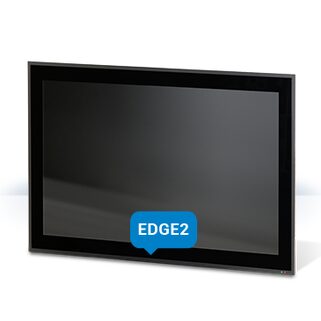

ETT 2134 –
Built-in panel for visualization, operation and monitoring 21.5" TFT color display, multi-touch PCT (projective capacitive), 1920 x 1080pixels High-performance EDGE2 Technology processor OPC UA communication IP65 protection (front)
ETT 2144 –
Built-in panel for visualization, operation and monitoring 21.5" TFT color display, multi-touch PCT (projective capacitive), 1920 x 1080pixels High-performance Intel Celeron processor OPC UA communication IP65 protection (front)
ETT 2154-W –
Built-in panel for visualization, operation and monitoring 21.5" TFT color display, multi-touch PCT (projective capacitive), 1920 x 1080pixels High-performance Intel Celeron processor OPC UA communication IP65 protection (front) Windows 10 IoT, Operating system
TAE 151 –
Mountable panel for visualization, operation and monitoring 15" TFT color display, single-touch (analog resistive), 1024 x 768 pixels Several standard integrated interfaces IP54 protection (front with USB cover)
TAE 1921 –
Mountable panel for visualization, operation and monitoring in vertical format 19" TFT color display, single-touch (analog resistive), 1024 x 1280 pixels Loss-free transmission of signals up to 100 meters through HMI-Link technology 2x USB 2.0, 1x chip card reader (optional) IP54 protection (front) HMI-Link One cable, more power and long distances – those are the advantages of HMI-Link technology, which was developed for remote solutions. With a standard Cat5e cable, DVI, audio and USB signals can be transmitted without loss between the operating panel and 400 series control cabinet PC (full HD). HMI-Link is based on a complete hardware solution and is operating system independent. The HMI-Link panels have no internal main processor and are therefore more mechanically robust and economic.

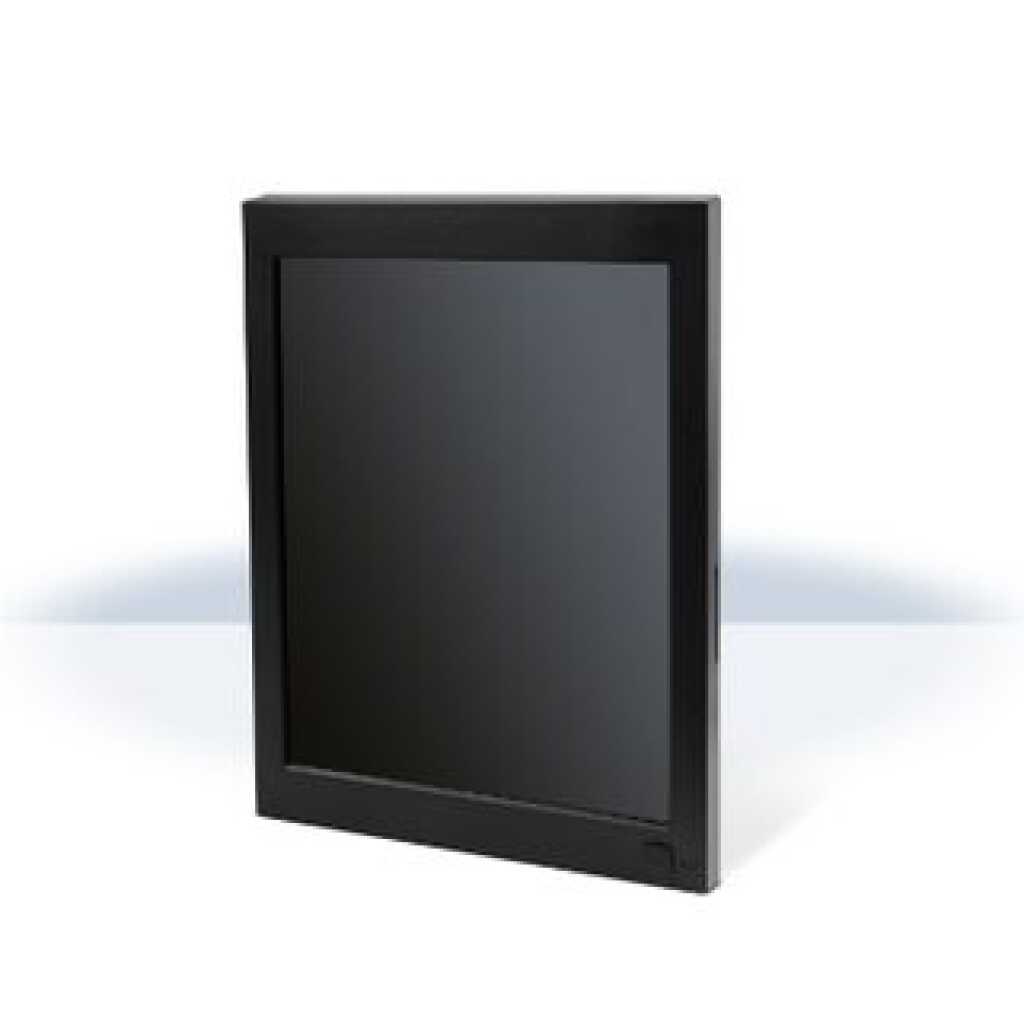

TAE 1931 –
Mountable panel for visualization, operation and monitoring in vertical format 19" TFT color display, single-touch (analog resistive), 1024 x 1280 pixels 3x USB 2.0, 1x chip card reader(optional) Protection type IP54 (Front)
TAE 1941 –
Visualize, operate and monitor in vertical format 19" TFT color display, single-touch (analog resistive), 1024 x 1280 pixels Loss-free transmission of signals up to 100 meters through HMI-Link G2 technology 2x USB 2.0 Type A (front and rear side) Protection type IP54 (Front) HMI-Link One cable, more power and long distances – those are the advantages of HMI-Link technology, which was developed for remote solutions. With a standard Cat5e cable, DVI, audio and USB signals can be transmitted without loss between the operating panel and 400 series control cabinet PC (full HD). HMI-Link is based on a complete hardware solution and is operating system independent. The HMI-Link panels have no internal main processor and are therefore more mechanically robust and economic.
TAE 2144 –
Built-in panel for visualization, operation and monitoring 21.5" TFT color display, multi-touch PCT (projective capacitive), 1920 x 1080 pixels HMI-Link G2 (100 m) IP65 protection (front)

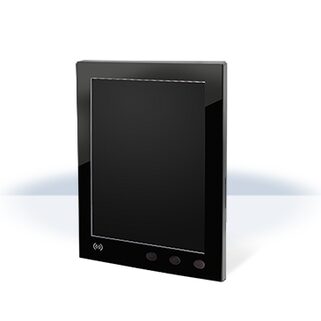

TAE 2343 –
Swing arm panel for visualization, operation and monitoring in vertical format 23,8" TFT color display, multi-touch (projective capacitive), 1920 x 1080 pixels Loss-free transmission of signals up to 100 meters through HMI-Link G2 technology IP54 protection (Front) Swing arm mount with VESA75

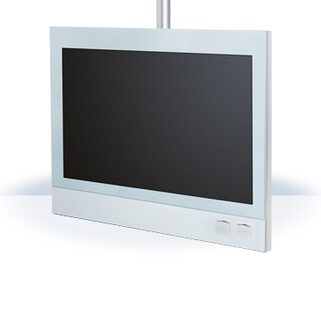

TT 1533 –
Swing arm panel for visualization, operation and monitoring 15" TFT color display, multi-touch (projective capacitive), 1024 x 768 pixels High-performance dual-core EDGE2 Technology processor OPC UA communication IP54 protection (Front) Swing arm mount with VESA75

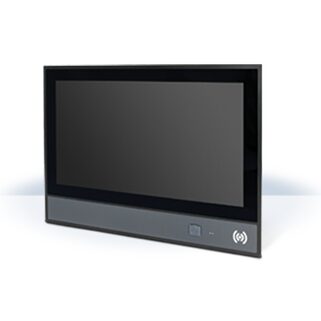

TT 1564 –
Swing arm panel for visualization, operation and monitoring 15.6" TFT color display, multi-touch (projective capacitive), 1920 x 1080 pixels High-performance quad-core EDGE3 Technology processor OPC UA communication IP65 protection (Front) Swing arm mount with VESA100

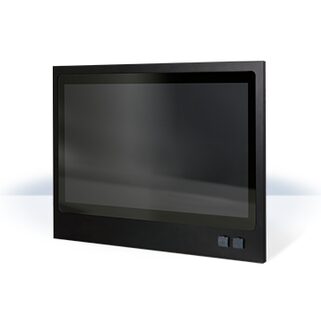

TT 1933-S –
Swing arm panel for visualization, operation and monitoring 18,5" TFT color display, multi-touch (projective capacitive), 1366 x 768 pixels High-performance Dual-Core EDGE2 Technology processor IP54 protection (Front) Swing arm mount with VESA75 and VESA100
3.5″ – 12.1″ Panels

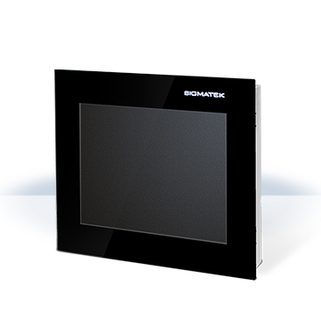

ETT 0833 –
Built-in panel for visualization, operation and monitoring 8.4" TFT color display, multi-touch PCT (projective capacitive), 800 x 600 pixels High-performance EDGE2 Technology processor OPC UA communication 8 digital in and outputs each, as well as several integrated standard interfaces IP65 protection (front) With the Safety Input Box SIB 061, signals from up to 3 Safety-oriented command and signaling devices can be read. The SIB 061 can be easily mounted on the back of the ETT multi-touch operating panels. For this operating panel it is optionally possible to laser your company logo and backlight it monochromatically.
ETT 1033 –
Built-in panel for visualization, operation and monitoring 10.4" TFT color display, multi-touch PCT (projective capacitive), 1024 x 768 pixels High-performance EDGE2 Technology processor OPC UA communication 8 digital in and outputs each, as well as several integrated standard interfaces IP65 protection (front) With the Safety Input Box SIB 061, signals from up to 3 Safety-oriented command and signaling devices can be read. The SIB 061 can be easily mounted on the back of the ETT multi-touch operating panels. For this operating panel it is optionally possible to laser your company logo and backlight it monochromatically.
ETT 1034 –
Built-in panel for visualization, operation and monitoring 10.1" TFT color display, multi-touch PCT (projective capacitive), 1280 x 800 pixels High-performance EDGE2 Technology processor OPC UA communication IP65 protection (front)
ETT 1044 –
Built-in panel for visualization, operation and monitoring 10.1" TFT color display, multi-touch PCT (projective capacitive), 1280 x 800 pixels High-performance Intel Celeron processor OPC UA communication IP65 protection (front)

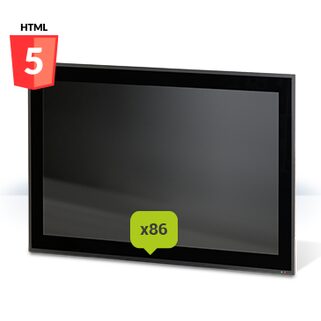

ETT 1054-W –
Built-in panel for visualization, operation and monitoring 10.1" TFT color display, multi-touch PCT (projective capacitive), 1280 x 800 pixels High-performance Intel Celeron processor J5005 OPC UA communication IP65 protection (front) Windows 10 IoT, Operating system
ETT 1064 –
Built-in panel for visualization, operation and monitoring 10.1" TFT color display, multi-touch (projective capacitive), wide screen 1280 x 800 pixels High-performance EDGE3 Technology processor OPC UA communication Several standard integrated interfaces IP65 protection (front) IP20 protection (cover) With multi-touch, the handling of machines and equipment is simpler and more intuitive. Familiar gestures from the consumer world such as zooming, scrolling or other multi-finger movements provide a better operating feeling and comfort.
ETT 1233 –
Built-in panel for visualization, operation and monitoring 12.1" TFT color display, multi-touch PCT (projective capacitive), 1024 x 768 pixels High-performance EDGE2 Technology processor OPC UA communication 8 digital in and outputs each, as well as several integrated standard interfaces IP65 protection (front) With the Safety Input Box SIB 061, signals from up to 3 Safety-oriented command and signaling devices can be read. The SIB 061 can be easily mounted on the back of the ETT multi-touch operating panels. For this operating panel it is optionally possible to laser your company logo and backlight it monochromatically.
ETT 1234 –
Built-in panel for visualization, operation and monitoring 12.1" TN color display, multi-touch PCT (projective capacitive), 1280 x 800 pixels High-performance EDGE2 Technology processor OPC UA communication IP65 protection (front)
ETT 1244 –
Built-in panel for visualization, operation and monitoring 12.1" TN color display, multi-touch PCT (projective capacitive), 1280 x 800 pixels High-performance Intel Celeron processor OPC UA communication IP65 protection (front)

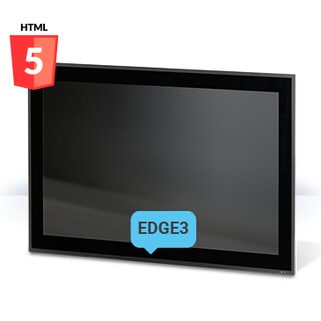

ETT 1264 –
Built-in panel for visualization, operation and monitoring 12.1" TFT color display, multi-touch (projective capacitive), wide screen 1280 x 800 pixels High-performance EDGE3 Technology processor OPC UA communication Several standard integrated interfaces IP65 protection (front) IP20 protection (cover) With multi-touch, the handling of machines and equipment is simpler and more intuitive. Familiar gestures from the consumer world such as zooming, scrolling or other multi-finger movements provide a better operating feeling and comfort.

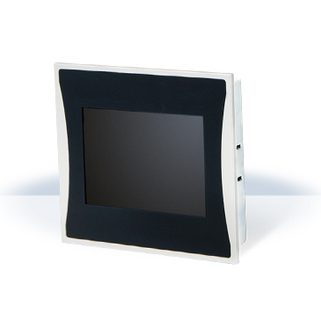

ETT 312 –
Built-in panel for visualization, operation and monitoring 3.5" LC graphic display, single-touch (analog resistive), 320 x 240 pixels Data exchange via CAN IP65 protection (front)

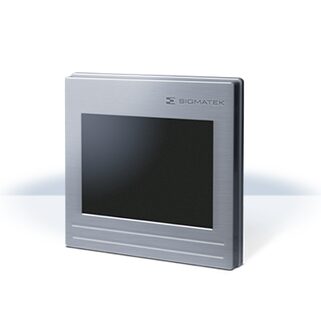

ETT 352 –
Built-in panel for visualization, operation and monitoring 3.5" TFT color display, single-touch (analog resistive), 320 x 240 pixels Data exchange via CAN Display deactivated in idle mode IP30 protection

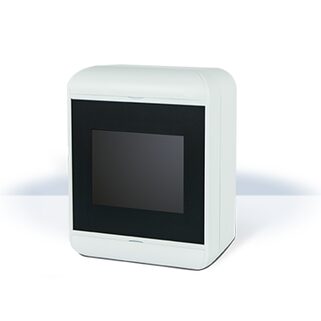

ETT 353 –
Mountable panel for visualization, operation and monitoring 3.5" TFT color display, single-touch (analog resistive), 320 x 240 pixels Data exchange via CAN IP54 protection (front)

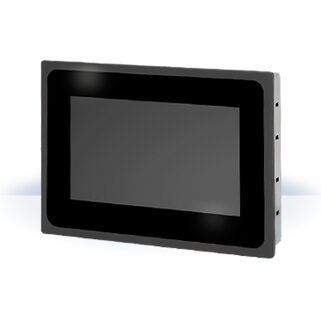

ETT 412 –
Built-in panel for visualization, operation and monitoring 4.3" TFT graphic display, single-touch (projective capacitive), 480 x 272 pixels Data exchange via CAN IP65 protection (front)
ETT 731 –
Built-in panel for visualization, operation and monitoring 7" TFT color display, single-touch (analog resistive), widescreen 800 x 480 pixels High-Performance EDGE2 Technology processor OPC UA communication Several standard integrated interfaces IP54 protection (front)
ETT 732 –
Built-in panel for visualization, operation and monitoring 7" TFT color display, multi-touch (projective capacitive), wide screen 800 x 480 pixels High-performance EDGE2 Technology processor OPC UA communication Several standard integrated interfaces IP54 protection (front) With multi-touch, the handling of machines and equipment is simpler and more intuitive. Familiar gestures from the consumer world such as zooming, scrolling or other multi-finger movements provide a better operating feeling and comfort.
ETT 7321 7″
Panel for visualization, operation and monitoring 7" TFT color display, multi-touch (projective capacitive), wide screen 800 x 480 pixels High-performance EDGE2 Technology processor OPC UA communication Carrier arm mounting with VESA75 IP65 protection (front) With multi-touch, the handling of machines and equipment is simpler and more intuitive. Familiar gestures from the consumer world such as zooming, scrolling or other multi-finger movements provide a better operating

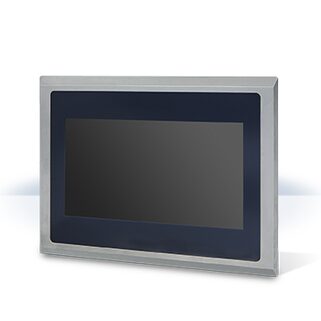

ETT 736 –
Built-in panel for visualization, operation and monitoring 7" TFT color display, touch (resistive), wide screen 800 x 480 pixels High-performance EDGE2 Technology processor OPC UA communication Several standard integrated interfaces IP65 protection (front)
ETT 764 –
Built-in panel for visualization, operation and monitoring 7" TFT color display, multi-touch (projective capacitive), wide screen 1024 x 600 pixels High-performance EDGE3 Technology processor OPC UA communication Several standard integrated interfaces IP65 protection (front) IP20 protection (cover) With multi-touch, the handling of machines and equipment is simpler and more intuitive. Familiar gestures from the consumer world such as zooming, scrolling or other multi-finger movements provide a better operating feeling and comfort.
ETT 771 –
Built-in panel for visualization, operation and monitoring 7" TFT color display, single-touch (analog resistive), widescreen 800 x 480 pixels High-performance EDGE2 Technology processor OPC UA communication Several standard integrated interfaces IP 54 protection (front)

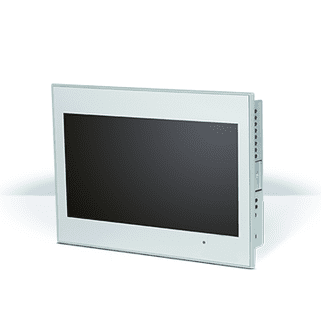

ETT 775 –
Built-in panel for visualization, operation and monitoring 7" TFT color display, single-touch (analog resistive), widescreen 800 x 480 pixels High-performance EDGE2 Technology processor OPC UA communication Several standard interfaces integrated IP54 protection (front)

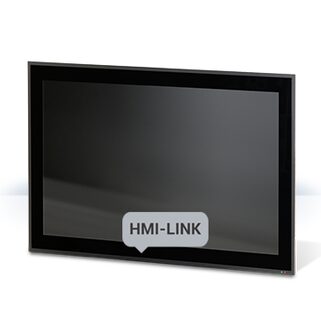

TAE 1044 –
Built-in panel for visualization, operation and monitoring 10.1" TFT color display, multi-touch PCT (projective capacitive), 1280 x 800 pixels HMI-Link G2 (100 m) IP65
