CTI
POWER SUPPLIES
Series Overview
A variety of power supply solutions are available which differ in their input voltage and load capacity. Our AC supplies feature automatic voltage switching and provide up to 100W of power to the base. They also feature a much longer hold-up time than available in the Siemens® power supply.
Did you know that periodic replacement of power supplies is one of the best preventive measures you can take to ensure continued smooth operation of your PLC system? Find out why in our article PLC Power Supply Replacement.
2500 Series - Classic, CTI
2500C-32F 32-Pin Field
The 2500C-32F 32-pin Field Wiring Connector provides a termination point for field wiring at the 2500C I/O module. The connector is removable and 2500C I/O modules can be hot-swapped, allowing modules to be changed under power.
2500C-32F-CJC 32-Pin Field
The 2500C-32F-CJC 32-pin Field Wiring Connector provides a termination point for field wiring at the 2500C-8-TC I/O module. The connector is removable and includes built-n cold junction compensation to allowing wiring thermcouple wire directly to the connector.
2510 125 VDC
IMPORTANT NOTE: 2510 HAS BEEN MATURED AND REPLACED BY 2512, WHICH SHOULD BE USED ON ALL NEW DESIGNS. The 2510 is a 125 VDC power supply for 2500 Series® PLCs. Systems that operate from 125 VDC batteries can use the 2510 to provide power to the PLC.

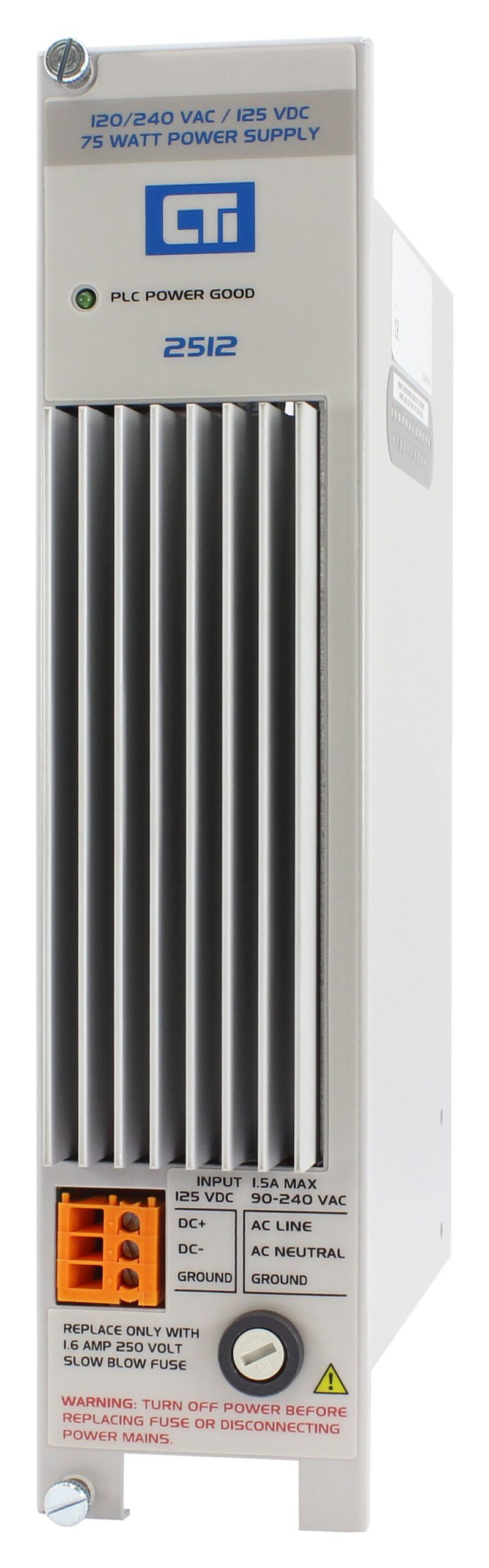

2512 75-Watt AC/DC
The 2512 is a 120/240VAC/VDC Power Supply designed for CTI 2500 Series® and Simatic® 505 PLCs. It provides up to 75 watts of power for use by the CPU and I/O modules.

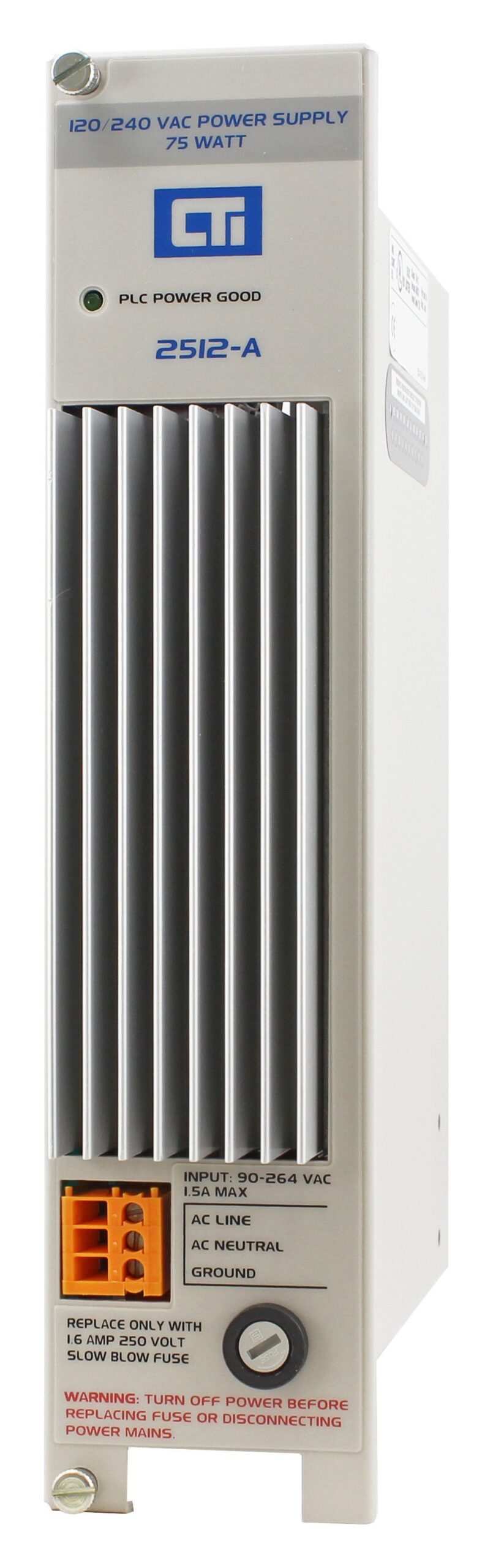

2512-A 75-Watt AC/DC
IMPORTANT NOTE: THE 2512-A HAS BEEN MATURED. IT IS DIRECTLY REPLACED BY THE 2515-A 100-WATT AC/DC POWER SUPPLY WITH REDUNDANCY SUPPORT. The 2512-A is a 120/240VAC/125VDC Power Supply designed for CTI 2500 Series® and Simatic® 505 PLCs. It provides up to 75 watts of power for use by the CPU and I/O modules, and provides support for redundancy when used in a dual configuration in a 2500-R11-A redundant base.

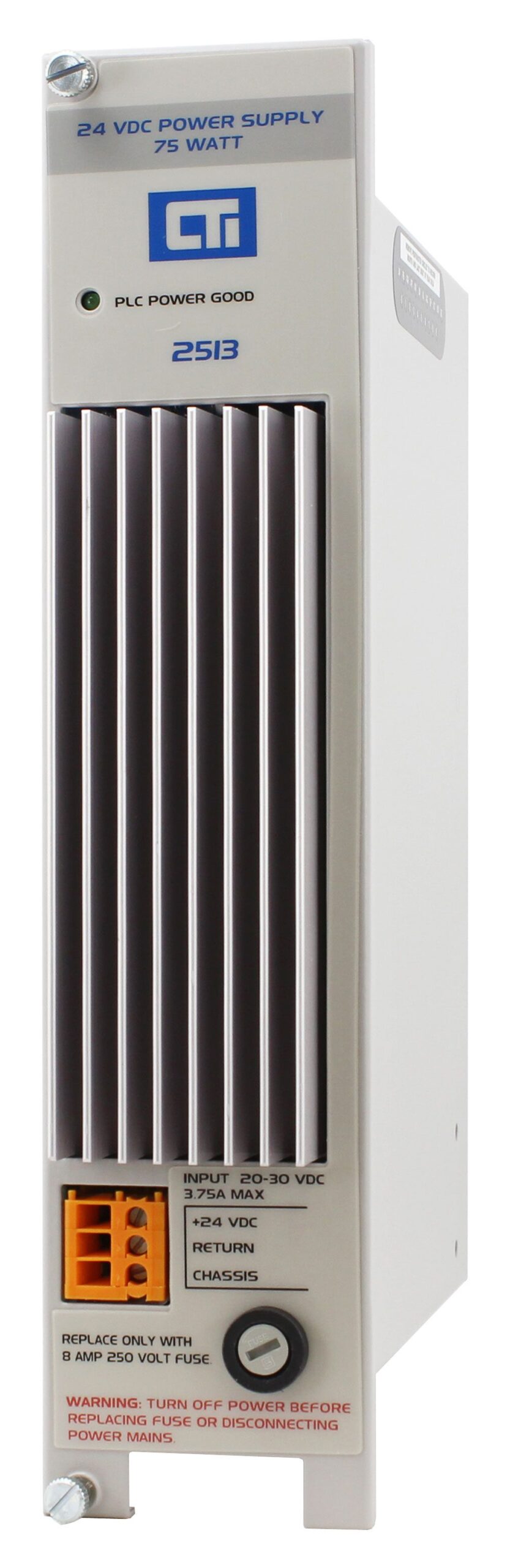

2513 75-Watt 24VDC
IMPORTANT NOTE: 2513 HAS BEEN MATURED. IT IS REPLACED BY 2513-A, WHICH SHOULD BE USED ON ALL NEW DESIGNS. The 2513 is a 24VDC Power Supply designed for CTI 2500 Series® and Simatic® 505 PLCs. It provides up to 75 watts of power for use by the CPU and I/O modules.
2513-A 75-Watt DC
The 2513-A is a 24VDC Power Supply designed for CTI 2500 Series® and Simatic® 505 PLCs. It provides up to 75 watts of power for use by the CPU and I/O modules, and provides support for redundancy when used in a dual configuration in a 2500-R11-A redundant base.
2515 100-Watt AC
IMPORTANT NOTE: 2515 HAS BEEN MATURED. IT IS REPLACED BY 2515-A, WHICH SHOULD BE USED ON ALL NEW DESIGNS.The 2515 is a 120/240 VAC power supply for CTI 2500 Series® and Simatic® 505 PLCs. The 2515 provides up to 100 watts of power for use by the CPU and I/O modules.

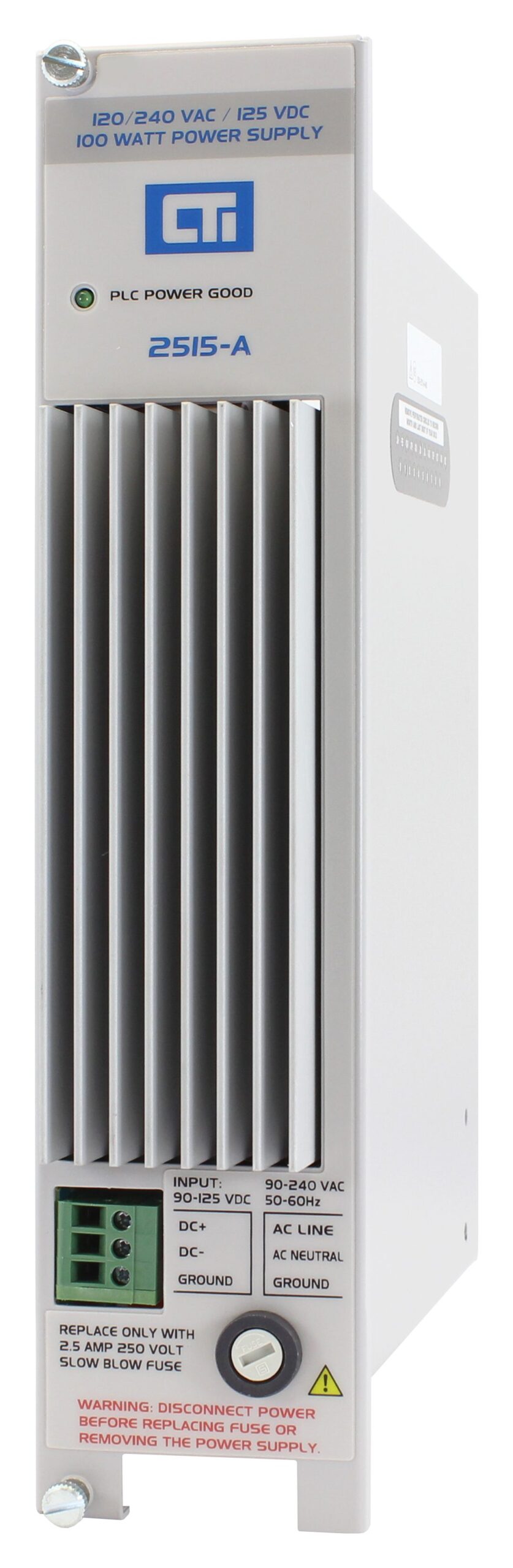

2515-A 100-Watt AC/DC
The 2515-A is a 120/240VAC/125VDC power supply for CTI 2500 Series® and Simatic® 505 PLCs. The 2515 provides up to 100 watts of power for use by the CPU and I/O modules.
2500 Series - Compact, CTI
2500C-PS-120V-35 35-Watt AC
The 2500C-PS-120V-35 is designed for CTI’s 2500 Series® Compact I/O System. The module accepts input voltages of 120 or 240 VAC and provides 35 watts of power for the RBC and I/O modules.

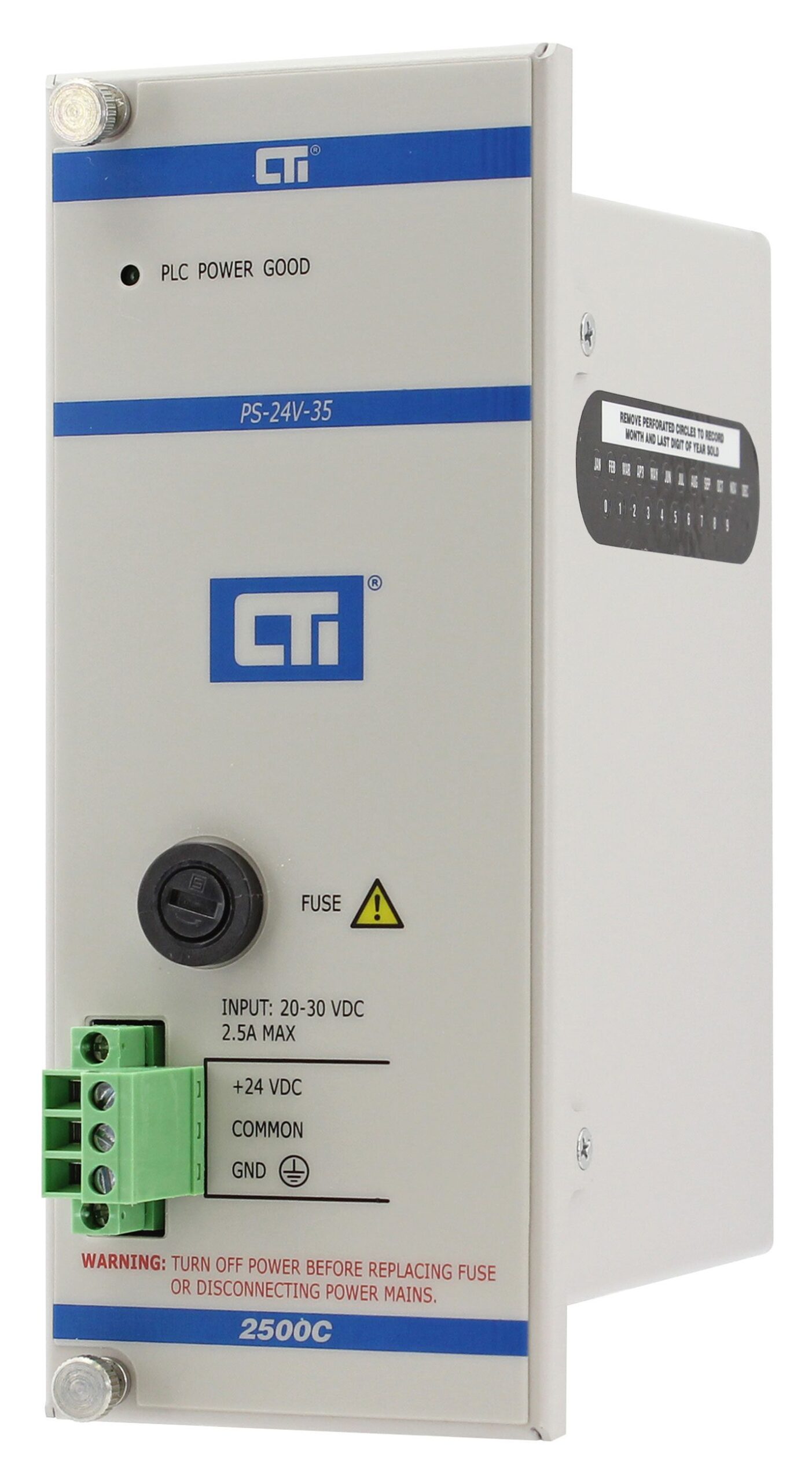

2500C-PS-24V-35 35-Watt DC
The 2500C-PS-24V-35 is designed for CTI’s 2500 Series® Compact I/O System. The module accepts 24VDC input voltage and provides 35 watts of power for the RBC and I/O modules.
