FAS Tech

Box PC

Products Overview

Box PCs are computer systems adapted for industrial applications. Different types of chassis, I/O and operating systems are available. Also customized systems in different designs depending on requirements.

Box PC

FAS Box PC

FAS Box PC 6.0 J6412 is a fanless industrial embedded PC with 4-core processor. With low power consumption and a compact chassis, the system works well for e.g. kiosk systems and automation solutions. Internal to the system is a PCI Express mini card slot for expansion. 230VAC Adapter is included with all systems, alternatively an 8-19VDC source can be used. The power requirement is about 15W, which makes the system well suited for mobile applications. FAS Tech supplies all available operating systems. Windows 7 Embedded (WES7) we offer customization of the O/S image to suit specific requirements. Mounting brackets for wall, VESA included. Option for DIN mounting kit.

FAS BOX PC

FAS BOX PC DIN Mounted J6412 is a fanless industrial embedded PC with dual core processor. With low power consumption and a compact chassis, the system works well for e.g. kiosk systems and automation solutions. 230VAC Adapter is included with all systems, alternatively a 12-24VDC source can be used. The power requirement is about 15W, which makes the system well suited for mobile applications. FAS Tech supplies all available operating systems. Windows 7 Embedded (WES7) we offer customization of the O/S image to suit specific requirements. DIN assembly kit.

FAS Box PC

CPU Intel Core Gen 11, i5-1135G7 (Option i3/i7) RAM 4GB DDR4 (Standard) up to 32GB DDR4 POWER 12VDC (11,5-12,5V) 12-24VDC (18-25V) / 12-24VDC (18-25V) 230VAC Adapter to 12V DC Included with all systems

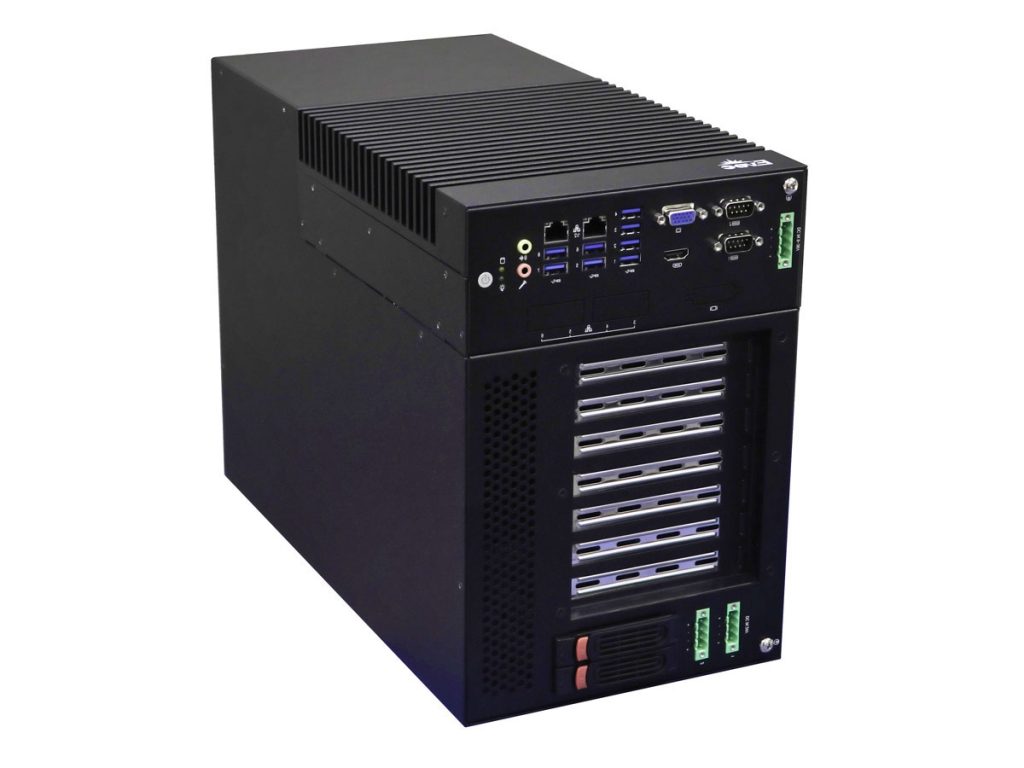

GPU Server MGP-800

Multi-source data fusion AI computing, support expanding 2 x full size GPU computing card, with powerful AI computing ability. Specialized power supply solution, specialized external power supply Multi-application, machine vision, deep learning, artificial intelligence edge computing, car-road collaborative assistance driving, etc. Safe & Stable, guaranteed quality after tough test

SKY 2 –

11th Gen Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU Pre-installed M.2 Hailo-8™ AI Accelerator 1 x DDR4 SODIMM socket, Max. 32GB Independent display: 4 x HDMI 3 x Intel 2.5 GbE LAN, 2 x USB 3.0, 2 x USB 2.0 2 x COM, 2 x M.2, DI/DO, SMBus

SKY 2 –

11th Gen Intel® Tiger Lake-UP3, i7 / i5 / i3 / Celeron CPU Pre-installed M.2 Hailo-8™ AI Accelerator 1 x DDR4 SODIMM socket, Max. 32GB Independent display: HDMI 4 x Intel GbE LAN, 3 x USB 3.0, 2 x USB 2.0, 2 x COM 2 x M.2, 1 x Nano SIM

SKY 2 –

Elkhart Lake ATOM® X6413E / J6412 CPU CPU Pre-installed Mini PCIe / M.2 Hailo-8™ AI Accelerator On Board 4 / 8GB LPDDR4 Multiple Independent display: 2 x HDMI or DP 2 x Intel 2.5 GbE LAN, 2 x USB 3.0, 4 x USB 2.0, 4 x COM 1 x M.2, 1 x Nano SIM, 1 x Mini PCIe, 4DI / 4DO

SKY 2 –

Elkhart Lake ATOM® x6413E / J6412 CPU Pre-installed M.2 Hailo-8™ AI Accelerator 1 x DDR4 SODIMM socket, Max. 32GB Multiple Independent display: 2 x HDMI (OEM Option to DP) 3 x Intel 2.5 GbE LAN, 2 x USB 3.0, 3 x USB 2.0, 2 x COM 2 x M.2, 4DI / 4DO (option), 1 x Nano SIM
