The INSEVIS S7-Panel-PLC allow you controlling, visualization and communication in a narrow spot. The most compact way to automatize – and with INSEVIS the most economic too. Our S7-Panel-PLC contain a metal front frame with protection class IP65 . They provide a high quality. S7-programming keep your know-how and do not touch your way of programming with SimaticManager or TIA-Portal from Siemens. Equipped with comprehensive communication channel like Ethernet (TCP, UDP and S7-communication), Modbus-TCP and -RTU, CANopen and CAN-Layer2 as well as RS232 and RS485 and optional Profibus DP master/slave resp. Profinet IO Controller. With onboard- and/or decentral periphery in fine grades. Open for external periphery devices ans closed for illegal copy actions. Labeled with customers logo to make INSEVIS- customers inexchangeable. Lots of customers us own customized fron to adapt it directly into their application for a unique solution.
10,1″/15,6″ – CPU T
S7-Panel-PLC 10″ flat
These S7-Panel-PLCs provide a brilliant display with 1024x600pixel and a fast S7-CPU with 2port-Ethernet (either as switch or as 2 separated nets), CANopen, Modbus (-RTU and -TCP) as well as RS232 and RS485 and the optional Profinet-IO Controller, all this functions are realized in a 47mm deep device. Now with 2 versions; one with Profinet, one without. Both with 4x VNC-server and a static web server included.
S7-Panel-PLC 10,1″ with

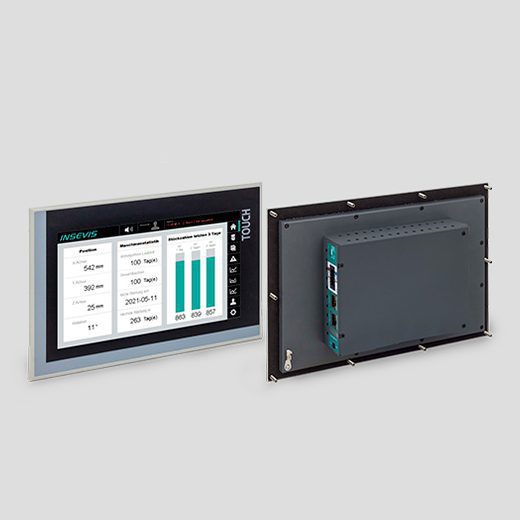

These S7-Panel-PLC 10″ is only 95mm deep and can be equipped with up to 126 digital or 70 analog I/Os below the metal rear cover, what can be customized on each slot. The integration of 7 slots for INSEVIS periphery modules into the PC1010T to become a PC1017T combines all the existing advantages with different modular periphery modules onboard. These interfaces are available by CPU-T what is used in this S7-Panel-PLCs: 2x Ethernet separated nets or as 2port-switch, with S7-communication , TCP, UDP as well as Modbus (-TCP and -RTU), CAN (CANopen and Layer2) as well as RS232 and RS485 (free ASCII) and optional Profinet IO Controller). It is no problem to add more external periphery, if needed. Therefore INSEVIS provides periphery blocks DP3xxC.
S7-Panel-PLC 15″ flat

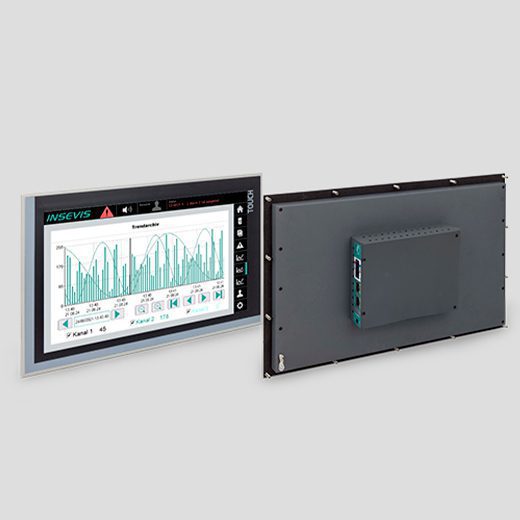

This S7-Panel-PLC 15,5″ he largest touchpanel with 1366x768pixel. It is one of the most sold large Panel-PLCs of INSEVIS and is used in medium automation projects. Interfaces onboard: 2x Ethernet separated nets or as 2port-switch, with S7-communication, TCP, UDP as well as Modbus (-TCP and -RTU), CAN (CANopen and Layer2) as well as RS232 and RS485 (free ASCII) and optional Profinet IO Controller). It is no problem to add external periphery, if needed. Therefore INSEVIS provides periphery blocks DP3xxC. A static web- and a regular 4x VNC-server included.
S7-Panel-PLC 15″ with

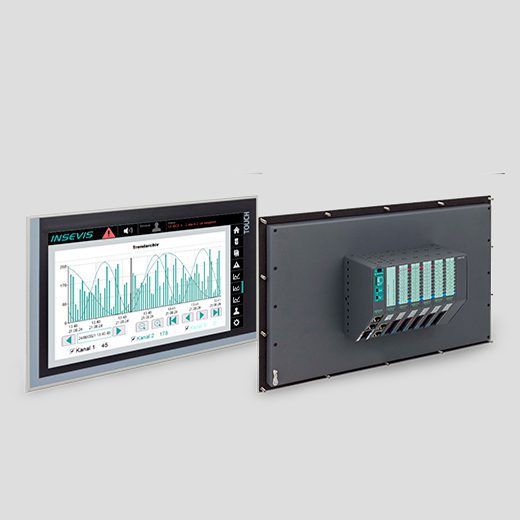

These S7-Panel-PLC 15,6″ can be equipped with up to 126 digital or 70 analog I/Os below the metal rear cover, what can be customized on each slot. The integration of 7 slots for INSEVIS periphery modules into a PC1560T creates a PC1567T and combines all the existing advantages with different modular periphery modules onboard. These interfaces are available by CPU-T what is used in this S7-Panel-PLC 10″: 2x Ethernet separated nets or as 2port-switch, with S7-communication, TCP, UDP as well as Modbus (-TCP and -RTU), CAN (CANopen and Layer2) as well as RS232 and RS485 (free ASCII) and optional Profinet IO Controller). It is no problem to add more external periphery, if needed. Therefore INSEVIS provides periphery blocks DP3xxC.
3,5″/5,7″ – CPU V/P
S7-Panel-PLC 3,5″ flat
There you have to look twice: Touch panel and S7-PLC combined in an extreme compact device. Decentral and external periphery will be used by onboard interfaces. Often used as economy model or as additional operator panel or to control in the S7-control network. Beside of the large working memory (512/640kB) the lots of onboard interfaces Ethernet (S7-communication, TCP, UDP), Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optional Profibus DP V0 (Master, Slave) favor this device for a data logger or gateway application with data preprocessing with S7.
S7-Panel-PLC 3,5″ flat
Welcome to one of the worlds most compact S7-touch Panel-PLC with onboard-periphery! 4 digital and 2 analog in- or outputs hide below the narrow metal rear cover. More periphery can by uses external, but for some application this is the direct hit. The brilliant panel and the very small dimensions favor these devices for small solutions to surprise with the power of large equipment. With only 50mm mounting depth ultra compact and nevertheless with Ethernet (S7-communication, TCP, UDP), Modbus (-TCP and -RTU), CAN (CANopen cnd Layer2), RS232 and RS485 (free ASCII) and optional Profibus DP V0 (Master, Slave) – a real wonder of communication.
S7-Panel-PLC 3,5″ with

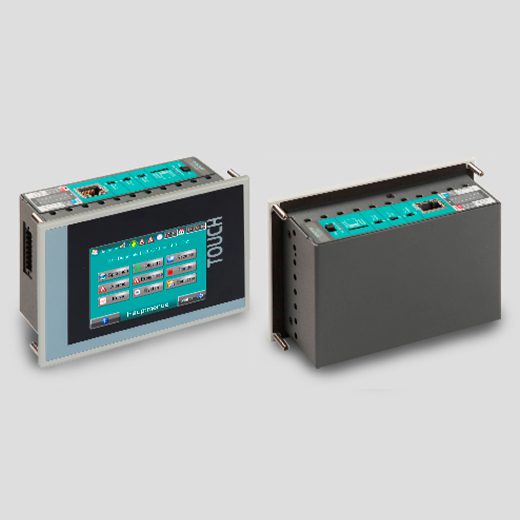

Who need to use lots of I/Os modular in a small switching cabinet or directly in the machine will love this only 89mm deep S7-Panel-PLC 3,5″. Up to 48 digital or 30 analog I/Os fit below the high class worked metal rear cover. This solution replaces more and more older C7-devices and expands the machines live by far. The large working memory (512/640kB) and the number of interfaces like Ethernet (S7-communication, TCP, UDP), Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optional Profibus DP V0 (Master, Slave) favors this units to be used as data logger, PDA-devices or gateways wit data preprocessing by S7.
S7-Panel-PLC 5,7″ flat
For those, who miss this 5,7” design, these devices will be a good solution with long termed availaility. But there is not only a panel, a PLC is integrated too! And this is a strong PLC with the instruction set of a S7-315-2PNDP but more memory and a number of interfaces: Ethernet (S7-communication, TCP, UDP), Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optional Profibus DP V0 (Master, Slave) make a power device from this S7-Panel-PLC 5,7″. With low power consumption and fast booting and only 50mm flat.
S7-Panel-PLC 5,7″ with

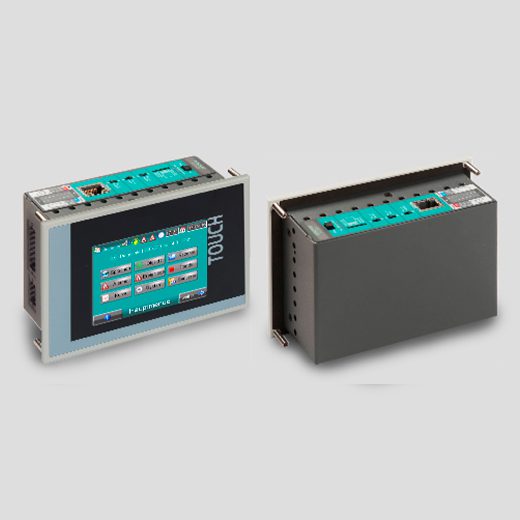

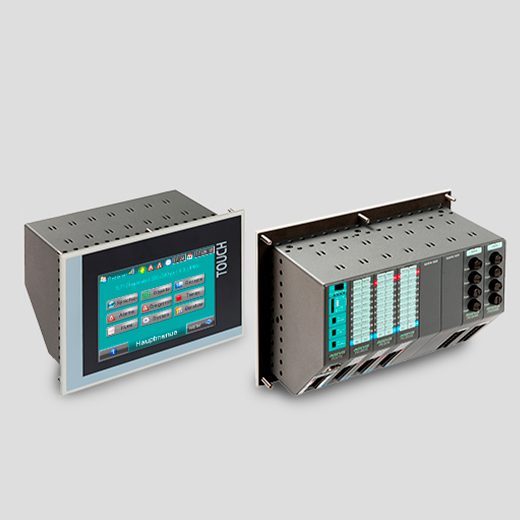

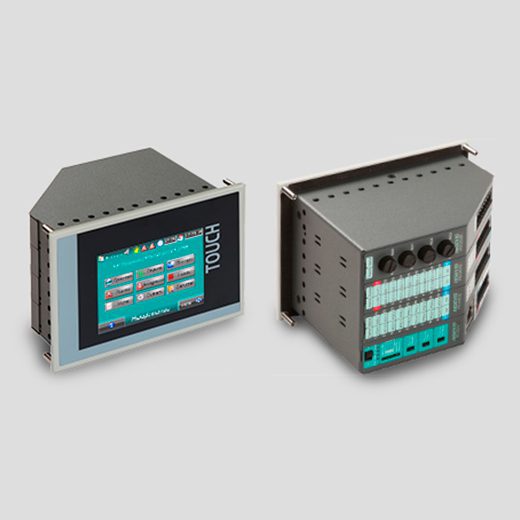

Workhorse, workaholic, powerseller, all these describe the unique position of this S7-Panel-PLC 5,7″ with onbord I/O-slots. No other INSEVIS-Panel-PLC is sold that much and runs in so many different applications. Mostly equipped with up to 112 digital or 72 analog onboard-I/Os and labeled in customers design. Hundreds off applications became series with this device. It is the combination of German quality with an unique price performance ratio and the visualization, what is so easy to be created by VisuStage. Of course does this device contain Ethernet (S7-communication, TCP, UDP), Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and optional Profibus DP V0 (Master, Slave).
4,3″/7″ – CPU T
S7-Panel-PLC 4″ flat
26 mm mounting depth – champion! This S7-Panel-PLC 4″ convinces with 480×272 pixel on only 4,3”, an S7-PLC with 1MB work- and 8MB load memory in 25mm depth (without Profinet) or 45mm depth (with Profinet). So compact, so strong and so easy to program with the well known Siemens S7-tools SimaticManager and TIA-Portal. There are no tags-oriented limitations by VisuStage and a remote access is available for free by RemoteStage. Who wants to combine S7-power with a small touch panel will find a perfect device in this Panel-PLC, favor for a data logger or gateway application with data preprocessing with S7. 4x VNC-server included as well as 2x Ethernet separated nets or as 2port-switch, with S7-communication, TCP, UDP as well as Modbus-TCP and -RTU), CAN (CANopen and Layer2) as well as RS232 and RS485 (free ASCII) and optional Profinet IO Controller).
S7-Panel-PLC 4″ with

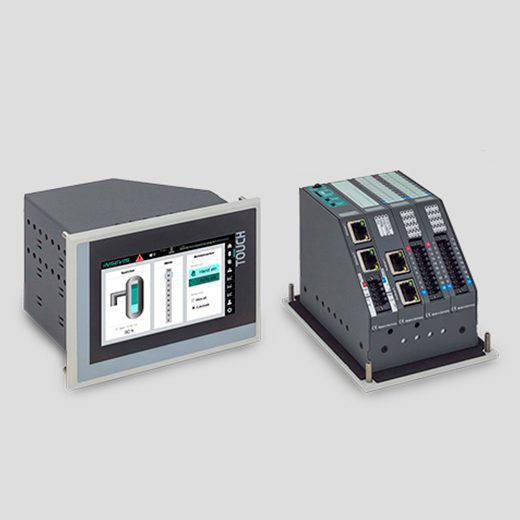

The S7-Panel-PLC 4″ devices combine a lot of benefits in one. The touch display with 480×272 px at a 4,3″ diagonal. The huge S7-PLC with 1MB work- and 8MB load memory. This version contains 3 slots for different INSEVIS- periphery modules for up to 48 digital and 30 analog I/Osas well as 2x Ethernet for separated nets or as 2port-switch, with S7-communication Put/Get, TCP, UDP as well as Modbus (-TCP and -RTU), CAN (CANopen and Layer2) as well as RS232 and RS485 (free ASCII) and optional Profinet IO Controller). It is no problem to add more external periphery, if needed. Therefore INSEVIS provides periphery blocks DP3xxC. This small device is only 90mm deep, no plastic, just metal only.
S7-Panel-PLC 7″ flat
With 800x480pixel (WVGA) in 16:9 format this S7-Panel-PLC 7″ device provides a CPU with 1MB work-, 8MB load and 48MB visualization memory and this is the difference. The brilliant display is an eye catcher for itself, lots of genial solved objects make this panel to a powerful -but easy to create- visualization. 2 device types: The “small” contains interfaces like Ethernet (S7-communication Put/Get, TCP, UDP), Modbus (-TCP and -RTU), CAN (CANopen and Layer2), RS232 and RS485 (free ASCII) and the “large” additionally Profinet IO Controller. A static Web server and 4x VNC server are included.
S7-Panel-PLC 7″ with

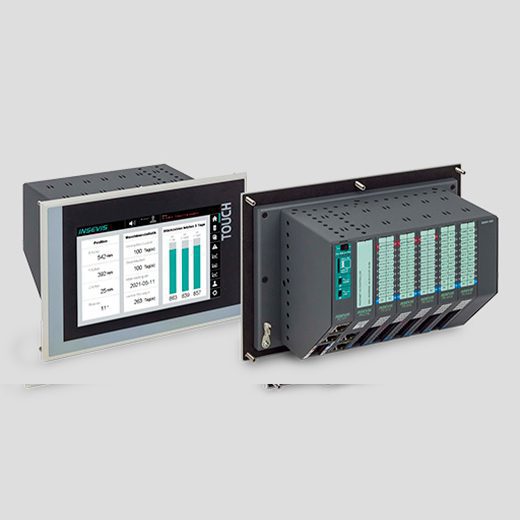

If you integrate 7 slots for INSEVIS periphery modules into the PC710T, you will get the S7-Panel-PLC 7″ device. All the existing advantages combined with different modular periphery onboard. These Panel-PLCs are only 95mm deep and can contain up to 126 digital or 70 analog I/Os below the metal rear cover. This device contains all the S7-CPU-T memorie sizes and interfaces and optional Profinet IO Controller. Beside the classic control applications this units are often used as data logger. Also used as PDA-devices or gateways wit data preprocessing by S7. These interfaces are available by CPU-T what is used in this S7-Panel-PLC 7″: 2x Ethernet separated nets or as 2port-switch, with S7-communication Put/Get, TCP, UDP as well as Modbus (-TCP and -RTU), CAN (CANopen and Layer2) as well as RS232 and RS485 (free ASCII) and optional Profinet IO Controller). It is no problem to add more external periphery, if needed.
