Description
Product Details
| Model number | FT24I5CAPOB |
| Global article code | 3030509868 |
| European article code | 1010502360 |
| EAN number | 6920734000340 |
IP Rating
| IP 65 front / IP40 back |
PC System
| CPU | Intel® Core™ i5-7300U Processor Kaby Lake |
| GPU Graphics | Intel® HD Graphics |
| Audio | Realtek ALC3251 Audio CODEC |
| Memory | 8GB DDR4 non-ECC (max. 16GB) |
| Switchable Storage | faytech Industrial 128GB SSD |
| Network | 2x Realtek PCIe GB LAN 8111G (1000Mbps); M.2 E-key Wi-Fi module |
| Driver Support | Windows 10 + Linux Ubuntu |
| Preinstalled OS | Linux Ubuntu |

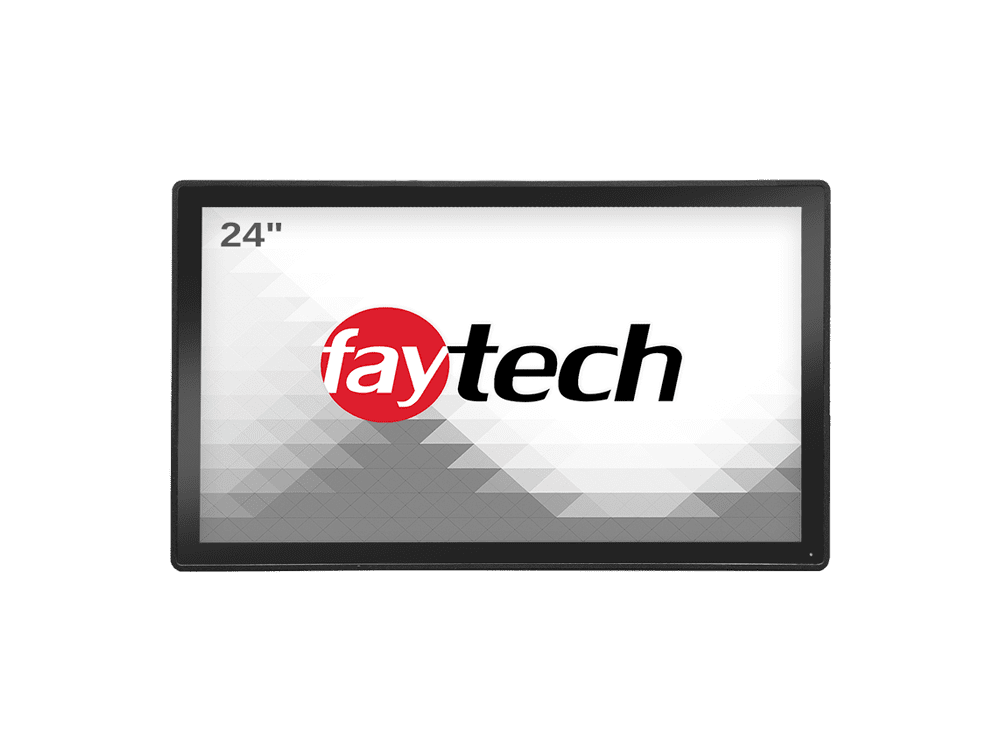

LCD Panel
| Screen diagonal | 24″ / 60.9 cm |
| Display active screen size | 53.13 cm x 29.88 cm (20.91 in x 11.76 in) |
| Aspect ratio | 16:9 |
| Physical resolution | 1920×1080 px |
| Maximum showable resolution | 1920×1200 px |
| Brightness | 300 (cd/m²) |
| Contrast | 1000:1 |
| Typical reaction time Tr/ Tf | 3.5/1.5 (ms) |
| Visual angle horizontal/vertical | 170/160 (°) |
| Backlight | LED |
| Backlight lifetime | 20,000 (hours) |
Touch Panel
| Touch technology | Projected Capacitive 10-Point Multitouch |
| Touch lifetime | Unlimited |
| Surface hardness | 7H |
| Surface treatment | Anti-glare (chemical etching) |
| Glass strengthening | Chemically Strengthened |
Operation/Mechanical
| Operating temperature | -10 °C ~ +60 °C (14 °F ~ 140 °F) |
| Humidity range | 10% – 90% RH |
| Net weight | 5.94 kg / 13.095 lb |
| Gross weight (incl. cartonage) | 9.38 kg / 20.679 lb |
| Housing material | Rubber frame, Aluminum IPC back case |
| Housing sizes | 579.4 mm x 347.0 mm x 66.5 mm (22.81 in x 13.66 in x 2.618 in) |
| Clamp support | Yes |
| cut-out for clamp supports (L X H) | 639.0 mm x 381.0 mm (25.15 in x 15.00 in) |
| Amount of clamps required | 10 |
| Mounting | VESA 100 |
Power
| Power indicator | Green LED |
| Power supply | 100-240V ACDC active switching; 12V DC-Out |
| Working power | 12 V |
| Power consumption | 74 W |
| Standby power | 1 W |
Internal Connectors
| 1x SO-DIMM, max. 16 GB, DDR4 1866/2133 non-ECC, Single channel memory 3x RS232/RS485 COM connectors switchable in BIOS 2x LCD Backlight control/LCD panel voltage box 1x 5V/12V SATA power connector 1x 12V DC power connector (2-pin) 1x 4-pin SATA power connector 1x S/PDIF output pin header 1x 8-bit Digital I/O interface 1x Line-out / Mic-in header 1x Front Panel box header 1x Serial ATA 6Gb/s 1x MIPI CSI connector 1x LVDS box header 2x USB 3.0 box header |

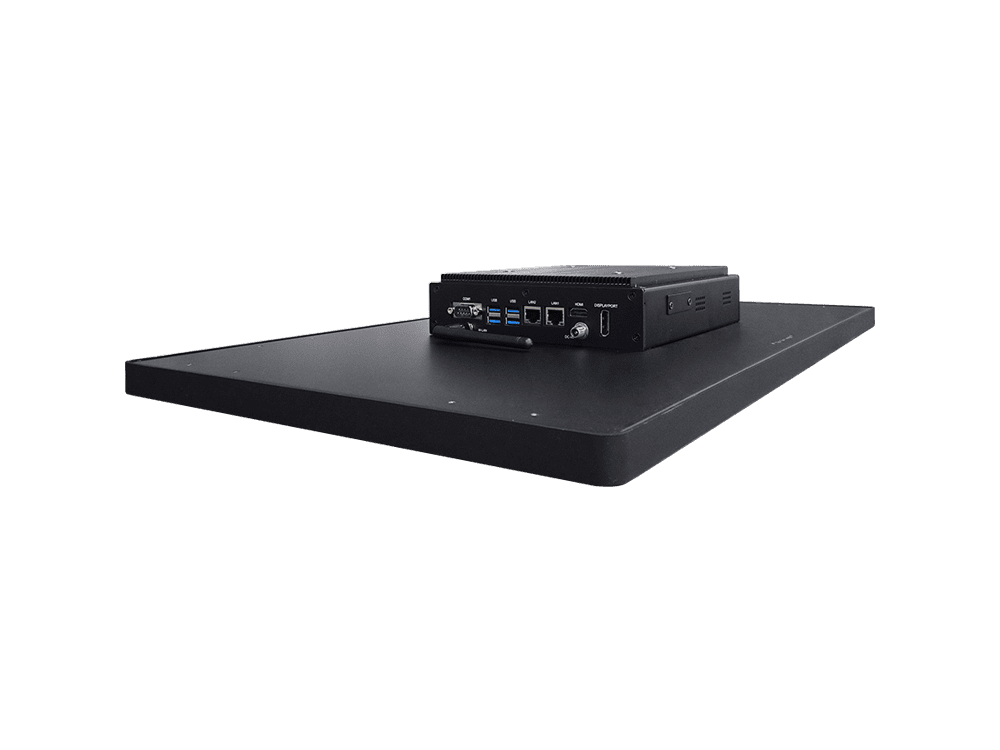

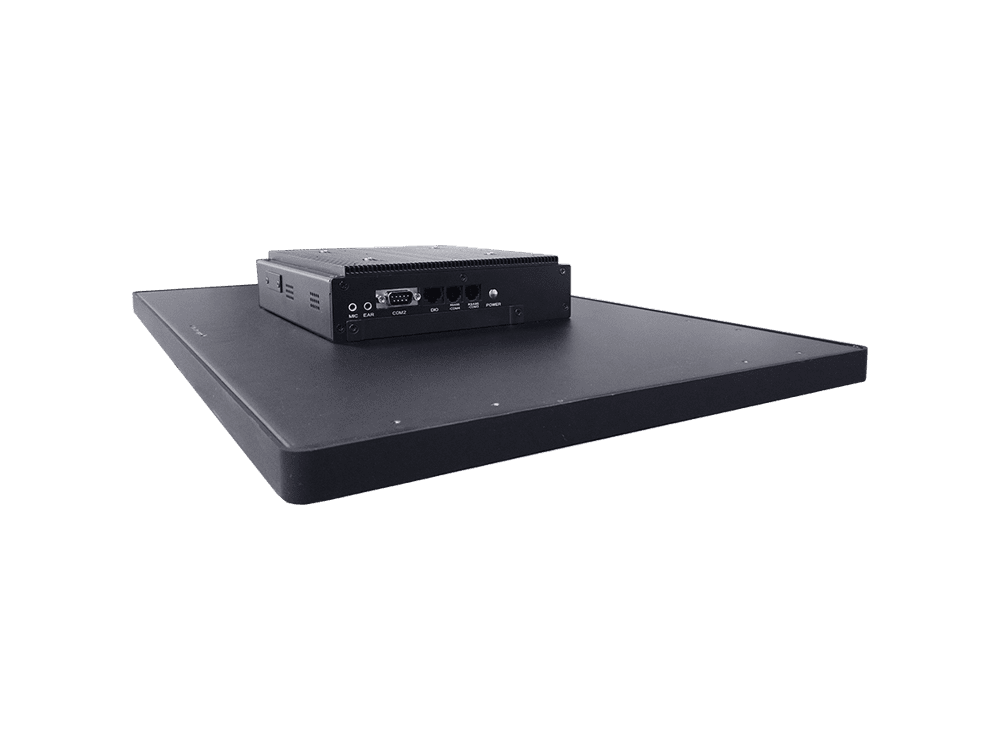

External Connectors
| 1x 12V DC-In (screwable) 1x W-LAN antenna connector (RP-SMA male) 4x USB 3.0 1x HDMI 1x DP 1x MIC-In & EAR-Out 1x 10-PIN DIO as RJ50 1x COM – RS 232/422/485 switchable; 5V/12V/RI option (COM1, DSUB9) 1x COM – RS 232; RX/TX (COM2, DSUB9) 2x COM – RS 232 & 485; RX/TX & A+/B- (COM3&4, RJ12) 2x 10/100/1000Mbit RJ45 Ports 1x 2.5″ module slot, changeable SSD included |
Expansion Slots
| 1x mSATA full size (occupied by SSD) 1x M.2 E-Key Slot (occupied by Wifi card) 1x SATA connector 1x External PCIe x1 Straddle connector |
Included in the delivery
| Power Supply (see Power section) Short Installation Manual Standard Stand W-LAN antenna (RP-SMA female) |
