8″ Resistive IP65 High Brightness Touch Monitor

For industrial and outdoor applications in harsh environments, faytech provides IP65 High Brightness Touch Monitors, which are the perfect solution for such applications.

Advantages of these devices:

  • Increased brightness (1000+ cd/m2)
  • Complete IP65 protection (dust- and waterproof)
  • All-in-one cable solution with HDMI video connection, USB for Touch and a 8-36V power supply.

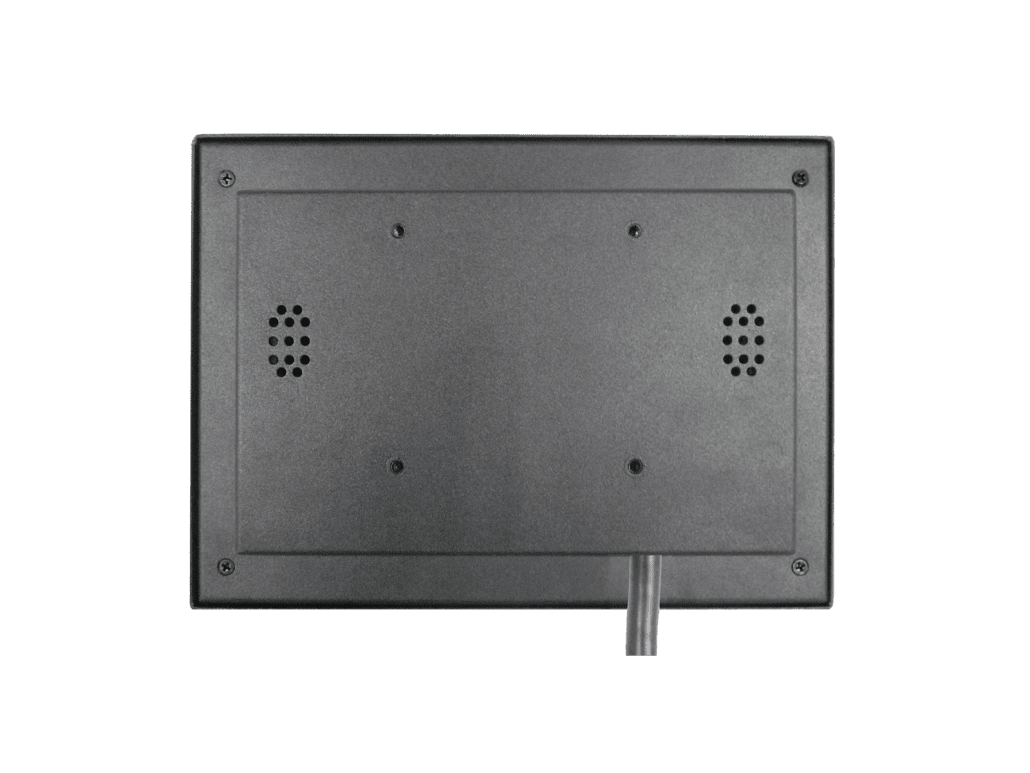

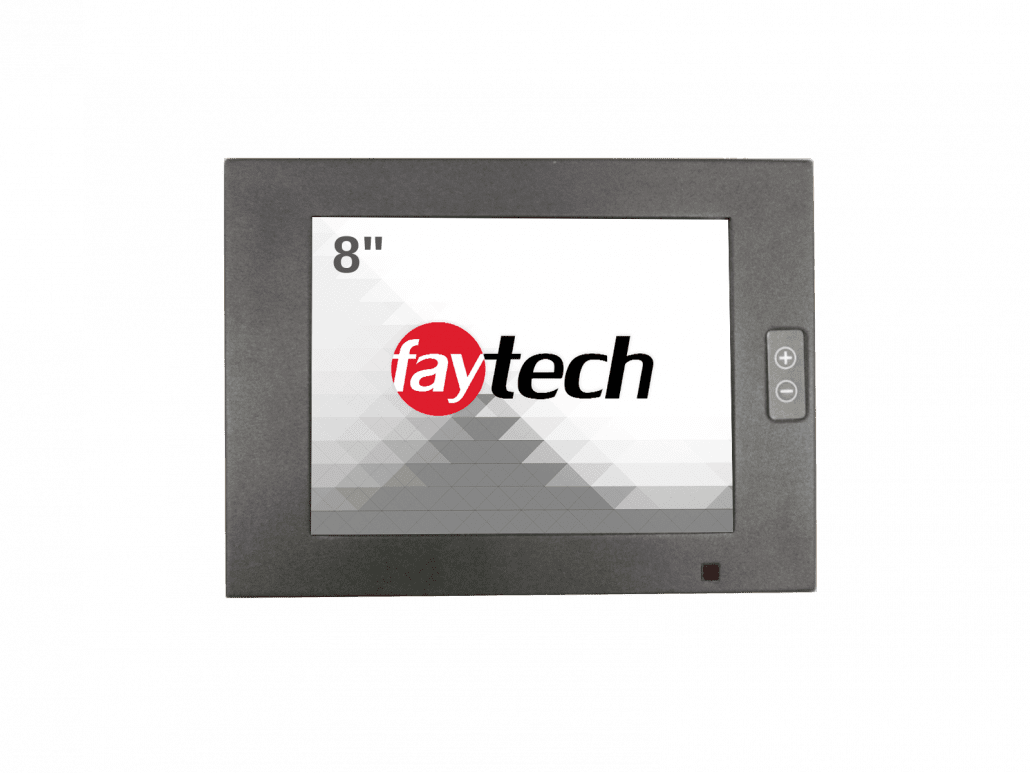

The case of the device consists of a robust, sealed aluminum enclosure, with on the front two buttons to adjust the brightness (with 5 available levels). On the back of the device are fixation holes for either VESA 75 or VESA 100 mounting, which ensures solid fixation in any environment.

  • Comprehensive IP65 protection for applications under harsh circumstances, including water- and dustproof
  • 1000+ cd/m² brightness for increased visibility even at extremely bright environmental conditions
  • Extended voltage input 8~36V
  • All-in-One cable (HDMI)
  • 4-Wire Resistive touch technology
  • VESA 75 mounting
  • 2 years guarantee (24/7 usage)

SKU: 8″ Resistive IP65 High Brightness Touch Monitor Categories: , , Brand:

Description

Product Details

Model number FT08TMIP65HDMI
Global article code 20205005891
European article code 1010500191
EAN number 6920734008223

IP Rating

IP 65

LCD Panel

Screen diagonal 8″ / 20.3 cm
Display active screen size 16.20 cm x 12.20 cm (6.377 in x 4.803 in)
Aspect ratio 4:3
Physical resolution 1024×768 px
Maximum showable resolution 1920×1080 px
Brightness 1000 (cd/m²)
Contrast 700:1
Typical reaction time Tr/ Tf 6/14 (ms)
Visual angle horizontal/vertical 150/150 (°)
Backlight LED
Backlight lifetime 40,000 (hours)

Touch Panel

Touch technology 4-Wire Resistive
Available touch panel drivers Windows
Linux
Mac
Android
Touch lifetime 1 million touch in 1 location
Surface hardness 3H
Surface treatment Anti-glare

Operation/Mechanical

Operating temperature -25 °C ~ +75 °C (-13 °F ~ 167 °F)
Humidity range 10% – 90% RH
Net weight 1.50 kg / 3.3069 lb
Gross weight (incl. cartonage) 2.30 kg / 5.0706 lb
Housing material Aluminum
Housing sizes 232.0 mm x 172.0 mm x 39.5 mm (9.133 in x 6.771 in x 1.555 in)

Power

Power indicator Green LED
Power supply 100-240V ACDC active switching; 12V DC-Out
Working power 8-36 V
Power consumption 12 W
Standby power 1 W

External Connectors

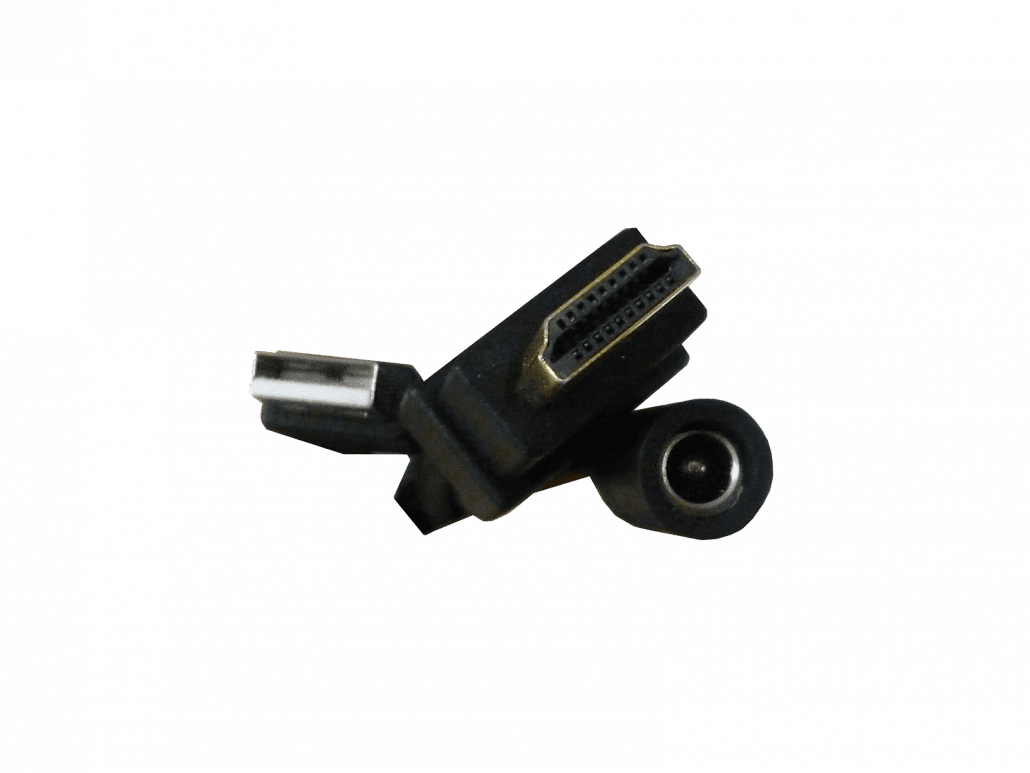

All-in-one-cable 1x HDMI, 1x USB-Touch, 1x 8-36V DC-In

Included in the delivery

Power Supply (see Power section)
Short Installation Manual
Stylus
Remote Controller
All-In-One cable – 2m length, attached to monitor (length customizable upon request)

Download

Acrobat Reader for PDFs Download from external page
3D model Download 3D model (PDF)
Datasheet Download Datasheet (PDF)
Manual Download manual (PDF)
Short-Manual Download Short-Manual (PDF)
Resistive touch drivers Download RTD (RAR) | Online Rar to ZIP
