Description
Product Details

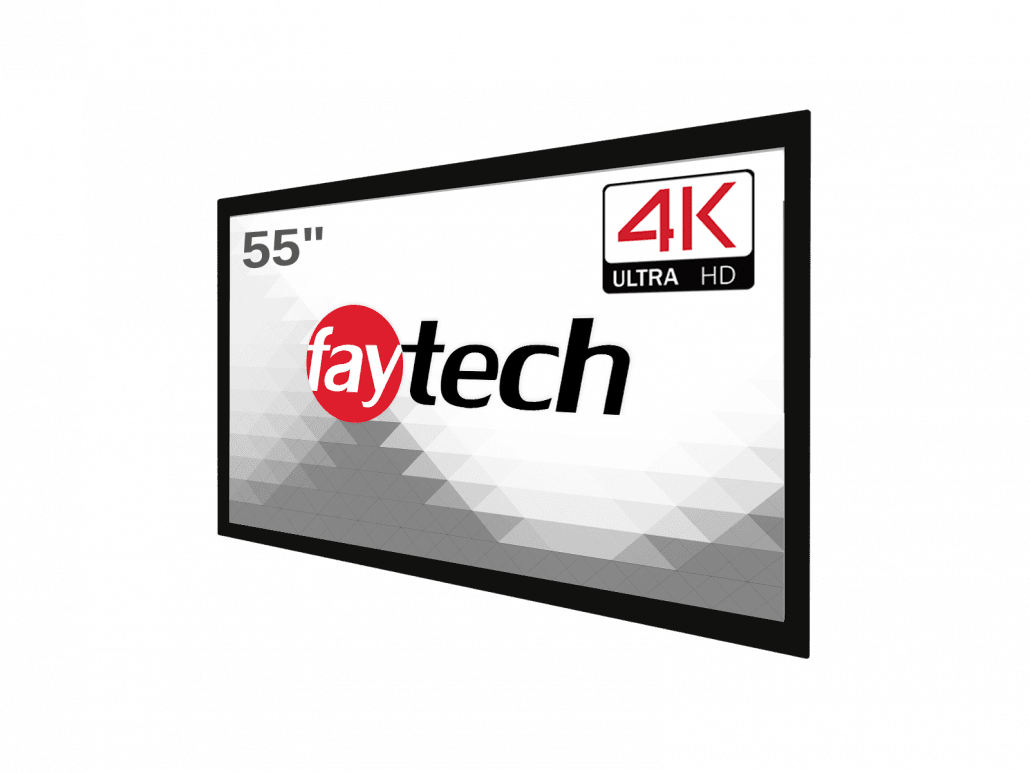

| Model number | FT55HDKTMCAPHBOB4K |
| Global article code | 20205005976 |
| European article code | 1010501379 |
| EAN number | 1 |
IP Rating
| IP 65 front / IP40 back |
LCD Panel
| Screen diagonal | 55″ / 139. cm |
| Display active screen size | 122.36 cm x 68.04 cm (48.17 in x 26.78 in) |
| Aspect ratio | 16:9 |
| Physical resolution | 3840×2160 px |
| Maximum showable resolution | 3840×2160 px |
| Brightness | 1000 (cd/m²) |
| Contrast | 4000:1 |
| Typical reaction time Tr/ Tf | 8/1 (ms) |
| Visual angle horizontal/vertical | 178/178 (°) |
| Backlight | LED |
| Backlight lifetime | 100,000 (hours) |
Touch Panel
| Touch technology | Projected Capacitive 10-point Multitouch |
| Available touch panel drivers | Windows Linux Mac Android |
| Touch lifetime | Unlimited |
| Surface hardness | 7H |
| Surface treatment | Anti-glare (chemical etching) |
| Glass strengthening | Chemically Strengthened |
Operation/Mechanical
| Operating temperature | -10 °C ~ +60 °C (14 °F ~ 140 °F) |
| Humidity range | 10% – 90% RH |
| Net weight | 42.20 kg / 93.034 lb |
| Gross weight (incl. cartonage) | 55.60 kg / 122.57 lb |
| Housing material | Aluminum |
| Housing sizes | 1285.0 mm x 770.0 mm x 101.6 mm (50.59 in x 30.31 in x 4.000 in) |
Power
| Power indicator | Green LED |
| Power supply | 100-240V ACDC active switching; 24V DC-Out |
| Working power | 24 V |
| Power consumption | 175 W |
| Standby power | 1 W |
External Connectors
| Video | 2x HDMI 1.4 1x HDMI 2.0 1x DVI-D 1x VGA 1x DP |
| Audio | 1x Ear-Out, 1x Mic-In |
| Touch Connectors | 1x USB |
| Other Connectors | 1x 24V DC-In 1x Serial port (for controller) 1x RJ11 |
Included in the delivery
| Power Supply (see Power section) HDMI Cable USB-Touch Cable |
