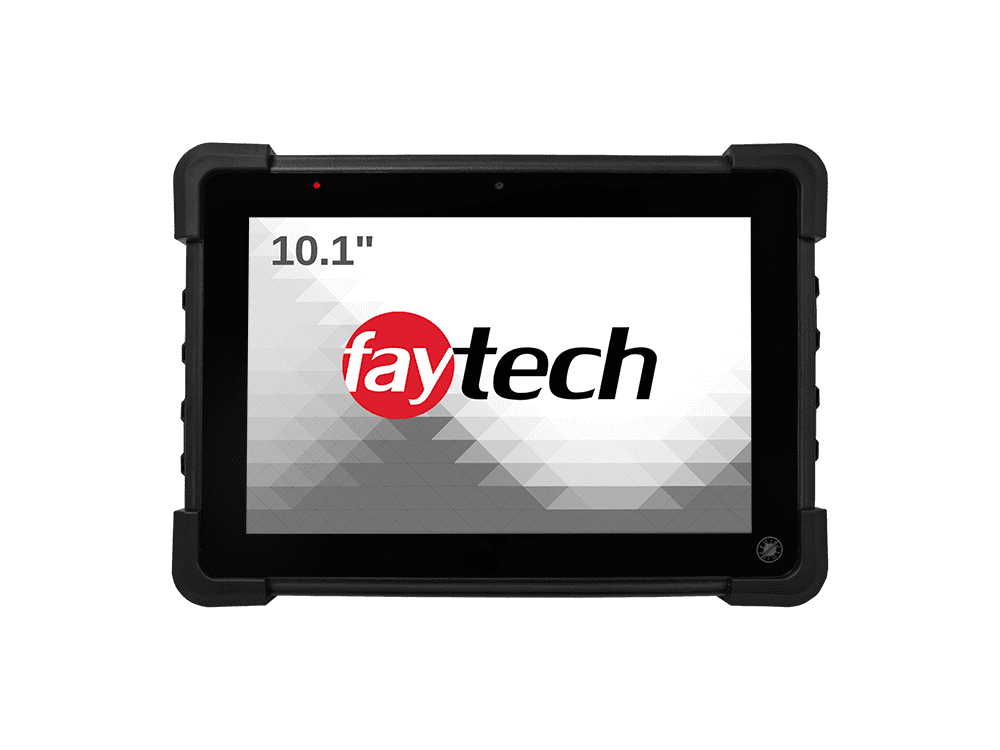

10.1″ Industrial Tablet IP65 (N4200)

faytech’s industrial (ruggedized) tablet is the perfect touch solution to be used as a hand-held device (or mounted pc) while performing tasks on-the-go or in rough environments. It is completely IP65 water- and dust proof, has a 10-finger capacitive multi touch panel and 24/7 antimicrobial coating by Kastus.

The rechargeable lithium battery will easily get you through your workday when needed with around 8-10 hours of operation (depending on the usage). Due to its robust design and optically bonded high brightness display, the tablet is particularly suitable for use in harsh environments and outdoor applications, but it can of course also be used in a semi-outdoor or indoor environment such as a factory floor, hospital or office.

Besides the mobile solution, the device can also be used as a permanently installed control panel. Windows 10 is pre-installed on the device but no license is included, this can be purchased separately.

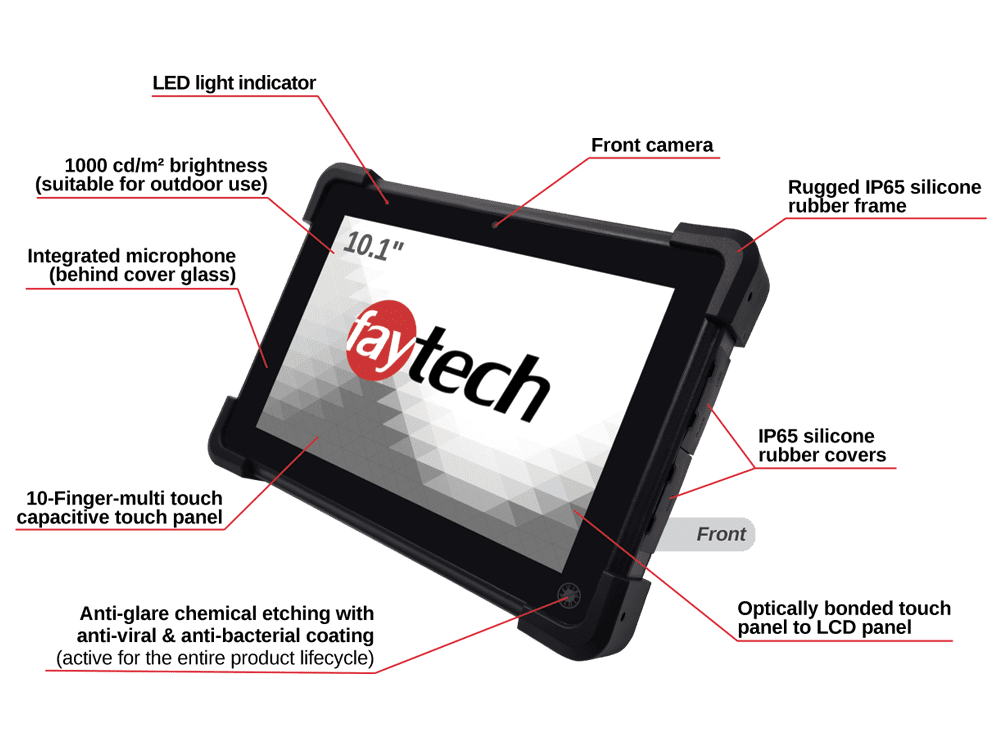

  • Intel® Pentium® N4200 Quad-Core CPU
  • 6GB RAM memory, 128GB eMMC storage
  • Pre-installed Windows 10 operating system (without license – to be purchased separately)
  • Rechargeable lithium battery, 7.4V/7000mAh (8.6+ hours operation)
  • Kastus 24/7 antimicrobial coating (3-in-1 protection)
  • Anti-glare surface treatment (chemical etching)
  • 1000 cd/m² brightness (suitable for outdoor use)
  • 10-Finger-multi touch capacitive touch panel
  • 1.8mm cover glass with 7H surface hardness (IK08)
  • Optically bonded touch panel to LCD panel
  • Complete IP65 water- and dust proof
  • Integrated W-LAN & Bluetooth 5.2
  • Built-in front & back camera and microphone
  • Integrated barcode scanner & fingerprint scanner
  • 2 year guarantee (24/7 usage)

Introducing the faytech 10.1″ Industrial Tablet IP65 N4200 V2:
The Ultimate Solution for Rugged Environments.

Experience a new level of performance and reliability with the faytech 10.1″ Industrial Tablet IP65 N4200 V2. Designed specifically for demanding environments, this rugged tablet offers exceptional durability and state-of-the-art features to ensure seamless operation in logistics, automation, field services, and other industries.

Powered by the Intel Pentium N4200 processor, the 10.1″ Industrial Tablet IP65 N4200 V2 delivers lightning-fast performance, while its 4GB RAM and 128GB SSD storage provide ample space for applications and data. The capacitive multi-touch display offers crystal-clear visuals and easy navigation, while the IP65 rating ensures protection against water, dust, and other harsh elements, additionally it is equipped with a 1D/2D barcode scanner and fingerprint reader.

Customize your tablet to suit your needs with optional features like NFC (Near Field Communication) scanner, and choose between Windows 10 IoT and Linux operating systems. With a range of connectivity options including Wi-Fi, Bluetooth, and optional 4G LTE, the 10.1″ Industrial Tablet IP65 N4200 V2 keeps you connected and productive no matter where your work takes you.

Invest in the faytech 10.1″ Industrial Tablet IP65 N4200 V2 today and experience the perfect blend of ruggedness, performance, and versatility.

Request a Quote
SKU: 10.1″ Industrial Tablet IP65 (N4200) Categories: , , Brand:

Description

Product Details

Model number FT101N4200ITCAPOB
Global article code 3030513606
European article code 4010077308
EAN number 6920734000388

IP Rating

IP65

PC System

CPU Intel® Pentium® QuadCore N4200
Graphic GPU Intel® HD Graphics 505
Audio Realtek ALC3236 Audio CODEC
Memory 6GB RAM
Storage 128GB eMMC
Network 1x Realtek PCIe GB LAN 8111G; Wi-Fi 802.11ax (see Wi-Fi specifications)
Bluetooth Bluetooth 5.2 (high speed data transfer)
Microphone Integrated (behind cover glass)
Preinstalled OS Windows 10 IoT LTSC 2019 Entry (without license, to be purchased separately)

LCD Panel

Screen diagonal (Inch/cm) 10.1/25.65
Display active screen size (cm) 21.70×13.60
Aspect ratio 16:10
Physical resolution 1920×1200
External Maximum showable resolution – Micro HDMI 1920×1200
Colours displayed 16.7M
Brightness (cd/m2) – incl. touch panel & optical bonding 1000
Contrast 800:1
Typical reaction time Tr / Tf (ms) 25 / 25
Visual Angle horizontal / vertical (°) 178 / 178
Backlight / Backlight Lifetime (hours) LED / 50,000

Touch Panel

Touch Technology Projected Capacitive 10-Point Multitouch
Touch Connector USB
Touch Life (Contacts) Unlimited
Surface Hardness 7H
Surface Treatment Anti-glare (chemical etching)
Glass Strengthening Chemically Strengthened
Additional Coating Kastus® 24/7 Antimicrobial Coating (3-in-1)
Touch Firmware (included) Works with fingers, gloves & in rainy conditions
Touch Firmware (as download available) Works with capacitive touch stylus

Operation / Mechanical

Operating Temperature (°C) 0 ~ +45
Humidity Range (RH) 10% – 90%
Net weight (kg) 1.20
Gross weight (kg) 1.70 (incl. cartonage)
Housing material Plastic Case, Silicone Rubber Frame
Housing (mm) L × W × H 280.3 × 198.3 × 36.0

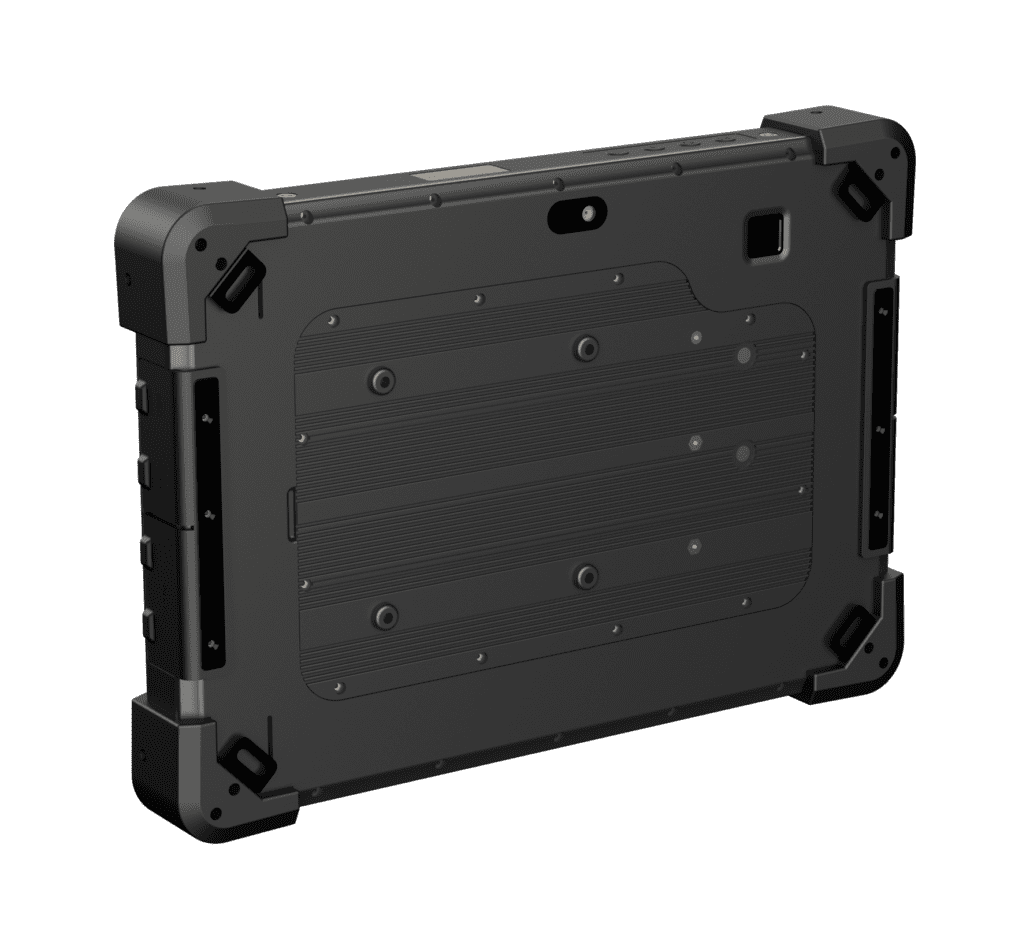

Mounting VESA 75
4x M3.5 screw thread

Power

Power Indicator Green / Red LED
Built-in Battery Rechargeable Lithium Battery, 7.4V/7000mAh
Power Supply 100-240V ACDC active switching; 12V DC-Out
Working Power (V) 12
Power Consumption / Active Working Time (w/o stand-by mode) 25% brightness, idle mode (indoor / semi-outdoor): 6W / 8.6 hours minimum
50% brightness, 50% full usage (semi-outdoor): 10W / 5.2 hours minimum
100% brightness, 100% full usage (outdoor): 15.5W / 3.3 hours minimum
Stand-By Consumption (W) <1

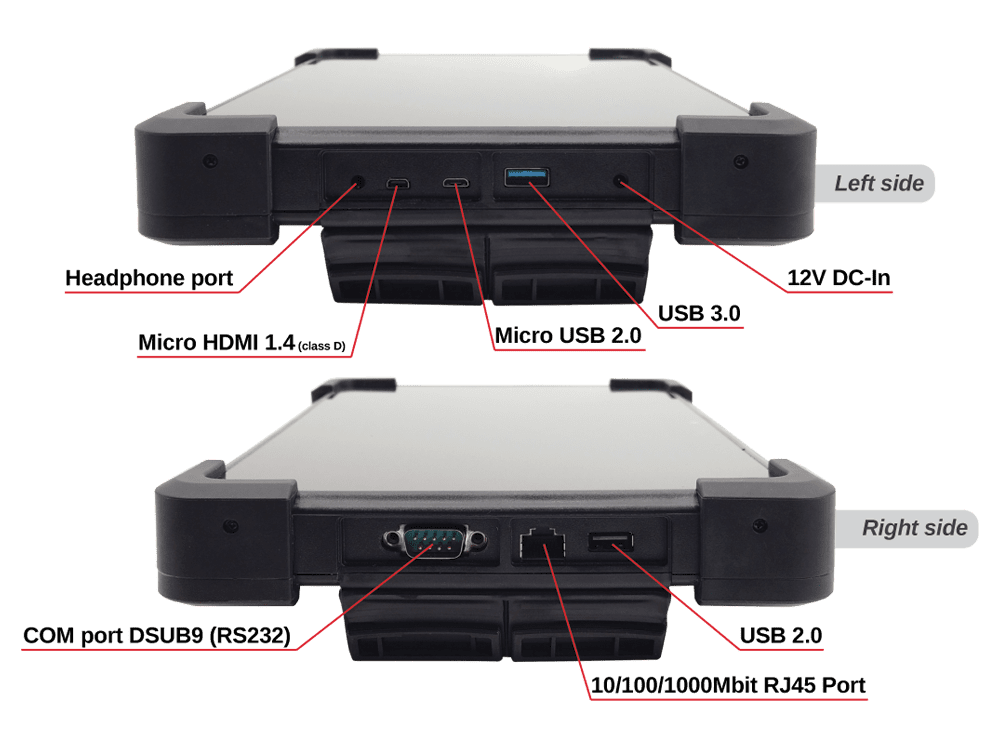

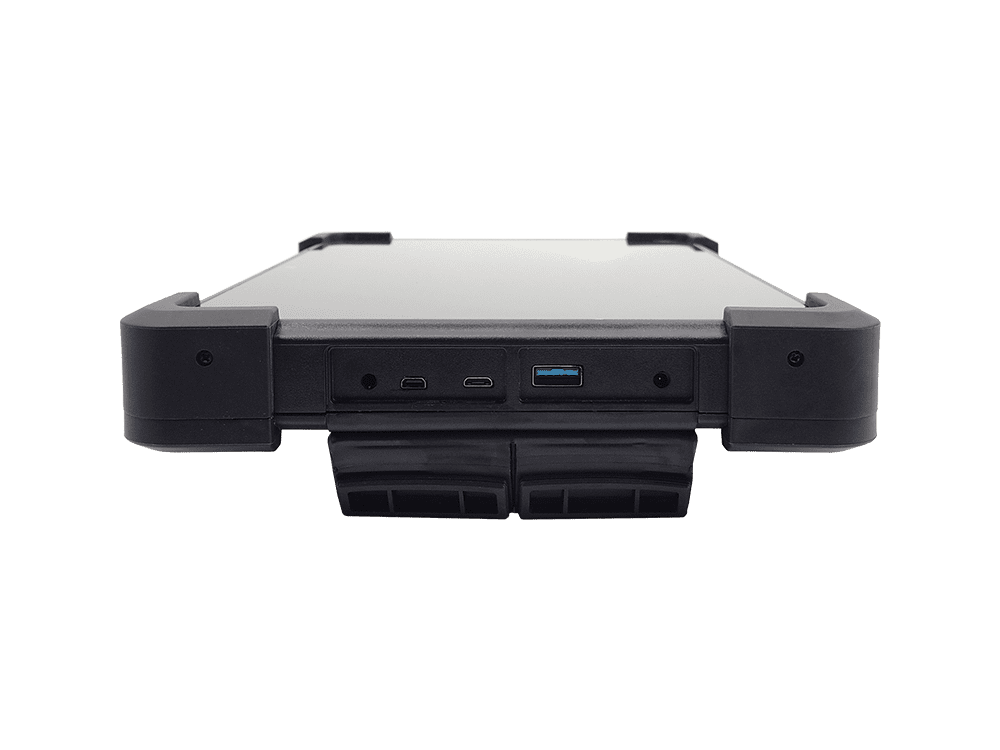

External Connectors

1x 12V DC-In (to recharge)
1x Micro HDMI 1.4 (class type D)
1x USB 3.0
1x USB 2.0
1x Micro USB 2.0
1x Headphone port – Ear out only (3.5mm)
1x 10/100/1000Mbit RJ45 Port
1x COM port DSUB9 (RS232)
1x Micro SD card slot (TF – TransFlash)

Included in the Delivery

Power Supply (see Power section)
Short Installation Manual
Plastic Screen Protector
VESA 75 back plate with heat management (attached to tablet)
Standard battery (inside)

—Peripherals—

Wi-Fi & Bluetooth Specifications (AX200)

Product Name Intel® Wi-Fi 6 AX200 Module
Wi-Fi High-performance, low-power, dual-band Pre-Standard-802.11ax Dual Band 2×2
Band Channels 2.4GHz and 5GHz (2-160 MHz channels)
Wi-Fi Alliance certifications 802.11a/b/g/n/ac/ax(PreStandard), WPA/2 Personal and enterprise, WPS2, PMF, WMM, WMM-PS, WFD, Miracast, Passpoint R2, Voice Personal
Performance TX Burst, TCP packet reordering, MSIx for reduced multi-core CPU load upto MCS11
Wi-Fi-Bluetooth Coex MIMO TX/TX and Rx/Rx Concurrency
Bluetooth Bluetooth 5.2

Fingerprint Scanner Specifications (MB-X4)

Purpose Register & unlock device (Windows 10)
Pixels / resolution 88×88px / 508 DPI
Storage capacity 100 unique prints (multiple fingers & accounts)
Unlocking time <1s
FRR / FAR <2% / <0.002%
Communication interface / UART SPI / 57600
Additional features build-in “Smart Learning” algorithm, allowing fingerprint matching to be faster over time
Accepts 360° (degrees) fingerprint matching

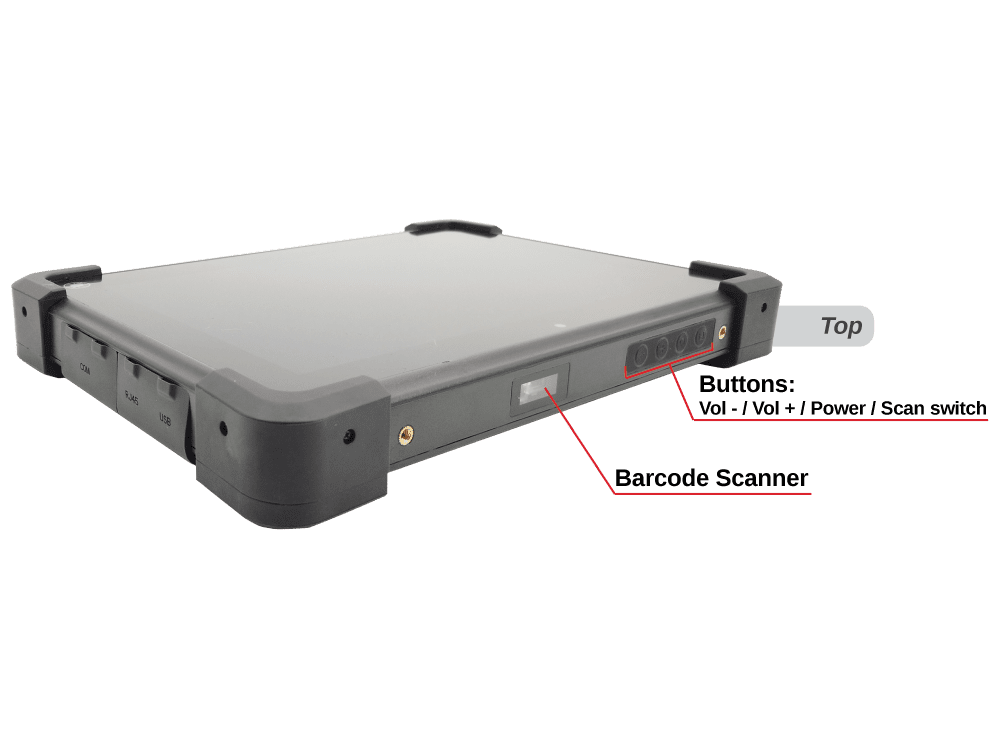

Barcode Scanner Specifications (N4680)

Product Name Honeywell N4680 Decoded 2D Scan Engine
Sensor 640×480 CMOS, 60 frames per second
Illumination Waveleng Warm white lED with CCT 3000K
Aiming Wavelength 630nm Red LED
Scan Angle Roll: 360°, Pitch: ±50°, Skew: ±50°
Field of View Horizontal ±20°, Vertical ±15
Motion Tolerance 6 m/s
Maximum image capture rate 120 frames per second
Supported Symbologies 1D, 2D barcodes, OCR, Poorly printed & on-screen bar codes
Typical Depth of Field C39   |  36mm – 747mm (5-10-20 mils
100% UPC-A  |  46mm – 390mm (13 mils)
C128  |  33mm – 598mm (5-10-20 mils)
PDF417  |  42mm – 490mm (7-10-20 mils)
QR-Code  |  40mm – 367mm (7-20 mils)
Data Matrix  |  40mm – 182mm (10 mils

Camera Specifications (front & back)

Camera Front (screen side) Back
Pixels 2MP (200W) 5MP (500W)
Pixel Size 1.75*1.75um 1.4*1.4um
Image Resolution 1600×1200 2592×1944
Image Transfer Rate 30 frames/sec 15 frames/sec
Lens Size 1/5 inch 1/4 inch
Optical Field of View 60° 73°
Glass finish (in front of lens) Polished glass
Output Formats RAW RGB, RGB 565/555/444, CCIR656 YUV422/420, YCbCr422, and compression

OPTIONAL (not included in standard version) | GPS Specifications (UB-118)

Product Name UB-118
Chipset High performance BD2/GPS chipset
Frequency GPS L1 1575.42 MHz / BD B11561.098MHz
Power Consumption 100mW
TTFF (Time to first fix) Hot start: 1s | Cold start: 32s
Accuracy (position) Autonomous <2.5m RMS | DGNSS <1m RMS
Accuracy (velocity) GPS(+BDS) 0.1m/s RMS | BDS 0.2m/s RMS
Accuracy (time) 100ns
Sensitivity (acquisition) BDS -145dBm | GPS -147dBm
Sensitivity (tracking) BDS -160dBm | GPS -162dBm
Protocol NMEA 0183 (compatible with BDS)
Maximum altitude < 50,000 meter
Maximum velocity < 500 m/s
Maximum acceleration < 4G

—Optional Accessories—

Standard Tablet Docking Station
Capacitive Touch Stylus (download separate touch firmware – www.faytech.com/downloads/)
Capacitive Touch Stylus Holder
High Capacity Battery

Downloads

Acrobat Reader for PDFs Download from external page
3D model Download 3D model (PDF)
Datasheet Download Datasheet (PDF)
Short-Manual Download Short-Manual (PDF)
Apollo Lake Mainboard Drivers (Windows) Download ALMD-WIN (RAR) | Online Rar to ZIP
