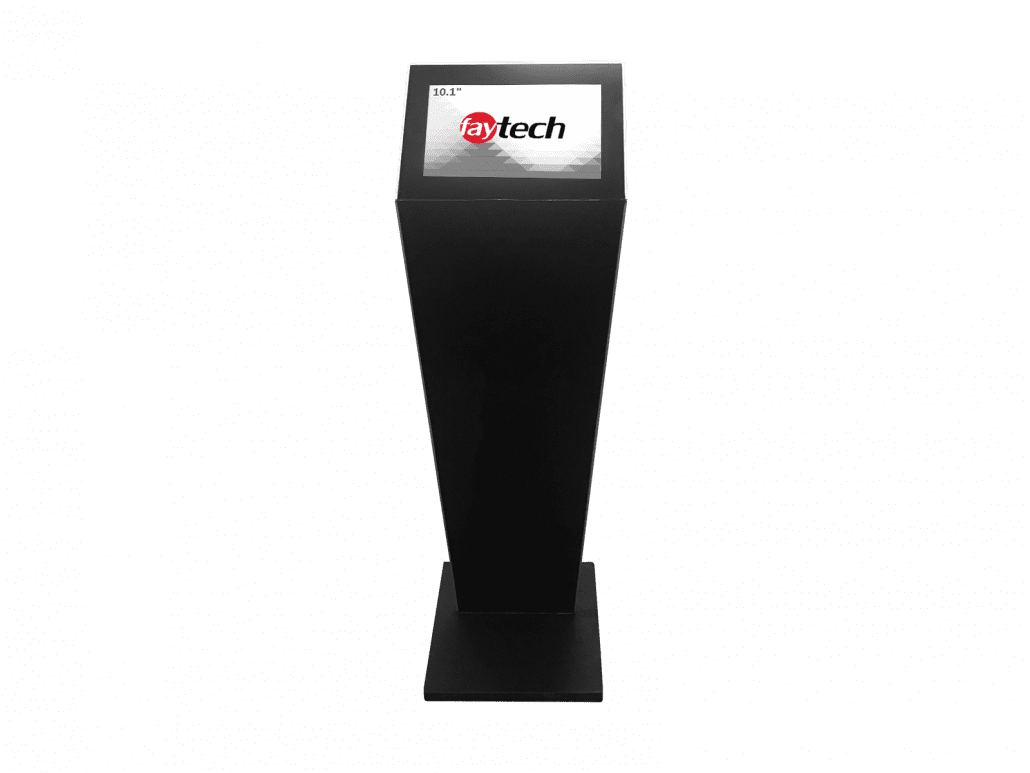

10.1″ Embedded Touch Kiosk (ARM V40)

This Embedded Kiosk is the perfect solution for any occasion in the field of Point of sales (POS), information display or digital signage. Whether you wish to place it next to the brand new car in your store as information display, next to one of your highly promoted cosmetic products or at the entrance of your company building, this is the perfect solution for anyone who requires a slim, easy-to-operate and modern looking kiosk!

Powered by the powerful Embedded V40 Mainboard with QuadCore CPU, Mali400MP2 graphics chipset and various connectors. The Kiosk is equipped with 1G DDR3 RAM, 8G flash memory and includes a SATA connector as well as SD card slot for further storage expansion. As for network connection, the device is already integrated with Wi-Fi.

The touch features capacitive 10-finger multitouch panels, Anti-glare chemical etched treatment and optionally bonded to the LED backlighting panels, backed by faytech’s warranty for pixel accuracy (A+ quality).

Customization options are always possible, this includes change of connectors, color, added peripherals or any other customization.

  • Allwinner® V40 Cortex™ A7 QuadCore 1GHz Processor
  • 1 GB DDR3 RAM & 8 GB EMMC FLASH
  • Complete glass surface of the pedestal front
  • Android 6 pre-installed
  • Optically bonded Touch Panel to LCD Panel
  • Straight out-of-the-box working Embedded Kiosk
  • 10-Finger-Multi Touch Capacitive Touch Panel
  • 2 years guarantee (24/7 usage)

Request a Quote
SKU: 10.1″ Embedded Touch Kiosk (ARM V40) Categories: , , Brand:

Description

Product Details

Model number FT101V40KCAPOB
Global article code 20205002554
European article code 1010501377
EAN number

IP Rating

IP 65 front / IP40 back

PC System

CPU Allwinner® V40 QuadCore
Chipset Cortex A7
GPU Graphics ARM® Mali400 Mp2 Complies with OpenGL ES 2.0/1.1
Memory <1GB DDR3
Storage 8GB EMMC Flash
Network 10/100Mbit Network; W-LAN
OS Android 6

LCD Panel

Screen diagonal 10.1″ / 25.6 cm
Display active screen size 21.70 cm x 13.60 cm (8.543 in x 5.354 in)
Aspect ratio 16:10
Physical resolution 1280×800 px
Maximum showable resolution 1920×1200 px
Brightness 350 (cd/m²)
Contrast 700:1
Typical reaction time Tr/ Tf 10/15 (ms)
Visual angle horizontal/vertical 170/170 (°)
Backlight LED
Backlight lifetime 20,000 (hours)

Touch Panel

Touch technology Projected Capacitive 10-point Multitouch
Available touch panel drivers Windows
Linux
Mac
Android
Touch lifetime Unlimited
Surface hardness 7H
Surface treatment Anti-glare (chemical etching)
Glass strengthening Chemically Strengthened

Operation/Mechanical

Operating temperature -10 °C ~ +60 °C (14 °F ~ 140 °F)
Humidity range 10% – 90% RH
Net weight 28.50 kg / 62.831 lb
Gross weight (incl. cartonage) 32.00 kg / 70.547 lb
Housing material Aluminum
Housing sizes (with stand) 300.0 mm x 300.0 mm x 1061.2 mm (11.81 in x 11.81 in x 41.77 in)

Power

Power supply 100-240V ACDC active switching; 12V DC-Out
Working power 8~18 V
Power consumption 11 W
Standby power 1 W

Downloads

Acrobat Reader for PDFs Download from external page
3D model Download 3D model (PDF)
Datasheet Download Datasheet (PDF)
Capacitive touch drivers (w/o Linux) Download CTD (RAR) | Online Rar to ZIP
Capacitive touch drivers Linux Download CTDL (deb)
WiFi driver Download WiFi (RAR) | Online Rar to ZIP
