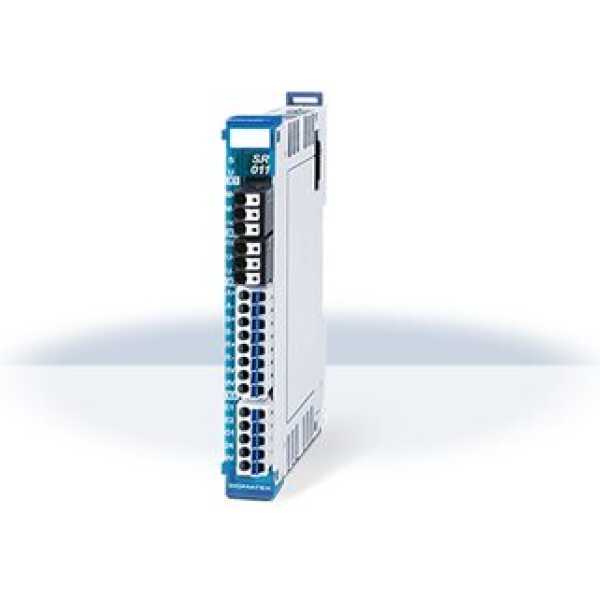

SR 011 – DC Motor Output Stage
-
- DC motor output stage (+50 V DC/5 A)
- 1 incremental encoder input switchable RS422/TTL
- 2 enable inputs +24 V/3 mA/0.5 ms with STO function (not EG type tested)
- 1 digital output +24 V/0.5 A/short-circuit protected
- For controlling a DC brush motor
For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
Description
-
- DC motor output stage (+50 V DC/5 A)
- 1 incremental encoder input switchable RS422/TTL
- 2 enable inputs +24 V/3 mA/0.5 ms with STO function (not EG type tested)
- 1 digital output +24 V/0.5 A/short-circuit protected
- For controlling a DC brush motor
For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
Technical Data
Performance Data |
|
| Supply voltage | +18-55 V DC |
| Bus supply voltage | +24 V DC |
| Current consumption of voltage supply | maximum 5 A |
Digital Inputs |
|
| Type | Enable |
| Number | 2 |
| Input voltage | +24 V DC (+18-30 V DC) |
| Input current | 3 mA at +24 V |
| Input delay | typically 0.5 ms |
Digital Outputs |
|
| Number | 1 |
| Short-circuit proof, current limited | Yes |
| Max. load current/channel | 0.5 A |
| Output voltage | +24 V DC (+18-30 V DC) |
| Max. Output current | 0.6 A |
Power Supply |
|
| Number | 1 |
| Type | +24 V DC |
Incremental Encoder Input |
|
| Number | 1 |
| Input signals | Incremental encoder signals RS422 (A, /A, B, /B, R, /R)
RS422 signal (120 Ω termination) Incremental encoder signal TTL (A, B, R) TTL level (1200 Ω Pull-UP) |
| Input frequency | maximum 125 kHz |
| Counter frequency | maximum 500 kHz |
| Resolution | 16 bits |
| Signal analysis | 4-port |
| Power supply | +5 V/0.2 A short-circuit proof |
Regen Resistor |
|
| Type | external power resistor |
| Output | GND switching |
| Max. Current | 6 A |
Mechanical Features |
|
| Dimensions | 12.5 x 104 x 72 mm (W x H x D) |
| Protection type | IP20 |
Article Number/Certification |
|
| Article number | 20-029-011 |
