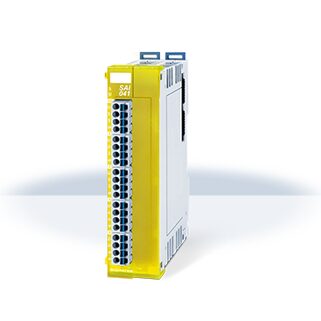

SAI 041 – Safety Analog Input Module Current
-
- 4 safe analog current inputs
- SIL 3/PL e, Cat. 4
The S-DIAS safety analog input module provides the values of four analog current inputs from the Safe CPU (Safety CPU)
For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
Description
-
- 4 safe analog current inputs
- SIL 3/PL e, Cat. 4
The S-DIAS safety analog input module provides the values of four analog current inputs from the Safe CPU (Safety CPU)
For the S-DIAS system, EPLAN Macros are available for simple integration into the control cabinet.
Technical Data
Analog Inputs |
|
| Type | Current |
| Number | 4 |
| Resolution | 16 bits |
| Measurement range | 4-20 mA |
| Conversion time for all channels | 1 ms |
| Cable break monitor | Yes |
Mechanical Features |
|
| Dimensions | 25 x 104 x 72 mm (W x H x D) |
| Protection type | IP20 |
Article Number/Certification |
|
| Article number | 20-897-041 |
| Standardization/certification | SIL 3 according to EN 62061 PL e, Cat. 4 according to EN ISO 13849-1/-2 |
