System

CPU

Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W

L2 Cache

1.5MB

System Chipset

Integrated with Intel® SoC

Memory

DDR4L 3200MHz 4GB, MAX 32GB

Harddisk

1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5″ SATA

Graphics

Intel® UHD Graphics for 10th Gen Intel® Processors

Network

Intel® 225-V GbE LAN

Audio

Realtek ACL897 Audio controller

TPM

TPM 2.0

Watchdog Timer

Software Programmable Supports 1~255 sec. System Reset

Operation System

Windows 10 / 11， Linux, Ubuntu

I/O

VIDEO

1 x H-DMI

LAN

3 x LAN （10/100/1000/2500 Mbps）

USB

4 x USB 3.0

COM

2 x RS-232 / 422 / 485

Audio

1x Audio_out & Mic_in

Wireless Network

Optional（WiFi / Bluetooth / 4G / 5G )

Display

LCD Size

10.4″ ( 4:3 )

Resolution

800 x 600 / 1024 x 768 Optional

Brightness (cd/m²)

350 cd/m2

Contrast Ratio

800:1

Backlight MTBF

30000 Hr (min.)

Viewing Angle

80 / 80 / 65 / 75 (CR≥10) ( L / R / U / D )

Touch screen

Touch Type

5 Wire Resistive touch

Surface Hardness

≥3H

Power

Power Adapter

1 x Optional AC/DC 12V/5A ，60W

Power Mode

Support AT, ATX Mode

Power Input

2-pin Terminal Block Connector with Power Input 9~36VDC

Power Protection

OVP (Over Voltage Protection) / OCP (Over Current Protection) / RPP（Reverse Polarity  Protection）

Power Consumption

≦30W

Physical

Material

Aluminum alloy panel, anodized treatment

Mounting

Stand / Wall / VESA / Panel

Dimension (W x H x D）

275 x 222 x 58 mm

Cut-out Size

263 x 210 mm

Packing Size

360 x 180 x 320 mm

Weight (Net)

2.5 KG

Environment

Operating Temperature

-20~70°C  ( -4~158°F )

Storage Temperature

-30~80°C (-22~176°F)

Relative Humidity

5%~95%@40°C, non-condensing

Vibration Protection

1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

IP Level

Front Panel IP65

EMC

CE, FCC，ROHS

ORDERING INFORMATION

AVAILABLE MODELS

DESCRIPTION

PPC-C010SAR

10.4”TFT LCD / Resolution 800x600 / 1024×768(Optional) / Intel Celeron J6412 2.0GHz / Resistive Touch / 3x Intel®225-V GbE LAN / 2xCOM（RS232/422/485）4xUSB3.0 / TPM2.0 / DC IN 9V~36V(OVP / OCP / RPP)

CONFIGURATION

DESCRIPTION

Memory

DDR4L 3200MHz SO-DIMM.4GB/32GB capacity

Harddisk

M.2/2.5″ SATA SSD：120G/250G/500G/2TB optional

WiFi

Wifi Bluetooth Combo Module, with antenna

4G/5G

Full Netcom 4G/5G/LTE module, with antenna

PACKING LIST

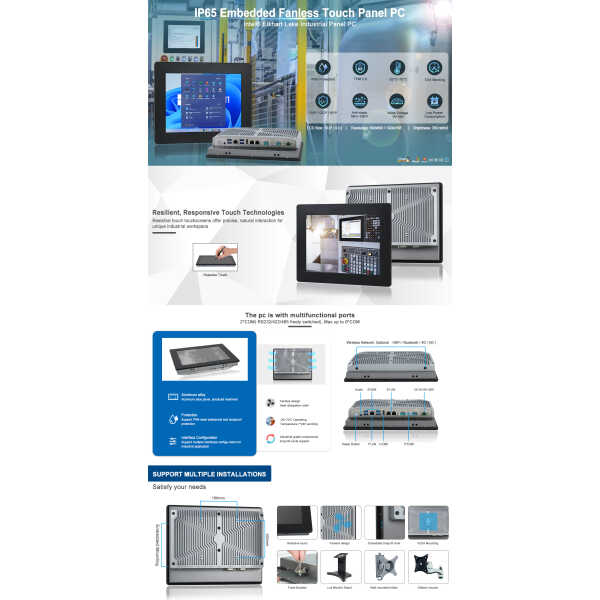

10.4”Industrial Panel PC

1x CD-ROM

8x Embedded Buckles

1x Power Adaptor
