System

CPU

Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W

L2 Cache

1.5MB

System Chipset

Integrated with Intel® SoC

Memory

DDR4L 3200MHz 4GB, MAX 32GB

Harddisk

1 x M.2 120G SSD ( 250G / 500G / 2TB SSD)

Graphics

Intel® UHD Graphics for 10th Gen Intel® Processors

Network

Intel® 226-V GbE LAN

Audio

Realtek ACL897 Audio controller

TPM

TPM 2.0

Watchdog Timer

Software Programmable Supports 1~255 sec. System Reset

Operation System

Windows 10 / 11， Linux, Ubuntu

I/O

VIDEO

1 x H-DMI / 1 x DP

LAN

2 x LAN ( 10/100/1000/2500 Mbps )

USB

4 x USB 3.0

COM

1 x RS-232 / 485 ( optional )

Audio

1x Audio_out & Mic_in

Wireless Network

Optional（WiFi / Bluetooth / 4G / 5G )

Expansion

M.2

1*M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT )

1*M.2 ( Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G )

2*M.2 ( Key-M, 2280, NVMe/ SATA, SSD )

SIM Socket

1x SIM Socket

Display

LCD Size

7″ ( 16:9 )

Resolution

1024 x 600

Brightness (cd/m²)

500 cd/m2

Contrast Ratio

800:1

Backlight MTBF

30000 Hr (min.)

Viewing Angle

80 / 80 / 60 / 70 (CR≥10) ( L / R / U / D )

Touch screen

Touch Type

10 Point PCAP

Surface Hardness

≥7H

Power

Power Adapter

1 x Optional AC/DC 12V/5A ，60W

Power Mode

Support AT, ATX Mode

Power Input

2-pin Terminal Block Connector with Power Input 9~36VDC

Power Protection

OVP (Over Voltage Protection) / OCP (Over Current Protection) / RPP（Reverse Polarity  Protection）

Power Consumption

≦35W

Physical

Material

Aluminum alloy panel, anodized treatment

Mounting

Stand / Wall / VESA / Panel

Dimension (W x H x D）

220 x 152 x 50 mm

Cut-out Size

208 x 143 mm

Packing Size

360 x 180 x 320 mm

Weight (Net)

2.0 KG

Environment

Operating Temperature

-20~70°C  ( -4~158°F )

Storage Temperature

-30~80°C (-22~176°F)

Relative Humidity

5%~95%@40°C, non-condensing

Vibration Protection

1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

IP Level

Front Panel IP66

EMC

CE, FCC，KC ，Class A，ROHS ，IEC / EN 62368-1

ORDERING INFORMATION

AVAILABLE MODELS

DESCRIPTION

PPC-C007WAC

7″ FHD LCD / Resolution 1024 x 600 / Intel® Elkhart Lake Celeron J6412 2.0GHz / PCAP Touch / 1 x H-DMI / 1 x DP / 2 x LAN / 1 x RS-232 / 485 ( optional ) / 4 x USB3.0 / TPM2.0 / DC IN 9V~36V ( OVP / OCP / RPP )

CONFIGURATION

DESCRIPTION

Memory

RAM：DDR4L 3200MHz SO-DIMM.4GB/32GB capacity

Harddisk

M.2/SATASSD：120G/250G/500G/2TB optional

WiFi

Wifi Bluetooth Combo Module, with antenna

4G/5G

Full Netcom 4G/5G/LTE module, with antenna

PACKING LIST

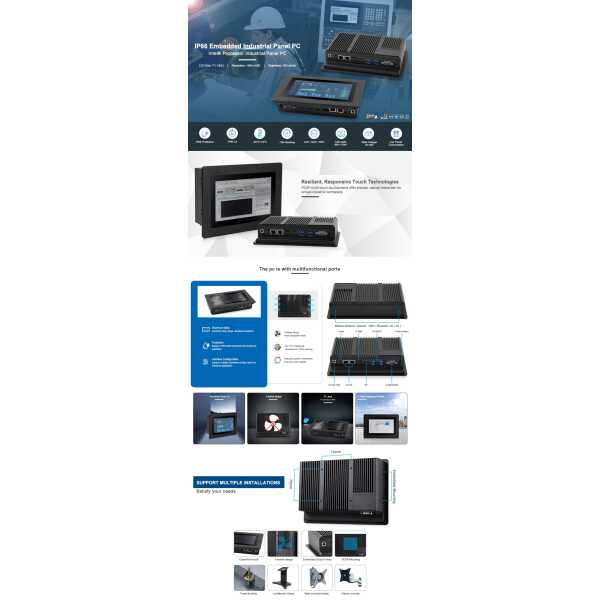

7“ Industrial Panel PC

1 x CD-ROM

1 x 60W PSU (Power Supply)

1 x Power cable & plug

4 x Embedded Buckles
