Description
Product Details
| Model number | FT116TMCAPOFHBOB |
| Global article code | 3030510477 |
| European article code | 1010502418 |
| EAN number | 6920734011605 |
IP Rating
| IP 65 front / IP40 back |
LCD Panel

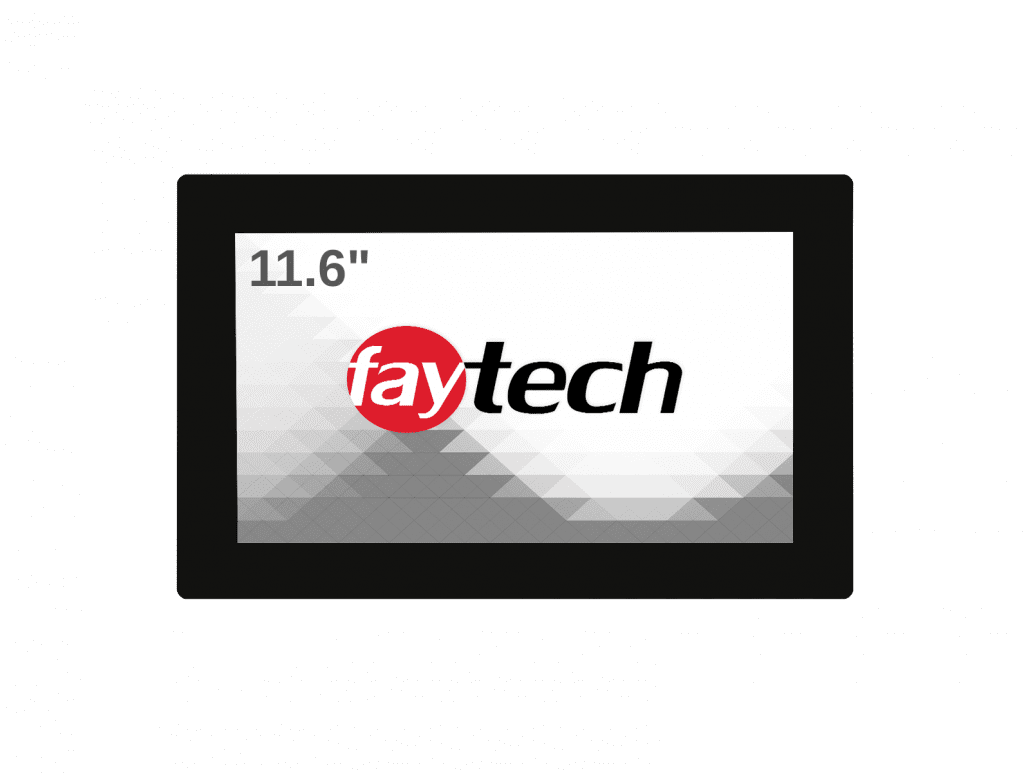

| Screen diagonal | 11.6″ / 29.4 cm |
| Display active screen size | 25.63 cm x 14.42 cm (10.09 in x 5.677 in) |
| Aspect ratio | 16:9 |
| Physical resolution | 1920×1080 px |
| Maximum showable resolution | 1920×1080 px |
| Brightness | 1000 (cd/m²) |
| Contrast | 800:1 |
| Typical reaction time Tr/ Tf | 14/11 (ms) |
| Visual angle horizontal/vertical | 178/178 (°) |
| Backlight | LED |
| Backlight lifetime | 100,000 (hours) |
Touch Panel
| Touch technology | Projected Capacitive 10-point Multitouch |
| Available touch panel drivers | Windows Linux Mac Android |
| Touch lifetime | Unlimited |
| Surface hardness | 7H |
| Surface treatment | Anti-glare (chemical etching) |
| Glass strengthening | Tempered |
Operation/Mechanical
| Operating temperature | -10 °C ~ +60 °C (14 °F ~ 140 °F) |
| Humidity range | 10% – 90% RH |
| Net weight | 2.00 kg / 4.4092 lb |
| Gross weight (incl. cartonage) | 4.00 kg / 8.8184 lb |
| Housing material | Aluminum |
| Housing sizes | 297.0 mm x 194.0 mm x 39.2 mm (11.69 in x 7.637 in x 1.543 in) |
| Clamp support | Yes |
| cut-out for clamp supports (L X H) | 283.0 mm x 180.0 mm (11.14 in x 7.086 in) |
| Amount of clamps required | 4 |
| Mounting | VESA 100 |
Power
| Power indicator | Green LED |
| Power supply | 100-240V ACDC active switching; 12V DC-Out |
| Working power | 12 V |
| Power consumption | 12 W |
| Standby power | 1 W |

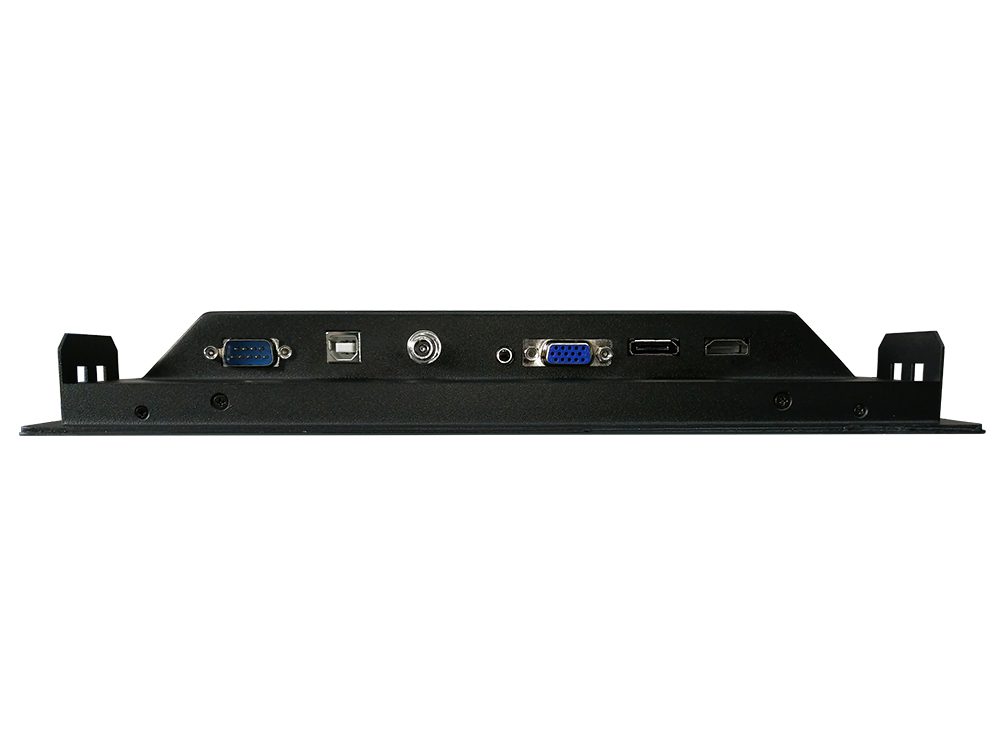

External Connectors
| Video | 1x HDMI 1.3 (incl. HDCP) 1x VGA 1x DP |
| Audio | 1x PC-Audio |
| Touch Connectors | 1x USB |
| Other Connectors | 1x 12V DC-In (screwable) |
Included in the delivery
| Power Supply (see Power section) Short Installation Manual HDMI Cable USB-Touch Cable |
