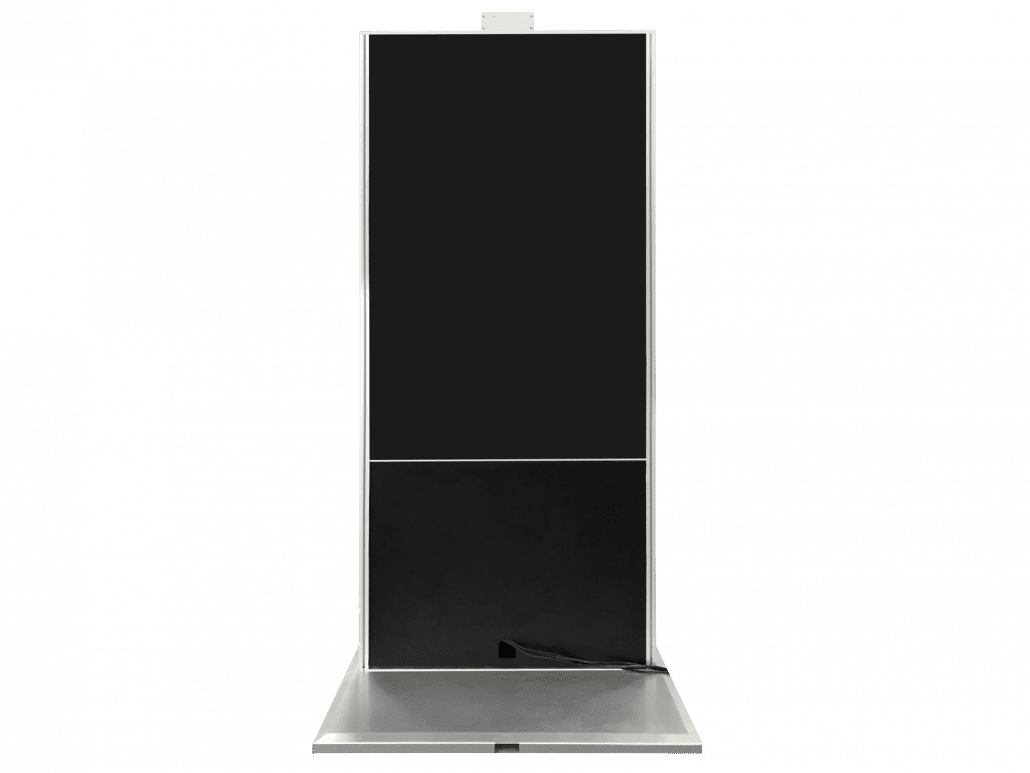

55″ Capacitive Touch Monitor Kiosk (as project)

*Available on project-basis with MOQ of 100 pieces, contact us for more information

faytech’s Touch Monitor Kiosks are manufactured to feature Full HD industrial 24/7 LCD panels for continuous use with energy-efficient LED backlight technology. All models come with 10-finger multitouch capacitive touch panels and stylish appearance. Each kiosk has an extra wide viewing angle and anti-glare surface treatment (chemical etched), A+ quality industrial LCD panels and glass front reaching MosH 7. This Kiosk has the most common connectors available, such as VGA, DVI-D, HDMI, PC-Audio, USB-Touch and DC-In.

faytech’s Touch Kiosks are the interactive solution for digital signage, classrooms, meeting rooms, shopping malls, hotels, trade shows and many other areas.

The series offers a wide range of customizable features, e.g. an installed industrial PC, credit card payment-terminal holder, printer, flyer holder, RFID scanner, barcode scanner, camera, different colors, and many more!

  • Reinforced front glass with anti-glare (chemical etched)
  • 10-Finger-Multi Touch Capacitive Touch Panel
  • A+ quality industrial LCD panels
  • Straight out-of-the-box working Monitor Kiosk
  • 2 years guarantee (24/7 usage)
  • Camera on top (optional)
  • Installed industrial PC inside (optional)

Request a Quote
SKU: 55″ Capacitive Touch Monitor Kiosk (as project) Categories: , , Brand:

Description

Product Details

Model number FT55TMKCAPOB
Global article code 20205005980
European article code 1010501160
EAN number 6920734055111

IP Rating

IP 65 front / IP40 back

LCD Panel

Screen diagonal 55″ / 139. cm
Display active screen size 121.00 cm x 68.00 cm (47.63 in x 26.77 in)
Aspect ratio 16:9
Physical resolution 1920×1080 px
Maximum showable resolution 1920×1200 px
Brightness 350 (cd/m²)
Contrast 1400:1
Typical reaction time Tr/ Tf 6/8 (ms)
Visual angle horizontal/vertical 178/178 (°)
Backlight LED
Backlight lifetime 50,000 (hours)

Touch Panel

Touch technology Projected Capacitive 10-point Multitouch
Available touch panel drivers Windows
Linux
Mac
Android
Touch lifetime Unlimited
Surface hardness 7H
Surface treatment Anti-glare (chemical etching)
Glass strengthening Chemically Strengthened

Operation/Mechanical

Operating temperature -10 °C ~ +60 °C (14 °F ~ 140 °F)
Humidity range 10% – 90% RH
Net weight 81.00 kg / 178.57 lb
Gross weight (incl. cartonage) 169.00 kg / 372.58 lb
Housing material Aluminum
Housing sizes (without stand) 873.2 mm x 60.0 mm x 1952.0 mm (34.37 in x 2.362 in x 76.85 in)

Power

Power supply 100-240V ACDC active switching; 24V DC-Out
Working power 24 V
Power consumption 126 W
Standby power 1 W

External Connectors

Video 1x HDMI 1.3 (incl. HDCP)
1x DVI-D
1x VGA
Audio 1x PC-Audio
Touch Connectors 1x USB
Other Connectors 1x 24V DC-In

Included in the delivery

  1. Power Supply (see Power section)
  2. Cables – USB Touch, Audio Cable, HDMI
  3. Stable Base
  4. Flight Case

Flightcase

Measurements 2106.0 cm x 210.0 cm x 1041.0 cm (829.1 in x 82.67 in x 409.8 in)
Weight 80 kg / 176.36 lb
Materials High quality black varnished wood
Aluminum joints and edges
ABS Plastic handles and wheels

Downloads

Acrobat Reader for PDFs Download from external page
3D model Download 3D model (PDF)
Datasheet Download Datasheet (PDF)
Capacitive touch drivers (w/o Linux) Download CTD (RAR) | Online Rar to ZIP
Capacitive touch drivers Linux Download CTDL (deb)
